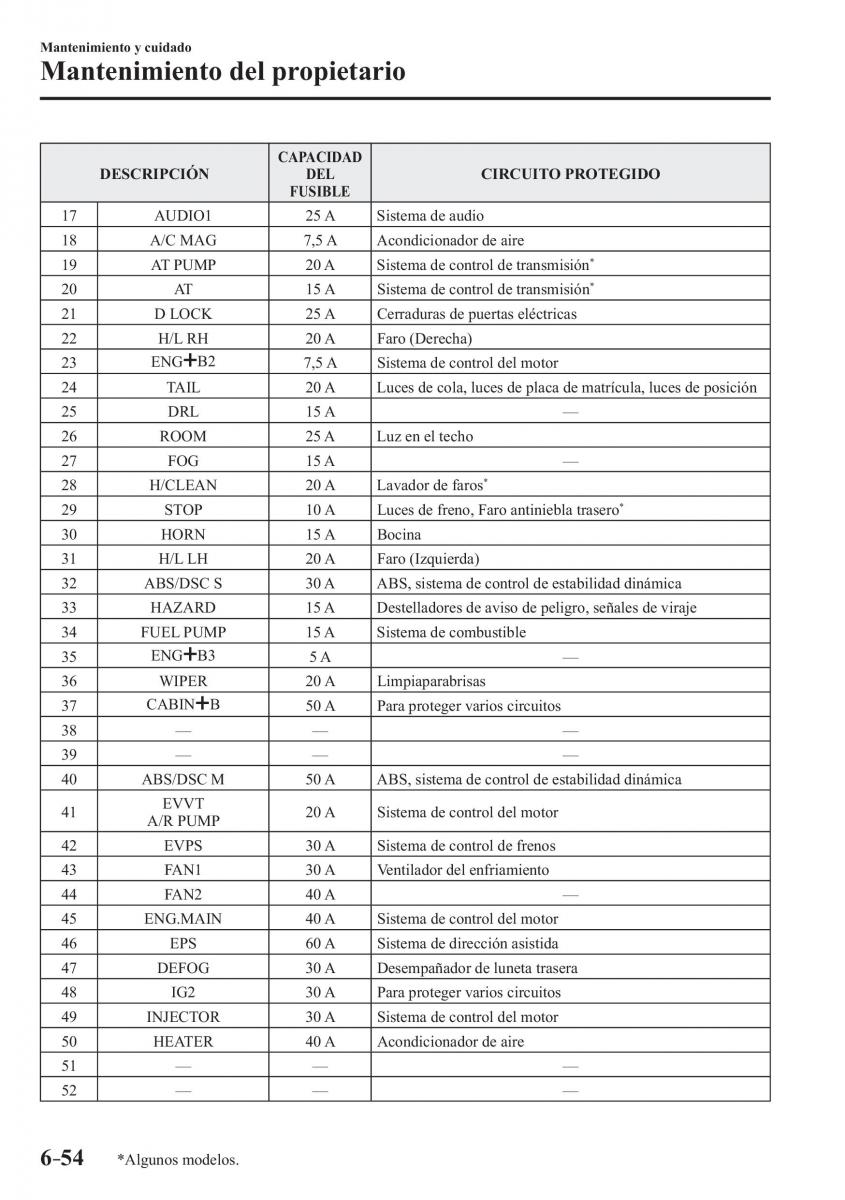

Mantenimiento y cuidado
Mantenimiento del propietario
CAPACIDAD
DESCRIPCIÓN DEL CIRCUITO PROTEGIDO
FUSIBLE
17 AUDIO1 25 A Sistema de audio
18 MAG A/C 7,5 A Acondicionador de aire
19 T A PUMP 20 A Sistema de control de transmisión *
20 T A 15 A Sistema de control de transmisión *
21 LOCK D 25 A Cerraduras de puertas eléctricas
22 H/LRH 20 A Faro (Derecha)
23 ENG B2 7,5 A Sistema de control del motor
24 T AIL 20 A Luces de cola, luces de placa de matrícula, luces de posición
25 DRL 15 A —
26 ROOM 25 A Luz en el techo
27 FOG 15 A —
28 H/CLEAN 20 A Lavador de faros *
29 OP ST 10 A Luces de freno, Faro antiniebla trasero *
30 HORN 15 A Bocina
31 H/LLH 20 A Faro (Izquierda)
32 ABS/DSC S 30 A ABS, sistema de control de estabilidad dinámica
33 HAZARD 15 A Destelladores de aviso de peligro, señales de viraje
34 FUEL PUMP 15 A Sistema de combustible
35 ENG B3 5 A —
36 WIPER 20 A Limpiaparabrisas
37 CABIN B 50 A Para proteger varios circuitos
38 — — —
39 — — —
40 ABS/DSC M 50 A ABS, sistema de control de estabilidad dinámica
41 EVVT 20 A Sistema de control del motor
PUMP A/R
42 EVPS 30 A Sistema de control de frenos
43 AN1 F 30 A Ventilador del enfriamiento
44 AN2 F 40 A —
45 ENG.MAIN 40 A Sistema de control del motor
46 EPS 60 A Sistema de dirección asistida
47 DEFOG 30 A Desempañador de luneta trasera
48 IG2 30 A Para proteger varios circuitos
49 INJECTOR 30 A Sistema de control del motor
50 HEATER 40 A Acondicionador de aire
51 — — —
52 — — —
6–54 *Algunos modelos.
.9@&741&@&EJUJPOJOEC
