text version of content this owner's manual page from owners manual to the vehicle Subaru XV, year of production 2011:

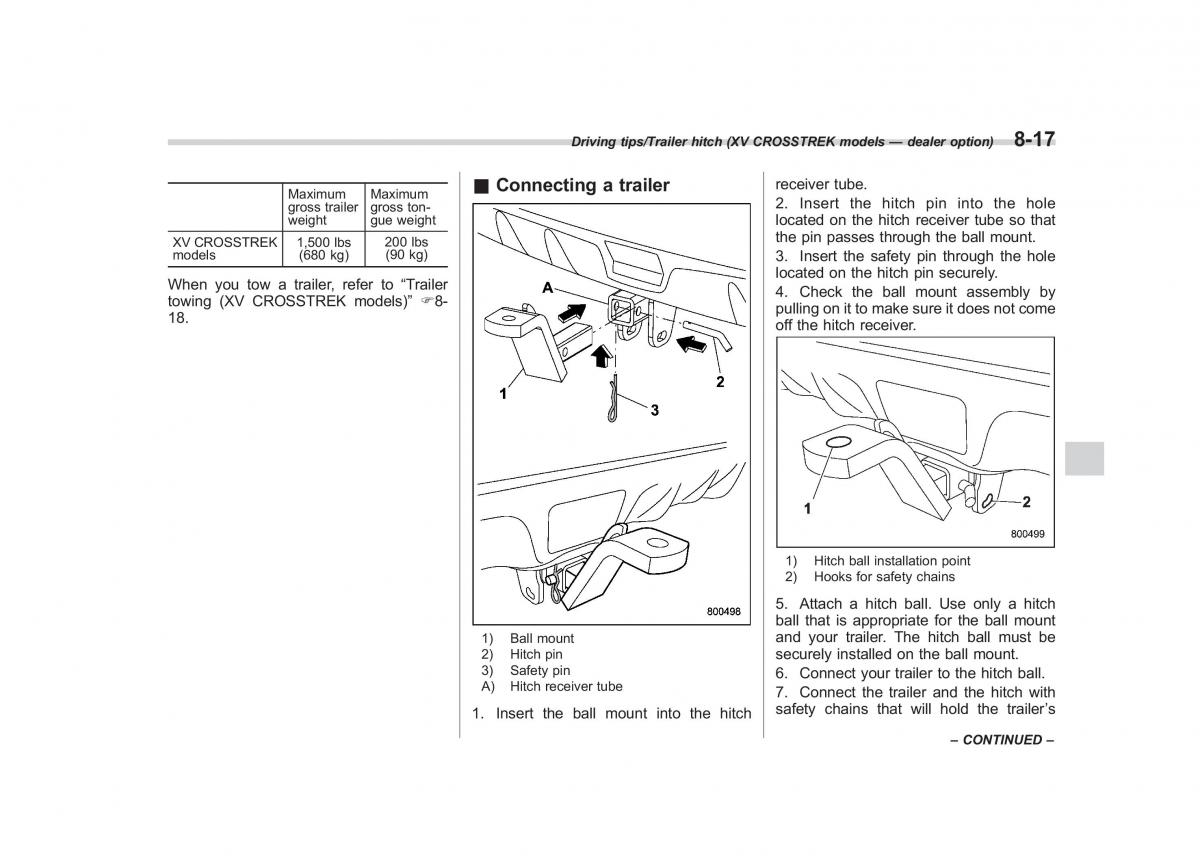

Driving tips/Trailer hitch (XV CROSSTREK models — dealer option)8-17 Maximum Maximum &Connecting a trailer receiver tube. gross trailergross ton- 2. Insert the hitch pin into the hole weight gue weight located on the hitch receiver tube so that XVCROSSTREK 1,500lbs 200 lbs the pin passes through the ball mount. models (680 kg) (90 kg) 3. Insert the safety pin through the hole located on the hitch pin securely. When you tow a trailer, refer to “Trailer 4. Check the ball mount assembly by towing (XV CROSSTREK models)” F8- pulling on it to make sure it does not come 18. off the hitch receiver. 1) Hitch ball installation point 2) Hooks for safety chains 5. Attach a hitch ball. Use only a hitch ball that is appropriate for the ball mount 1) Ball mount and your trailer. The hitch ball must be 2) Hitch pin securely installed on the ball mount. 3) Safety pin 6. Connect your trailer to the hitch ball. A) Hitch receiver tube 7. Connect the trailer and the hitch with 1. Insert the ball mount into the hitchsafety chains that will hold the trailer’s – CONTINUED –
