text version of content this owner's manual page from owners manual to the vehicle Hyundai Genesis, year of production 2013:

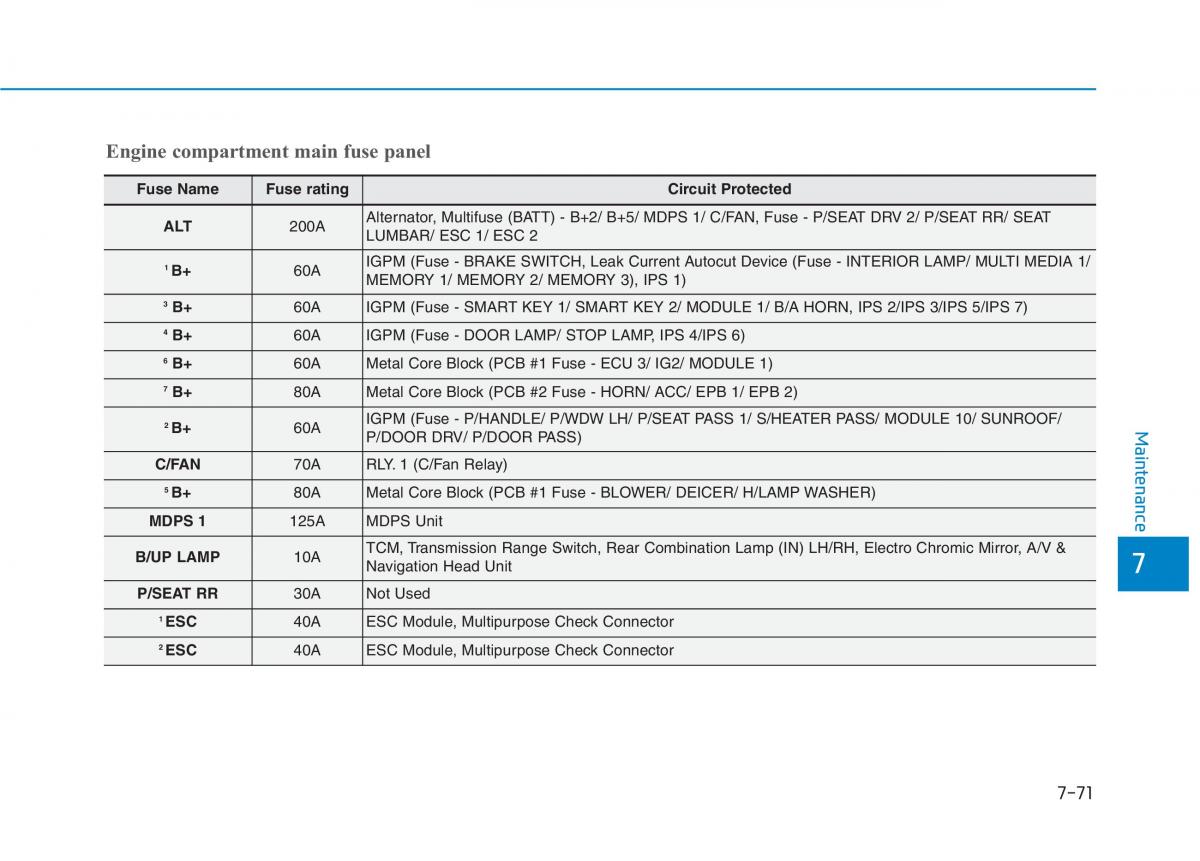

Engine compartment main fuse panel
Fuse Name Fuse rating Circuit Protected
ALT 200A Alternator, Multifuse (BATT) - B+2/ B+5/ MDPS 1/ C/FAN, Fuse - P/SEAT DRV 2/ P/SEAT RR/ SEAT
LUMBAR/ ESC 1/ ESC 2
1 B+ 60A IGPM (Fuse - BRAKE SWITCH, Leak Current Autocut Device (Fuse - INTERIOR LAMP/ MULTI MEDIA 1/
MEMORY 1/ MEMORY 2/ MEMORY 3), IPS 1)
3 B+ 60A IGPM (Fuse - SMART KEY 1/ SMART KEY 2/ MODULE 1/ B/A HORN, IPS 2/IPS 3/IPS 5/IPS 7)
4 B+ 60A IGPM (Fuse - DOOR LAMP/ STOP LAMP, IPS 4/IPS 6)
6 B+ 60A Metal Core Block (PCB #1 Fuse - ECU 3/ IG2/ MODULE 1)
7 B+ 80A Metal Core Block (PCB #2 Fuse - HORN/ ACC/ EPB 1/ EPB 2)
2 IGPM (Fuse - P/HANDLE/ P/WDW LH/ P/SEAT PASS 1/ S/HEATER PASS/ MODULE 10/ SUNROOF/
B+ 60A P/DOOR DRV/ P/DOOR PASS) Maintenance
C/FAN 70A RLY. 1 (C/Fan Relay)
5 B+ 80A Metal Core Block (PCB #1 Fuse - BLOWER/ DEICER/ H/LAMP WASHER)
MDPS 1 125A MDPS Unit
B/UP LAMP 10A TCM, Transmission Range Switch, Rear Combination Lamp (IN) LH/RH, Electro Chromic Mirror, A/V &
Navigation Head Unit 7
P/SEAT RR 30A Not Used
1 ESC 40A ESC Module, Multipurpose Check Connector
2 ESC 40A ESC Module, Multipurpose Check Connector
7-71
