Mazda6_8DQ8-EA-13L_Edition3 Page448
Friday, June 13 2014 6:23 PM
Black plate (448,1)
MaintenanceandCare
OwnerMaintenance

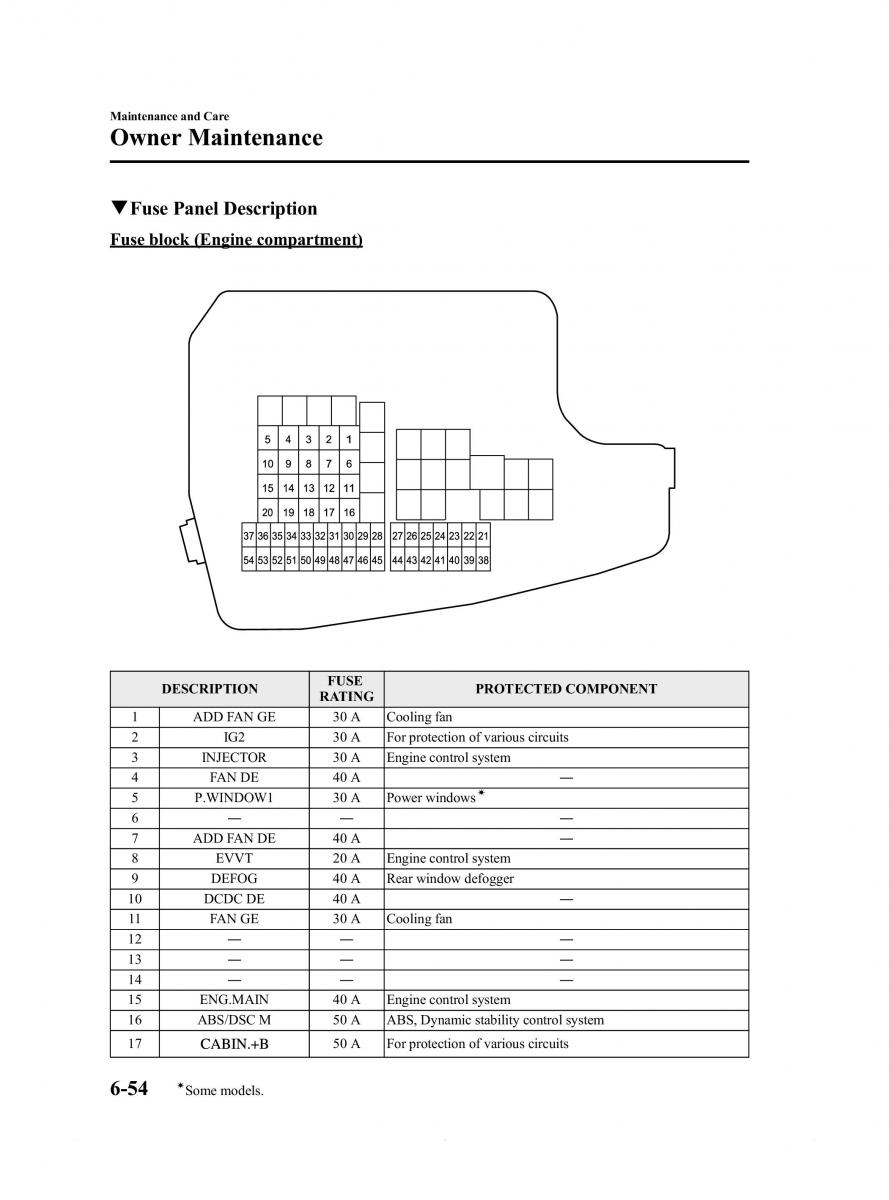

qFusePanelDescription
Fuse block (Engine compartment)
DESCRIPTION FUSE PROTECTEDCOMPONENT
RATING
1 ADDFANGE 30A Cooling fan
2 IG2 30A For protection of various circuits
3 INJECTOR 30A Engine control system
4 FANDE 40A ―
5 P.WINDOW1 30A Powerwindowsí
6 ―― ―
7 ADDFANDE 40A ―
8 EVVT 20A Engine control system
9 DEFOG 40A Rear window defogger
10 DCDCDE 40A ―
11 FANGE 30A Cooling fan
12 ―― ―
13 ―― ―
14 ―― ―
15 ENG.MAIN 40A Engine control system
16 ABS/DSCM 50A ABS,Dynamicstability control system
17 50A For protection of various circuits
í
6-54 Somemodels.
Form No.8DQ8-EA-13L
