text version of content this owner's manual page from owners manual to the vehicle KIA Picanto, year of production 2011:

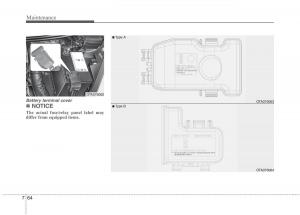

Maintenance
Symbol Fuse rating Protected Component
10A PCB Fuse & Relay Box (A/C Relay)
20A PCB Fuse & Relay Box (Head Lamp (LO) Relay)
1
FUEL 15A PCB Fuse & Relay Box (Fuel Pump #1 Relay)
PUMP
10A PCB Fuse & Relay Box (Horn Relay, Burglar Alarm Horn Relay)
2
FUEL PUMP
(FFV) 15A B3LA : PCB Fuse & Relay Box (Fuel Pump #2 Relay)
VACCUM PUMP
(EU K3 AT)
10A PCB Fuse & Relay Box (Head Lamp (HI) Relay)
20A Ignition coil, condensor
FUSE 15A PCB Fuse & Relay Box (Engine Control Relay, Fuel Pump #1 Relay,
(Projection Fuel Pump #2 Relay (F3LA)), Injector #1/#2/#3 (B3LA), PCM
head light type)
10A B3LA : PCM, PCB Fuse & Relay Box (Engine Control Relay)
10A TCM, Transaxle Range Switch, Rear Bumper Lamp, Instrument Cluster, BCM,
Back-Up Lamp LH/RH, Back-Up Lamp Switch
10A ECM, Front Wiper Motor, Multifunction Switch
10A Projection Lamp LH
10A ECM/TCM/PCM, PCB Fuse & Relay Box (Engine Control Relay)
10A Projection Lamp RH
PCB Fuse & Relay Box (Engine Control Relay, A/C Relay, A/C Relay, Cooling Fan Relay,
10A Start Relay), ECM/PCM, Canister Purge Control Valve, Oil Control Valve #1,
Oil Control Valve #2 (W/O F3LA), Camshaft Position Sensor #1,
Camshaft Position Sensor #2 (W/O F3LA), Variable Intake Solenoid Valve (B3LA)
767
