text version of content this owner's manual page from owners manual to the vehicle Hyundai Grandeur, year of production 2011:

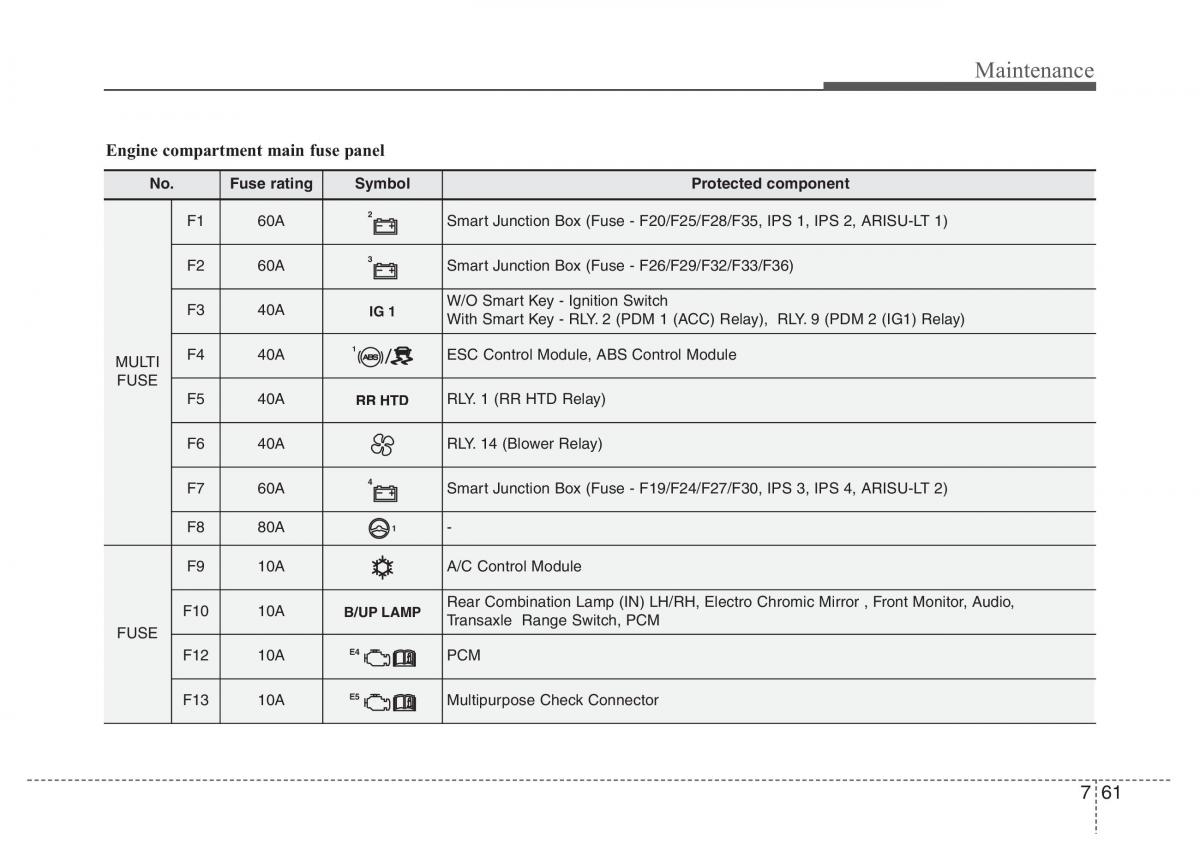

Maintenance Engine compartment main fuse panel No. Fuse rating Symbol Protected component F1 60A 2 Smart Junction Box (Fuse - F20/F25/F28/F35, IPS 1, IPS 2, ARISU-LT 1) F2 60A 3 Smart Junction Box (Fuse - F26/F29/F32/F33/F36) F3 40A IG 1 W/O Smart Key - Ignition Switch With Smart Key - RLY. 2 (PDM 1 (ACC) Relay), RLY. 9 (PDM 2 (IG1) Relay) F4 40A 1 ESC Control Module, ABS Control Module MULTI FUSE F5 40A RLY. 1 (RR HTD Relay) F6 40A RLY. 14 (Blower Relay) F7 60A 4 Smart Junction Box (Fuse - F19/F24/F27/F30, IPS 3, IPS 4, ARISU-LT 2) F8 80A 1 - F9 10A A/C Control Module F10 10A B/UP LAMP Rear Combination Lamp (IN) LH/RH, Electro Chromic Mirror , Front Monitor, Audio, FUSE Transaxle Range Switch, PCM F12 10A E4 PCM F13 10A E5 Multipurpose Check Connector 761
