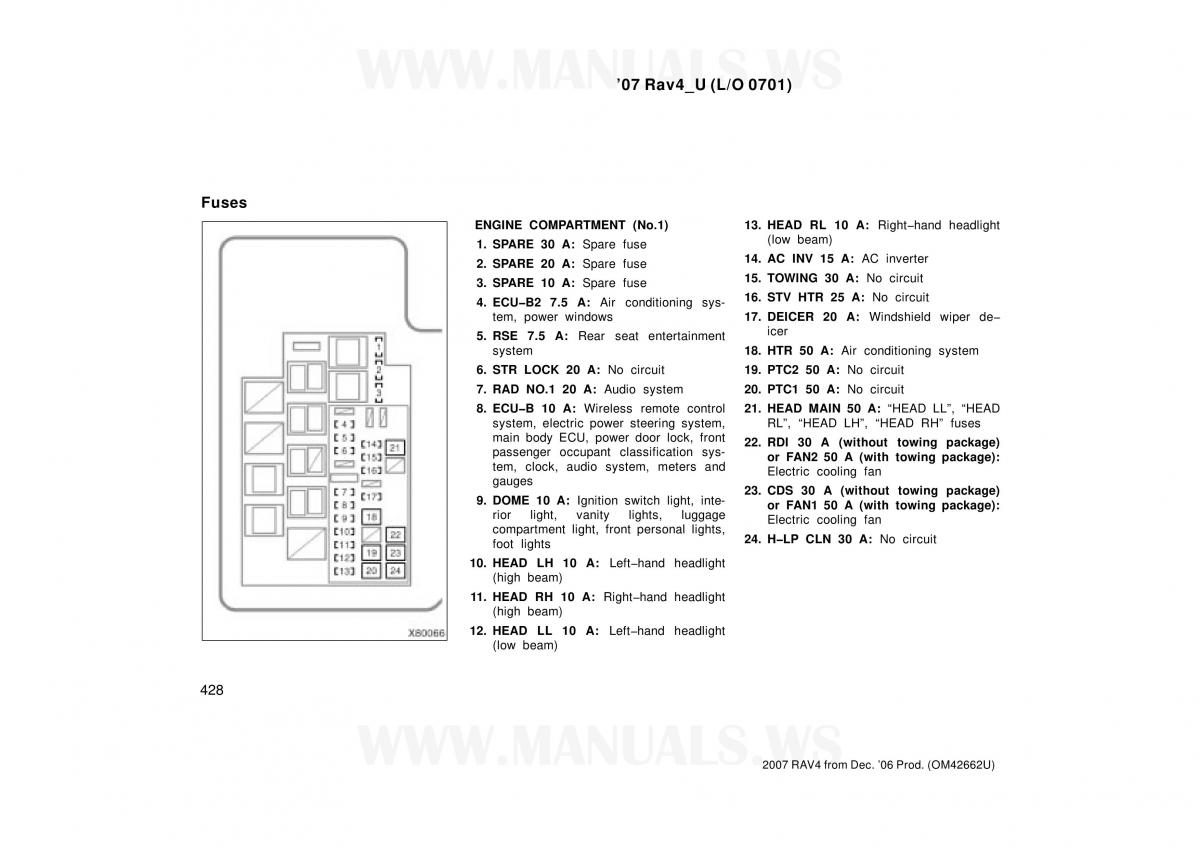

 ’07 Rav4_U (L/O 0701) Fuses ENGINE COMPARTMENT (No.1) 13. HEAD RL 10 A:Ri ght−hand headlight 1. SPARE 30 A:Spar e fuse (low beam) 14. AC INV 15 A:AC inverter 2. SPARE 20 A:Spar e fuse 3. SPARE 10 A:Spar e fuse 15. TOWING 30 A:No circuit 4. ECU−B2 7.5 A: Air conditioning sys- 16. STV HTR 25 A:No c ircuit tem, power windows 17. DEICER 20 A:W indshield wiper de− 5. RSE 7.5 A:Rear seat entertainmenticer system 18. HTR 50 A:Ai r conditioning system 6. STR LOCK 20 A:No circuit 19. PTC2 50 A:No circuit 7. RAD NO.1 20 A:Audi o system20. PTC1 50 A:No circuit 8. ECU−B 10 A:W ireless remote control 21. HEAD MAIN 50 A:“ HEAD LL”, “HEAD system, electric power steering system,RL”, “HEAD LH”, “HEAD RH” fuses main body ECU, power door lock, front passenger occupant classification sys- 22. RDI 30 A (without towing package) tem, clock, audio system, meters and or FAN2 50 A (with towing package): gauges Electric cooling fan 9. DOME 10 A:I gnition switch light, inte- 23. CDS 30 A (without towing package) or FAN1 50 A (with towing package): rior light, vanity lights, luggage Electric cooling fan compartment light, front personal lights, 24. H−LP CLN 30 A:No c ircuit foot lights 10. HEAD LH 10 A:Lef t−hand headlight (high beam) 11. HEAD RH 10 A:Ri ght−hand headlight (high beam) 12. HEAD LL 10 A:Lef t−hand headlight (low beam) 428



 2007 RAV4 from Dec. ’06 Prod. (OM42662U)
