owners manual Toyota Corolla

owners manual Toyota Corolla - year of production: 2013 - Toyota Corolla XI 11 E160 owners manual EN

Document: pdf (18.25 MB) 632 pages

all ratings: 0 average rating: 5

text version of content this owner's manual page from owners manual to the vehicle Toyota Corolla, year of production 2013:

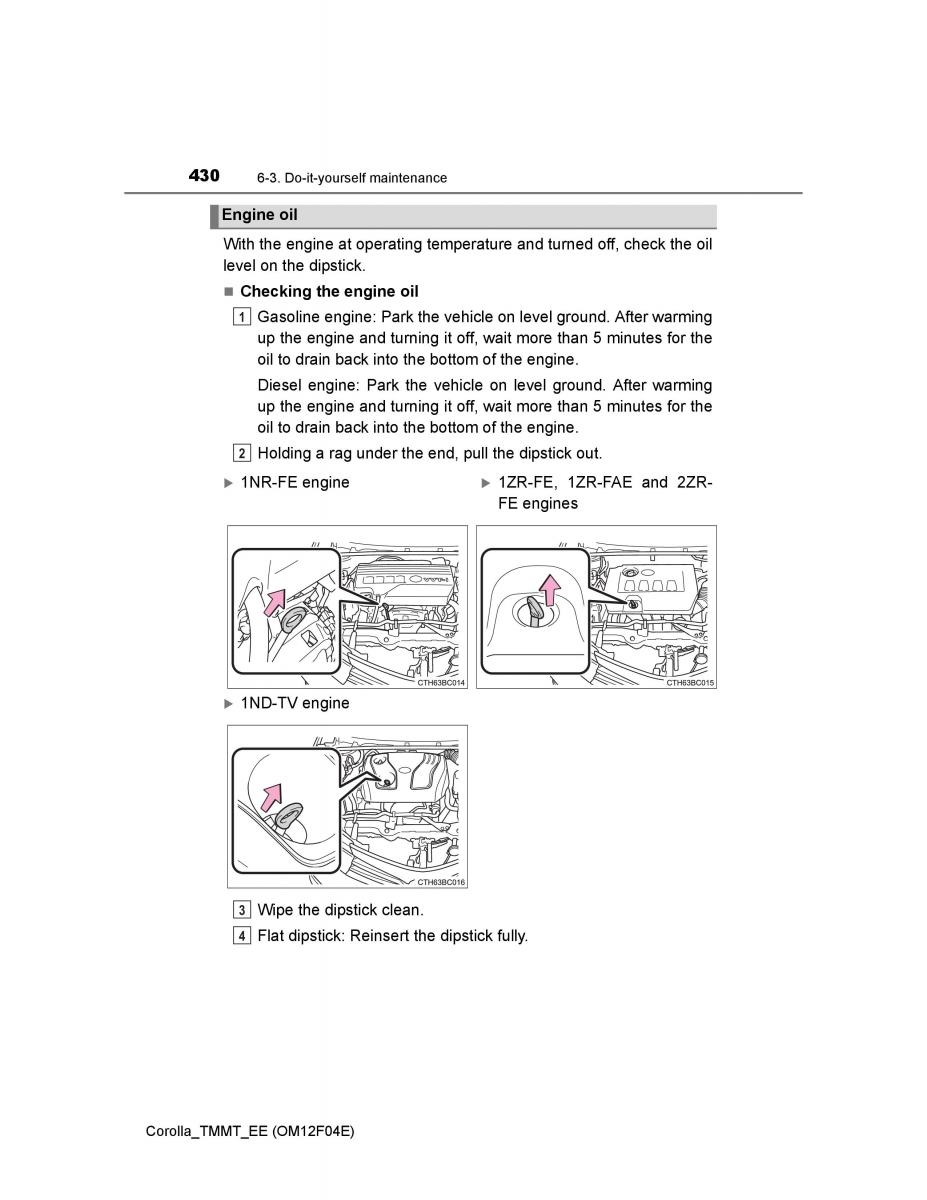

430 6-3. Do-it-yourself maintenance Engine oil With the engine at operating temperature and turned off, check the oil level on the dipstick.  Checking the engine oil 1 Gasoline engine: Park the vehicle on level ground. After warming up the engine and turning it off, wait more than 5 minutes for the oil to drain back into the bottom of the engine. Diesel engine: Park the vehicle on level ground. After warming up the engine and turning it off, wait more than 5 minutes for the oil to drain back into the bottom of the engine. 2 Holding a rag under the end, pull the dipstick out.  1NR-FE engine  1ZR-FE, 1ZR-FAE and 2ZR- FE engines  1ND-TV engine 3 Wipe the dipstick clean. 4 Flat dipstick: Reinsert the dipstick fully. Corolla_TMMT_EE (OM12F04E)
