owners manual Hyundai ix35

all ratings: 0 average rating: 5

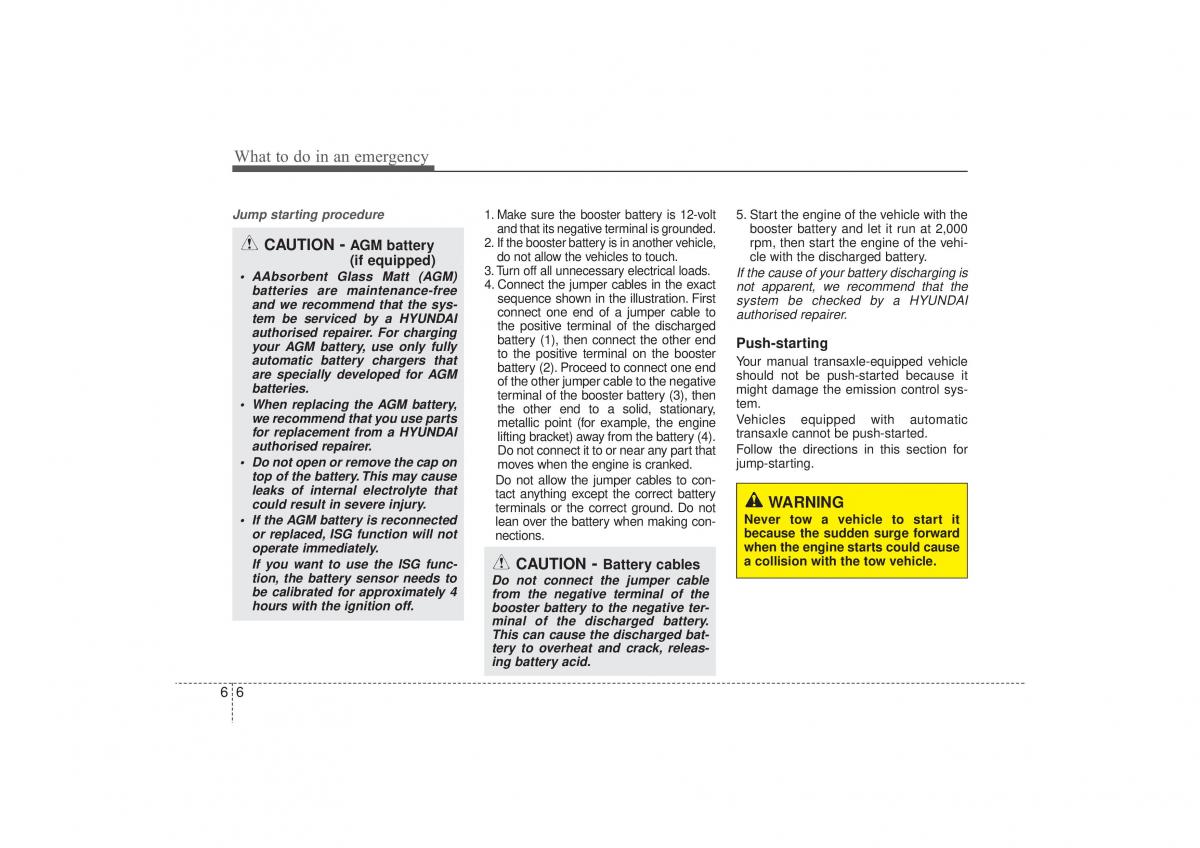

EL(FL) UK 6.QXP 12/16/2014 8:12 PM Page 6 What to do in an emergency Jump starting procedure 1. Make sure the booster battery is 12-volt 5. Start the engine of the vehicle with the and that its negative terminal is grounded.booster battery and let it run at 2,000 CAUTION -AGM battery 2. If the booster battery is in another vehicle,rpm, then start the engine of the vehi- (if equipped) do not allow the vehicles to touch.cle with the discharged battery. 3.Turn off all unnecessary electrical loads.If the cause of your battery discharging is • AAbsorbent Glass Matt (AGM) 4. Connect the jumper cables in the exactnot apparent, we recommend that the batteries are maintenance-free sequence shown in the illustration. Firstsystem be checked by a HYUNDAI and we recommend that the sys- connect one end of a jumper cable to tem be serviced by a HYUNDAI authorised repairer. authorised repairer. For chargingthe positive terminal of the discharged battery (1), then connect the other end your AGM battery, use only fully Push-starting to the positive terminal on the booster automatic battery chargers that Your manual transaxle-equipped vehicle are specially developed for AGMbattery (2). Proceed to connect one endshould not be push-started because it batteries. of the other jumper cable to the negativemight damage the emission control sys- • When replacing the AGM battery, terminal of the booster battery (3), thentem. we recommend that you use partsthe other end to a solid, stationary, for replacement from a HYUNDAI metallic point (for example, the engine Vehicles equipped with automatic authorised repairer. lifting bracket) away from the battery (4).transaxle cannot be push-started. • Do not open or remove the cap onDo not connect it to or near any part thatFollow the directions in this section for top of the battery.This may causemoves when the engine is cranked.jump-starting. Do not allow the jumper cables to con- leaks of internal electrolyte that could result in severe injury.tact anything except the correct batteryWARNING • If the AGM battery is reconnectedterminals or the correct ground. Do notNever tow a vehicle to start it lean over the battery when making con-because the sudden surge forward or replaced, ISG function will not operate immediately. nections. when the engine starts could cause If you want to use the ISG func- a collision with the tow vehicle. tion, the battery sensor needs to CAUTION - Battery cables be calibrated for approximately 4 Do not connect the jumper cable hours with the ignition off.from the negative terminal of the booster battery to the negative ter- minal of the discharged battery. This can cause the discharged bat- tery to overheat and crack, releas- ing battery acid. 6 6
