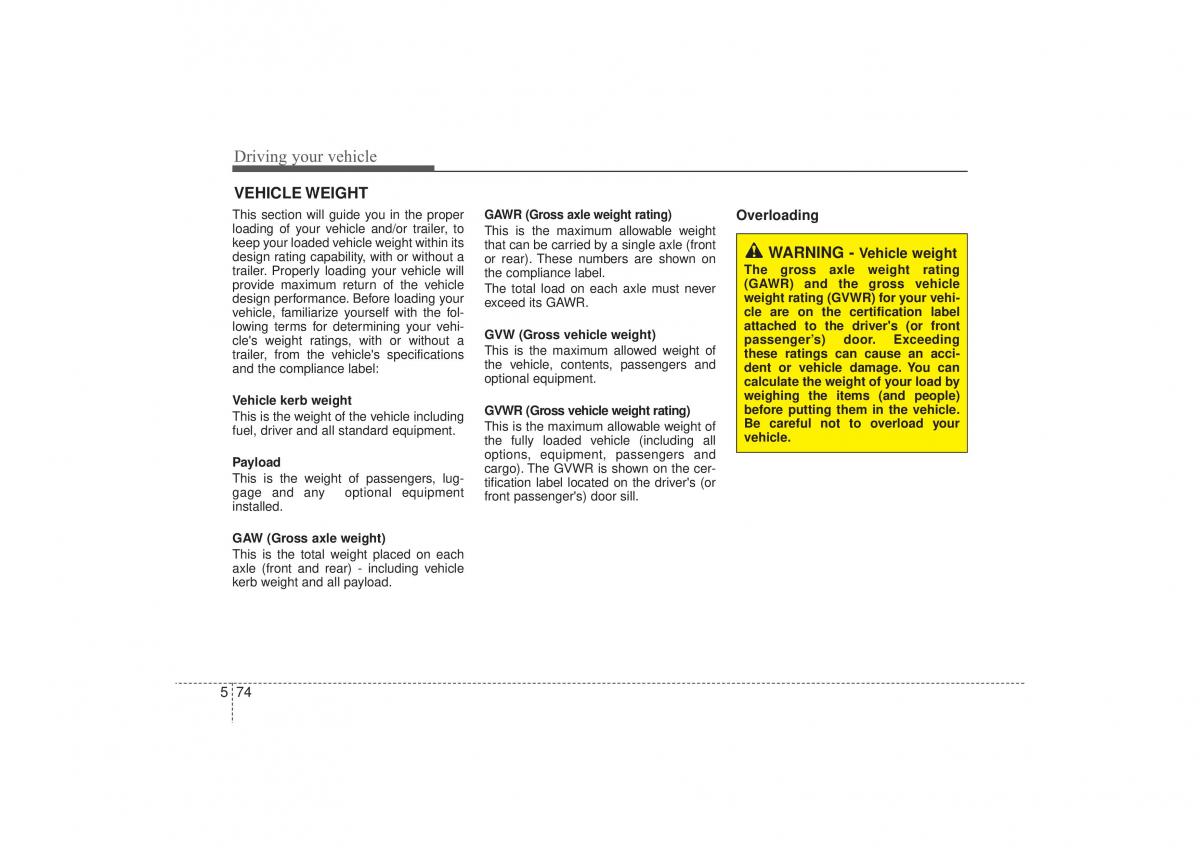

EL(FL) UK 5.QXP 12/16/2014 8:10 PM Page 74
Driving your vehicle
VEHICLE WEIGHT
This section will guide you in the properGAWR (Gross axle weight rating)Overloading
loading of your vehicle and/or trailer, to
keep your loaded vehicle weight within itsThis is the maximum allowable weight
that can be carried by a single axle (frontWARNING - Vehicle weight
design rating capability, with or without a
or rear). These numbers are shown on
trailer. Properly loading your vehicle will The gross axle weight rating
the compliance label. (GAWR) and the gross vehicle
provide maximum return of the vehicle
The total load on each axle must never
design performance. Before loading yourexceed its GAWR. weight rating (GVWR) for your vehi-
vehicle, familiarize yourself with the fol- cle are on the certification label
lowing terms for determining your vehi- attached to the driver's (or front
GVW (Gross vehicle weight) passenger’s) door. Exceeding
cle's weight ratings, with or without a
This is the maximum allowed weight of
trailer, from the vehicle's specifications these ratings can cause an acci-
the vehicle, contents, passengers and
and the compliance label: optional equipment. dent or vehicle damage. You can
calculate the weight of your load by
Vehicle kerb weight weighing the items (and people)
This is the weight of the vehicle includingGVWR (Gross vehicle weight rating)before putting them in the vehicle.
fuel, driver and all standard equipment.This is the maximum allowable weight of Be careful not to overload your
vehicle.
the fully loaded vehicle (including all
Payload options, equipment, passengers and
cargo). The GVWR is shown on the cer-
This is the weight of passengers, lug-
tification label located on the driver's (or
gage and any optional equipment
installed. front passenger's) door sill.
GAW (Gross axle weight)
This is the total weight placed on each
axle (front and rear) - including vehicle
kerb weight and all payload.
5 74
