text version of content this owner's manual page
from owners manual to the vehicle Toyota Corolla, year of production 2013:

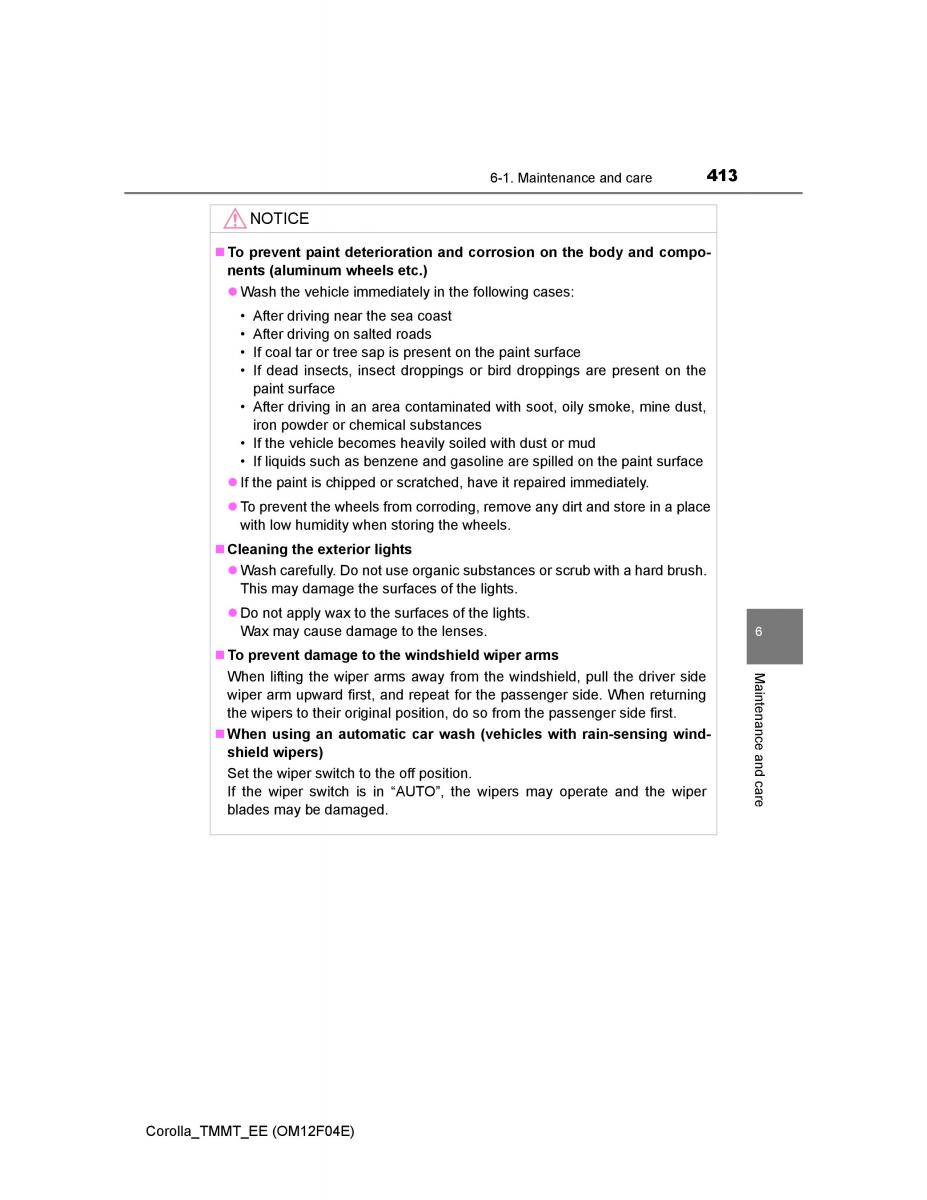

6-1. Maintenance and care413
NOTICE
To prevent paint deterioration and corrosion on the body and compo-
nents (aluminum wheels etc.)
Wash the vehicle immediately in the following cases:
After driving near the sea coast
After driving on salted roads
If coal tar or tree sap is present on the paint surface
If dead insects, insect droppings or bird droppings are present on the
paint surface
After driving in an area contaminated with soot, oily smoke, mine dust,
iron powder or chemical substances
If the vehicle becomes heavily soiled with dust or mud
If liquids such as benzene and gasoline are spilled on the paint surface
If the paint is chipped or scratched, have it repaired immediately.
To prevent the wheels from corroding, remove any dirt and store in a place
with low humidity when storing the wheels.
Cleaning the exterior lights
Wash carefully. Do not use organic substances or scrub with a hard brush.
This may damage the surfaces of the lights.
Do not apply wax to the surfaces of the lights.
Wax may cause damage to the lenses. 6
To prevent damage to the windshield wiper arms
When lifting the wiper arms away from the windshield, pull the driver sideMa
intena
wiper arm upward first, and repeat for the passenger side. When returning
the wipers to their original position, do so from the passenger side first.
When using an automatic car wash (vehicles with rain-sensing wind-nce and
shield wipers)
Set the wiper switch to the off position.
care
If the wiper switch is in “AUTO”, the wipers may operate and the wiper
blades may be damaged.
Corolla_TMMT_EE (OM12F04E)
