text version of content this owner's manual page from owners manual to the vehicle Toyota Yaris, year of production 2012:

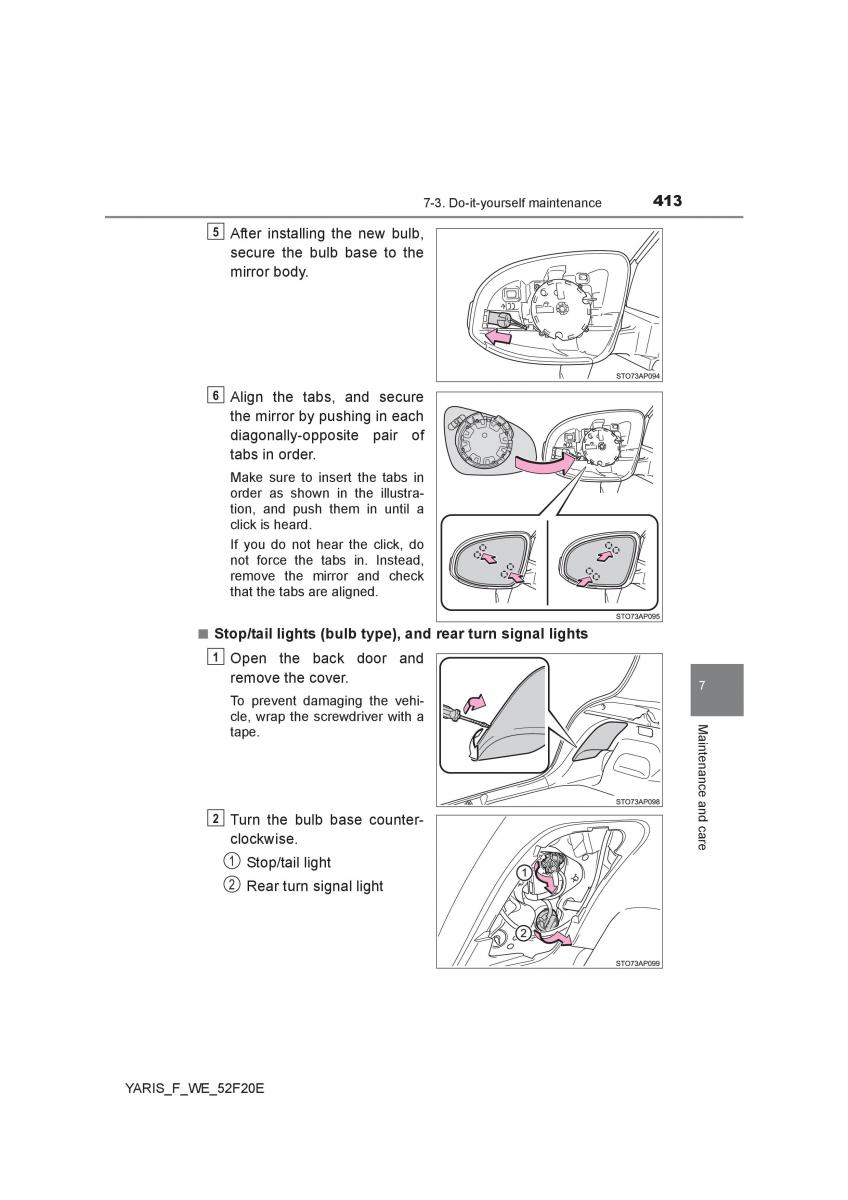

7-3. Do-it-yourself maintenance413
5 After installing the new bulb,
secure the bulb base to the
mirror body.
6 Align the tabs, and secure
the mirror by pushing in each
diagonally-opposite pair of
tabs in order.
Make sure to insert the tabs in
order as shown in the illustra-
tion, and push them in until a
click is heard.
If you do not hear the click, do
not force the tabs in. Instead,
remove the mirror and check
that the tabs are aligned.
■ Stop/tail lights (bulb type), and rear turn signal lights
1 Open the back door and
remove the cover. 7
To prevent damaging the vehi-
cle, wrap the screwdriver with a M
tape. a
i
n
te
nan
ce and
2 Turn the bulb base counter-
ca
clockwise. re
1 Stop/tail light
2 Rear turn signal light
YARIS_F_WE_52F20E
