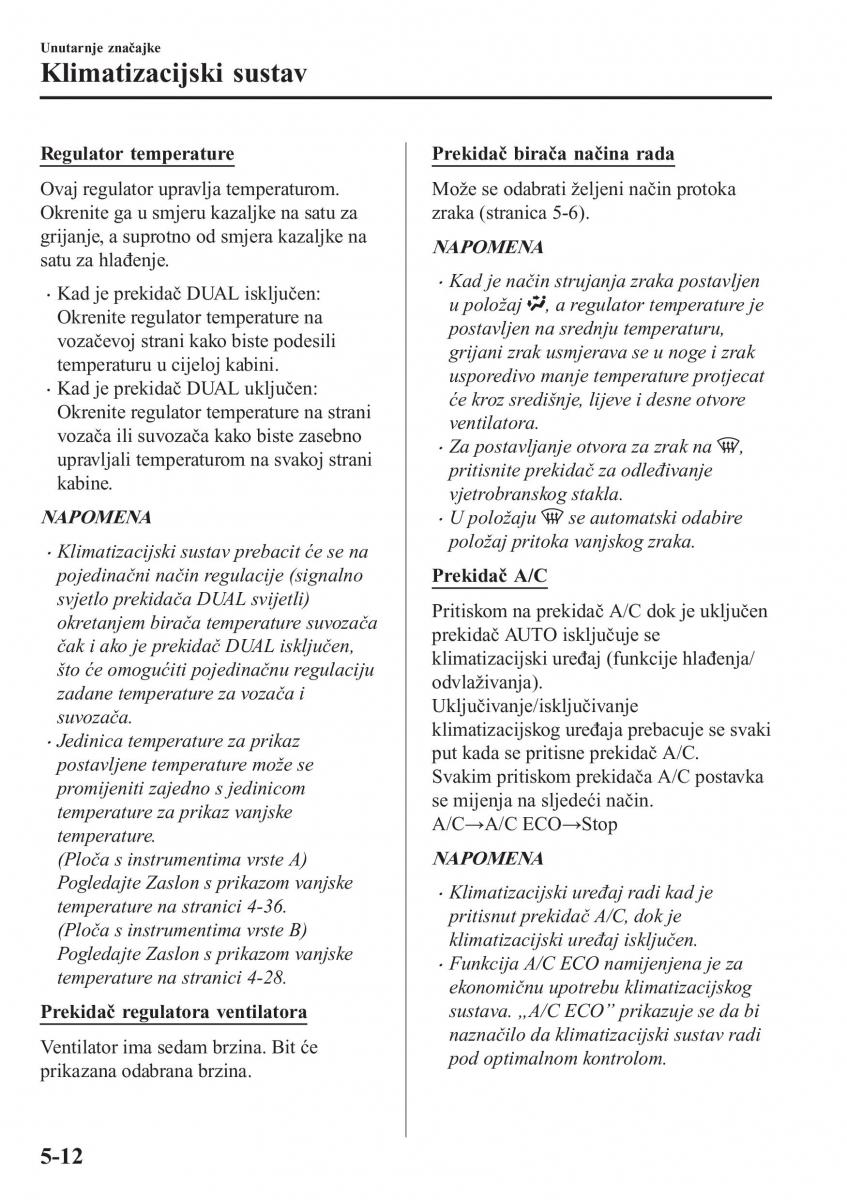

Unutarnje značajke
Klimatizacijski sustav
Regulator temperature Prekidač birača načina rada
Ovaj regulator upravlja temperaturom. Može se odabrati željeni način protoka
Okrenite ga u smjeru kazaljke na satu za zraka (stranica 5-6).
grijanje, a suprotno od smjera kazaljke na NAPOMENA
satu za hlađenje.
•Kad je način strujanja zraka postavljen
•Kad je prekidač DUAL isključen: u položaj , a regulator temperature je
Okrenite regulator temperature na postavljen na srednju temperaturu,
vozačevoj strani kako biste podesili grijani zrak usmjerava se u noge i zrak
temperaturu u cijeloj kabini. usporedivo manje temperature protjecat
•Kad je prekidač DUAL uključen: će kroz sredinje, lijeve i desne otvore
Okrenite regulator temperature na strani ventilatora.
vozača ili suvozača kako biste zasebno
upravljali temperaturom na svakoj strani •Za postavljanje otvora za zrak na ,
kabine. pritisnite prekidač za odleđivanje
vjetrobranskog stakla.
NAPOMENA •U položaju se automatski odabire
položaj pritoka vanjskog zraka.
•Klimatizacijski sustav prebacit će se na
pojedinačni način regulacije (signalno Prekidač A/C
svjetlo prekidača DUAL svijetli) Pritiskom na prekidač A/C dok je uključen
okretanjem birača temperature suvozača prekidač AUTO isključuje se
čak i ako je prekidač DUAL isključen, klimatizacijski uređaj (funkcije hlađenja/
to će omogućiti pojedinačnu regulaciju odvlaživanja).
zadane temperature za vozača i Uključivanje/isključivanje
suvozača. klimatizacijskog uređaja prebacuje se svaki
•Jedinica temperature za prikaz put kada se pritisne prekidač A/C.
postavljene temperature može se Svakim pritiskom prekidača A/C postavka
promijeniti zajedno s jedinicom se mijenja na sljedeći način.
temperature za prikaz vanjske A/Cĺ A/C ECOĺ Stop
temperature.
(Ploča s instrumentima vrste A) NAPOMENA
Pogledajte Zaslon s prikazom vanjske
temperature na stranici 4-36. •Klimatizacijski uređaj radi kad je
(Ploča s instrumentima vrste B) pritisnut prekidač A/C, dok je
Pogledajte Zaslon s prikazom vanjske klimatizacijski uređaj isključen.
temperature na stranici 4-28. •Funkcija A/C ECO namijenjena je za
ekonomičnu upotrebu klimatizacijskog
Prekidač regulatora ventilatora sustava. „A/C ECO” prikazuje se da bi
Ventilator ima sedam brzina. Bit će naznačilo da klimatizacijski sustav radi
prikazana odabrana brzina. pod optimalnom kontrolom.
5-12
