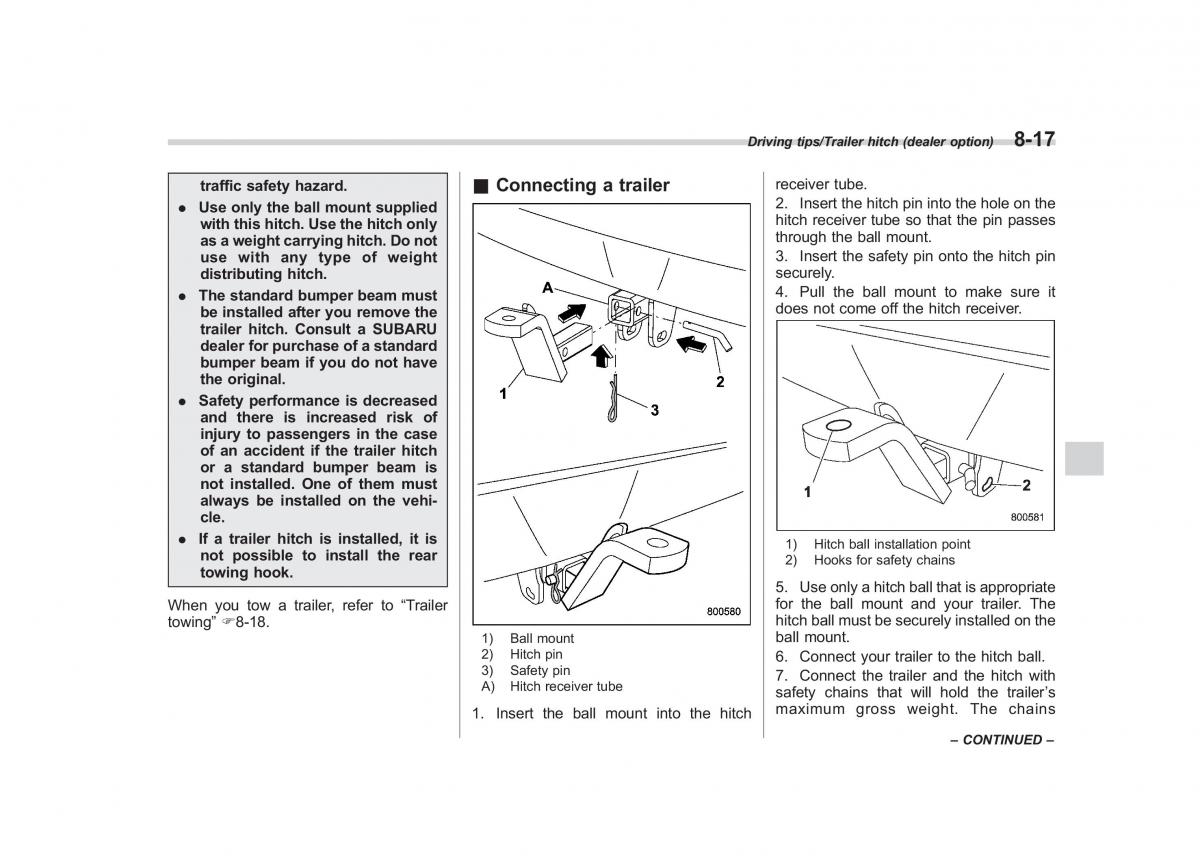

Driving tips/Trailer hitch (dealer option)8-17
traffic safety hazard. &Connecting a trailer receiver tube.
. Use only the ball mount supplied 2. Insert the hitch pin into the hole on the
with this hitch. Use the hitch only hitch receiver tube so that the pin passes
asaweightcarryinghitch.Donot through the ball mount.
use with any type of weight 3. Insert the safety pin onto the hitch pin
distributing hitch. securely.
. Thestandard bumper beam must 4. Pull the ball mount to make sure it
be installed after you remove the does not come off the hitch receiver.
trailer hitch. Consult a SUBARU
dealer for purchase of a standard
bumper beam if you do not have
the original.
. Safety performance is decreased
and there is increased risk of
injury to passengers in the case
of an accident if the trailer hitch
or a standard bumper beam is
not installed. One of them must
always be installed on the vehi-
cle.
. If a trailer hitch is installed, it is 1) Hitch ball installation point
not possible to install the rear 2) Hooks for safety chains
towing hook.
5. Useonlyahitchballthatisappropriate
When you tow a trailer, refer to “Trailer for the ball mount and your trailer. The
towing” F8-18. hitch ball must be securely installed on the
1) Ball mount ball mount.
2) Hitch pin 6. Connect your trailer to the hitch ball.
3) Safety pin 7. Connect the trailer and the hitch with
A) Hitch receiver tube safety chains that will hold the trailer’s
1. Insert the ball mount into the hitchmaximum gross weight. The chains
– CONTINUED –
