text version of content this owner's manual page from owners manual to the vehicle Jeep Patriot, year of production 2013 - 2015:

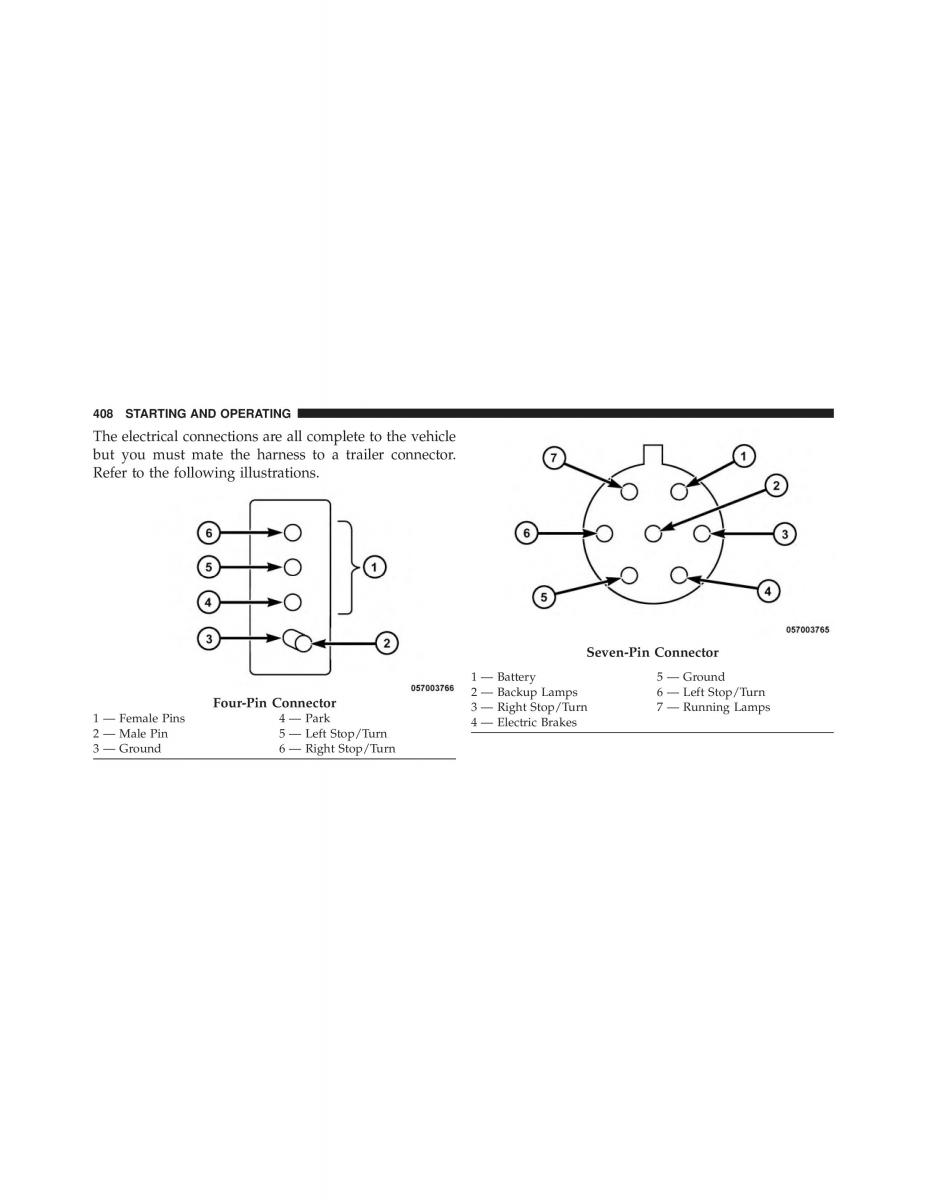

408 STARTINGANDOPERATING The electrical connections are all complete to the vehicle but you must mate the harness to a trailer connector. Refer to the following illustrations. Seven-Pin Connector 1 — Battery 5 — Ground Four-Pin Connector 2 — Backup Lamps6 — Left Stop/Turn 3 — Right Stop/Turn7 — Running Lamps 1 — Female Pins 4 — Park 4 — Electric Brakes 2 — Male Pin 5 — Left Stop/Turn 3 — Ground 6 — Right Stop/Turn
