text version of content this owner's manual page from owners manual to the vehicle Mercedes S, year of production 2005 - 2013:

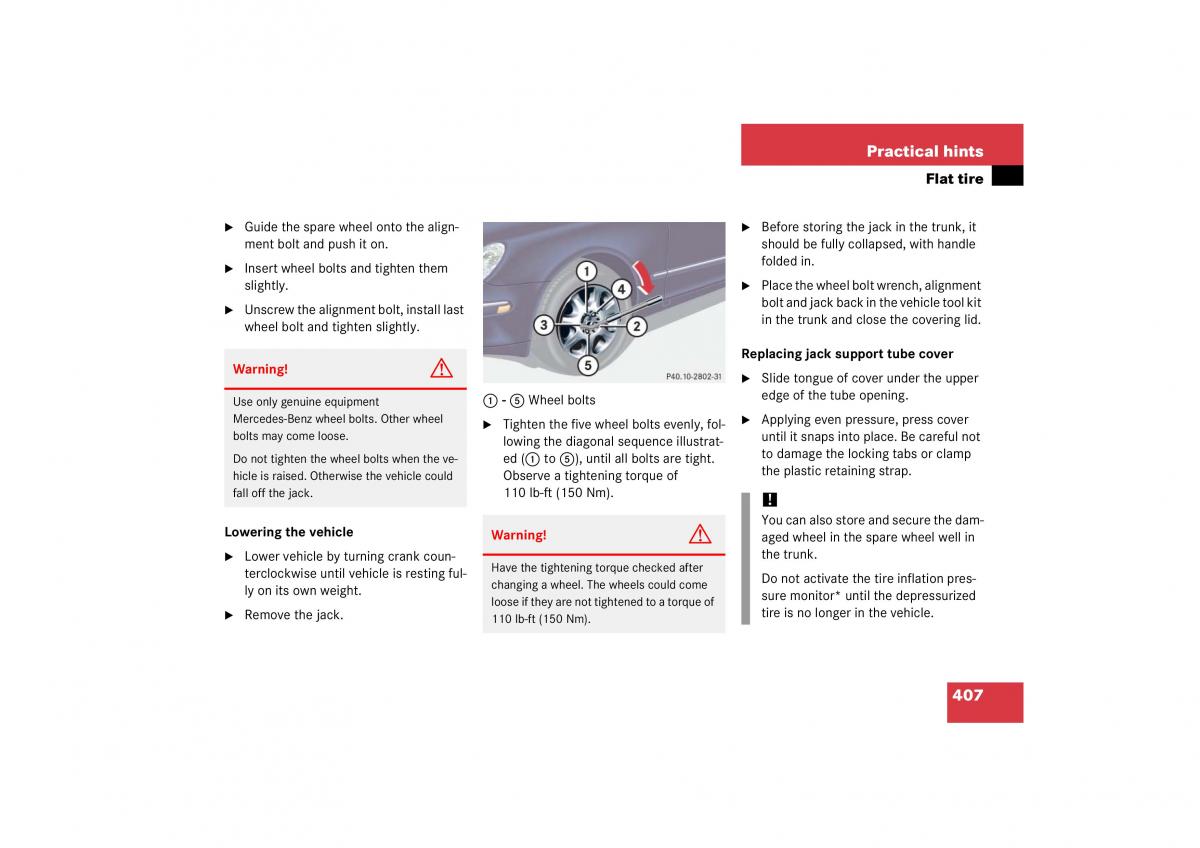

Practical hints Flat tire Guide the spare wheel onto the align- Before storing the jack in the trunk, it ment bolt and push it on. should be fully collapsed, with handle Insert wheel bolts and tighten them folded in. slightly. Place the wheel bolt wrench, alignment Unscrew the alignment bolt, install last bolt and jack back in the vehicle tool kit wheel bolt and tighten slightly. in the trunk and close the covering lid. Warning! G Replacing jack support tube cover Slide tongue of cover under the upper Use only genuine equipment 1 - 5 Wheel bolts edge of the tube opening. Mercedes-Benz wheel bolts. Other wheel Tighten the five wheel bolts evenly, fol- Applying even pressure, press cover bolts may come loose. lowing the diagonal sequence illustrat-until it snaps into place. Be careful not Do not tighten the wheel bolts when the ve-ed (1 to 5), until all bolts are tight. to damage the locking tabs or clamp hicle is raised. Otherwise the vehicle could Observe a tightening torque of the plastic retaining strap. fall off the jack. 110lb-ft (150 Nm). ! Lowering the vehicle Warning! G You can also store and secure the dam- aged wheel in the spare wheel well in Lower vehicle by turning crank coun- the trunk. terclockwise until vehicle is resting ful-Have the tightening torque checked after Do not activate the tire inflation pres- ly on its own weight. changing a wheel. The wheels could come sure monitor* until the depressurized loose if they are not tightened to a torque of tire is no longer in the vehicle. Remove the jack. 110 lb-ft (150 Nm). 407
