text version of content this owner's manual page from owners manual to the vehicle Hyundai i20, year of production 2014:

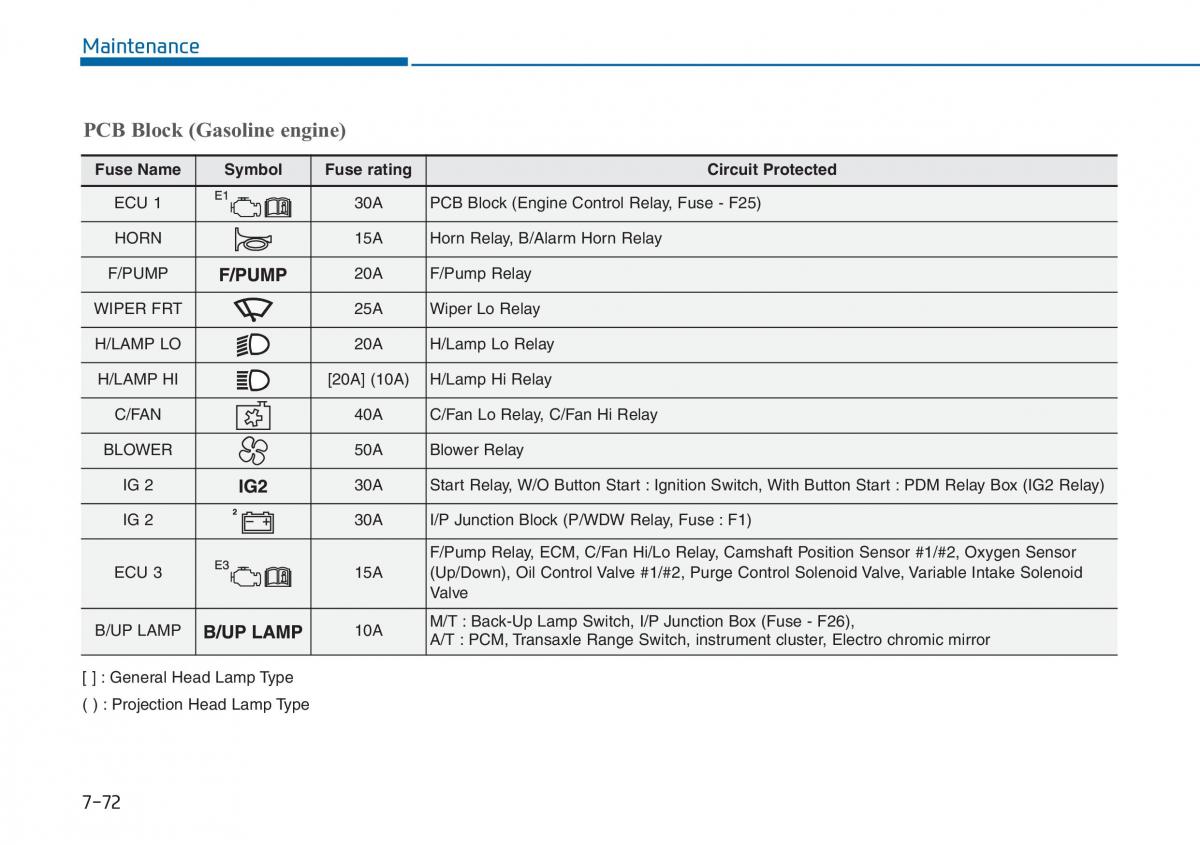

Maintenance PCB Block (Gasoline engine) Fuse NameSymbolFuse rating Circuit Protected ECU 1 30A PCB Block (Engine Control Relay, Fuse - F25) HORN 15A Horn Relay, B/Alarm Horn Relay F/PUMP 20A F/Pump Relay WIPER FRT 25A Wiper Lo Relay H/LAMP LO 20A H/Lamp Lo Relay H/LAMP HI [20A] (10A) H/Lamp Hi Relay C/FAN 40A C/Fan Lo Relay, C/Fan Hi Relay BLOWER 50A Blower Relay IG 2 30A Start Relay, W/O Button Start : Ignition Switch, With Button Start : PDM Relay Box (IG2 Relay) IG 2 30A I/P Junction Block (P/WDW Relay, Fuse : F1) F/Pump Relay, ECM, C/Fan Hi/Lo Relay, Camshaft Position Sensor #1/#2, Oxygen Sensor ECU 3 15A (Up/Down), Oil Control Valve #1/#2, Purge Control Solenoid Valve, Variable Intake Solenoid Valve B/UP LAMP 10A M/T : Back-Up Lamp Switch, I/P Junction Box (Fuse - F26), A/T : PCM, Transaxle Range Switch, instrument cluster, Electro chromic mirror [ ] : General Head Lamp Type ( ) : Projection Head Lamp Type 7-72
