text version of content this owner's manual page from owners manual to the vehicle Ford Focus, year of production 2010:

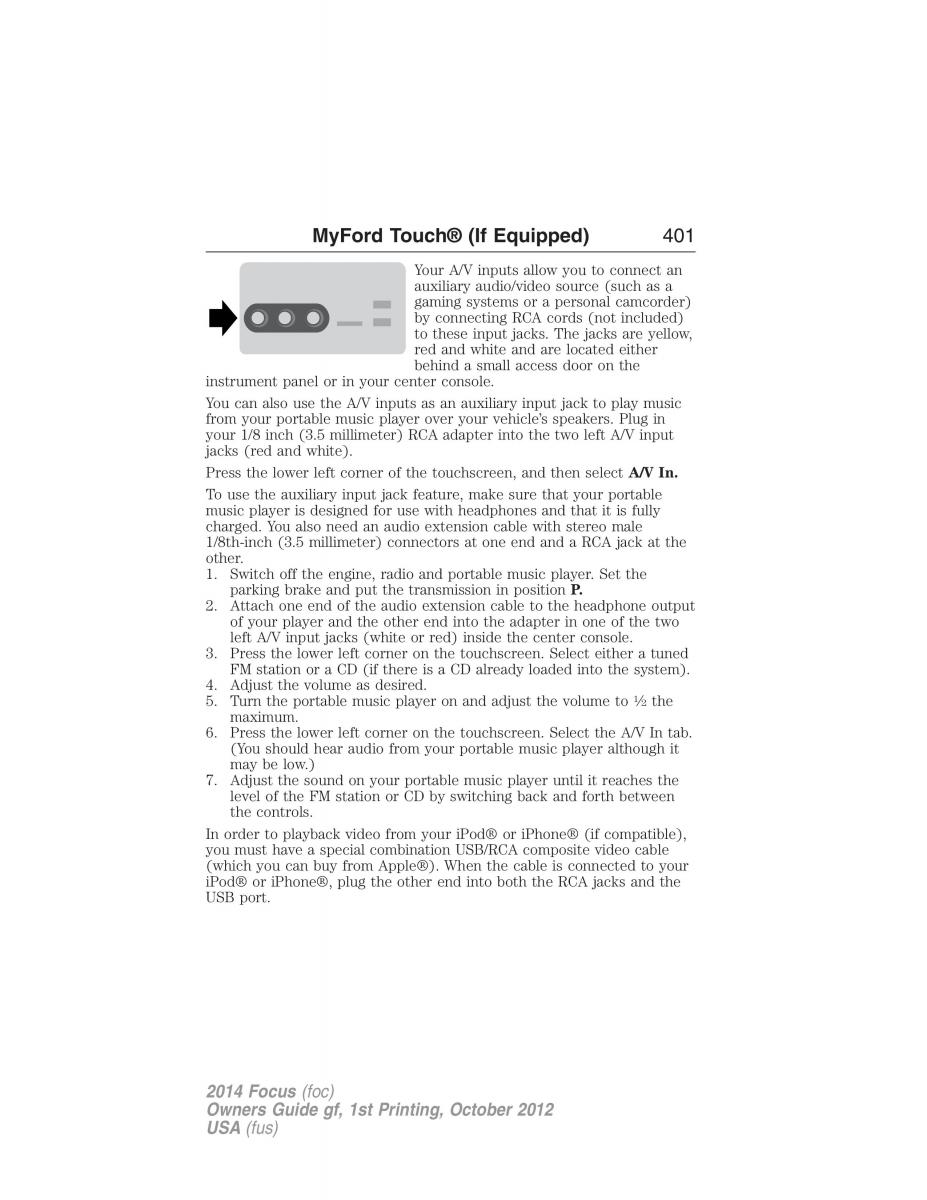

MyFord Touch® (If Equipped) 401 Your A/V inputs allow you to connect an auxiliary audio/video source (such as a gaming systems or a personal camcorder) by connecting RCA cords (not included) to these input jacks. The jacks are yellow, red and white and are located either behind a small access door on the instrument panel or in your center console. You can also use the A/V inputs as an auxiliary input jack to play music from your portable music player over your vehicle’s speakers. Plug in your 1/8 inch (3.5 millimeter) RCA adapter into the two left A/V input jacks (red and white). Press the lower left corner of the touchscreen, and then select A/V In. To use the auxiliary input jack feature, make sure that your portable music player is designed for use with headphones and that it is fully charged. You also need an audio extension cable with stereo male 1/8th-inch (3.5 millimeter) connectors at one end and a RCA jack at the other. 1. Switch off the engine, radio and portable music player. Set the parking brake and put the transmission in position P. 2. Attach one end of the audio extension cable to the headphone output of your player and the other end into the adapter in one of the two left A/V input jacks (white or red) inside the center console. 3. Press the lower left corner on the touchscreen. Select either a tuned FMstation or a CD (if there is a CD already loaded into the system). 4. Adjust the volume as desired. 1 5. Turn the portable music player on and adjust the volume to ⁄2 the maximum. 6. Press the lower left corner on the touchscreen. Select the A/V In tab. (You should hear audio from your portable music player although it may be low.) 7. Adjust the sound on your portable music player until it reaches the level of the FM station or CD by switching back and forth between the controls. In order to playback video from your iPod® or iPhone® (if compatible), you must have a special combination USB/RCA composite video cable (which you can buy from Apple®). When the cable is connected to your iPod® or iPhone®, plug the other end into both the RCA jacks and the USB port. 2014 Focus (foc) Owners Guide gf, 1st Printing, October 2012 USA(fus)
