text version of content this owner's manual page from owners manual to the vehicle Subaru XV, year of production 2011:

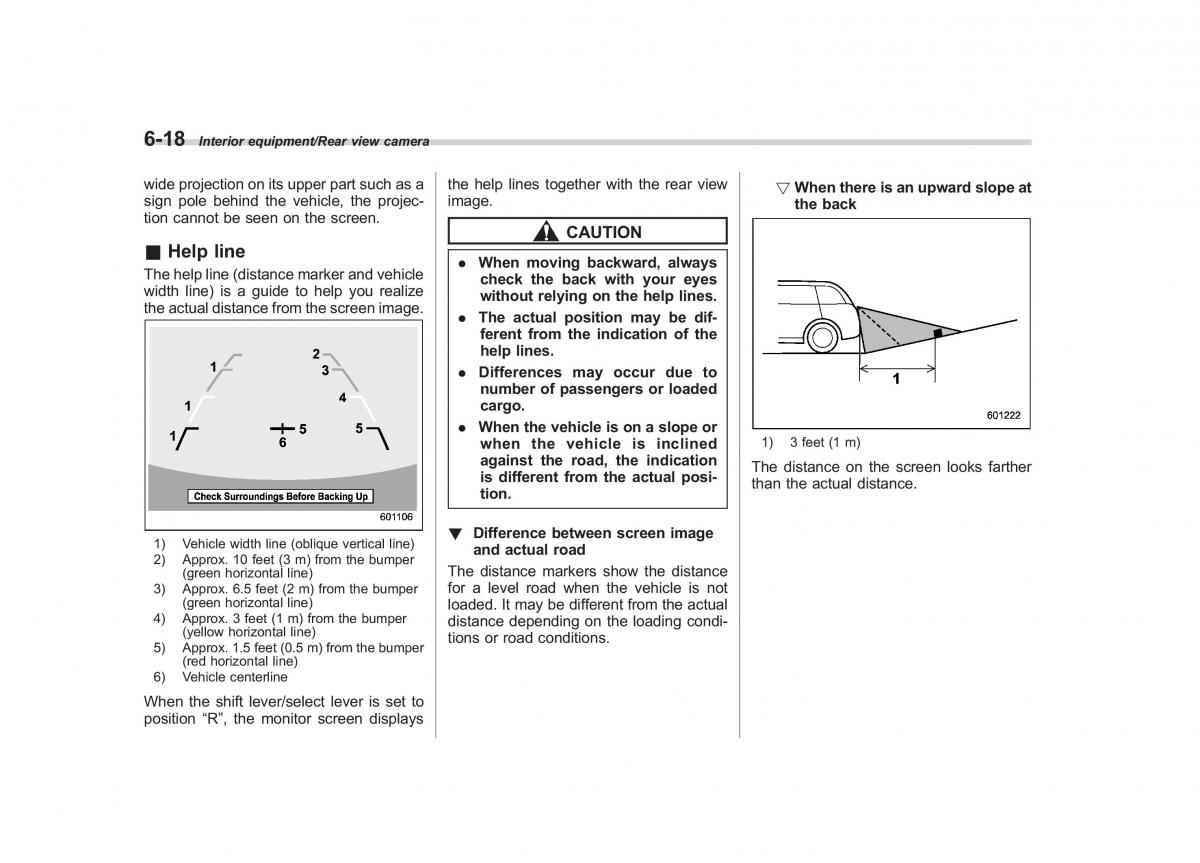

6-18 Interior equipment/Rear view camera wide projection on its upper part such as athe help lines together with the rear view!Whenthereisanupwardslopeat sign pole behind the vehicle, the projec-image. the back tion cannot be seen on the screen. CAUTION &Helpline . When moving backward, always Thehelpline(distance marker andvehiclecheck the back with your eyes width line) is a guide to help you realizewithout relying on the help lines. the actual distance from the screen image The actual position may be dif- ferent from the indication of the help lines. . Differences may occur due to number of passengers or loaded cargo. . Whenthevehicleisonaslopeor when the vehicle is inclined1)3 feet (1 m) against the road, the indicationThe distance on the screen looks farther is different from the actual posi-than the actual distance. tion. ! Difference between screen image 1)Vehicle width line (oblique vertical line)and actual road 2)Approx. 10 feet (3 m) from the bumper (green horizontal line) The distance markers show the distance 3)Approx. 6.5 feet (2 m) from the bumperfor a level road when the vehicle is not (green horizontal line) loaded. It may be different from the actual 4)Approx. 3 feet (1 m) from the bumperdistance depending on the loading condi- (yellow horizontal line) tions or road conditions. 5)Approx. 1.5 feet (0.5 m) from the bumper (red horizontal line) 6)Vehicle centerline When the shift lever/select lever is set to position “R”, the monitor screen displays
