text version of content this owner's manual page from owners manual to the vehicle Hyundai i20, year of production 2014:

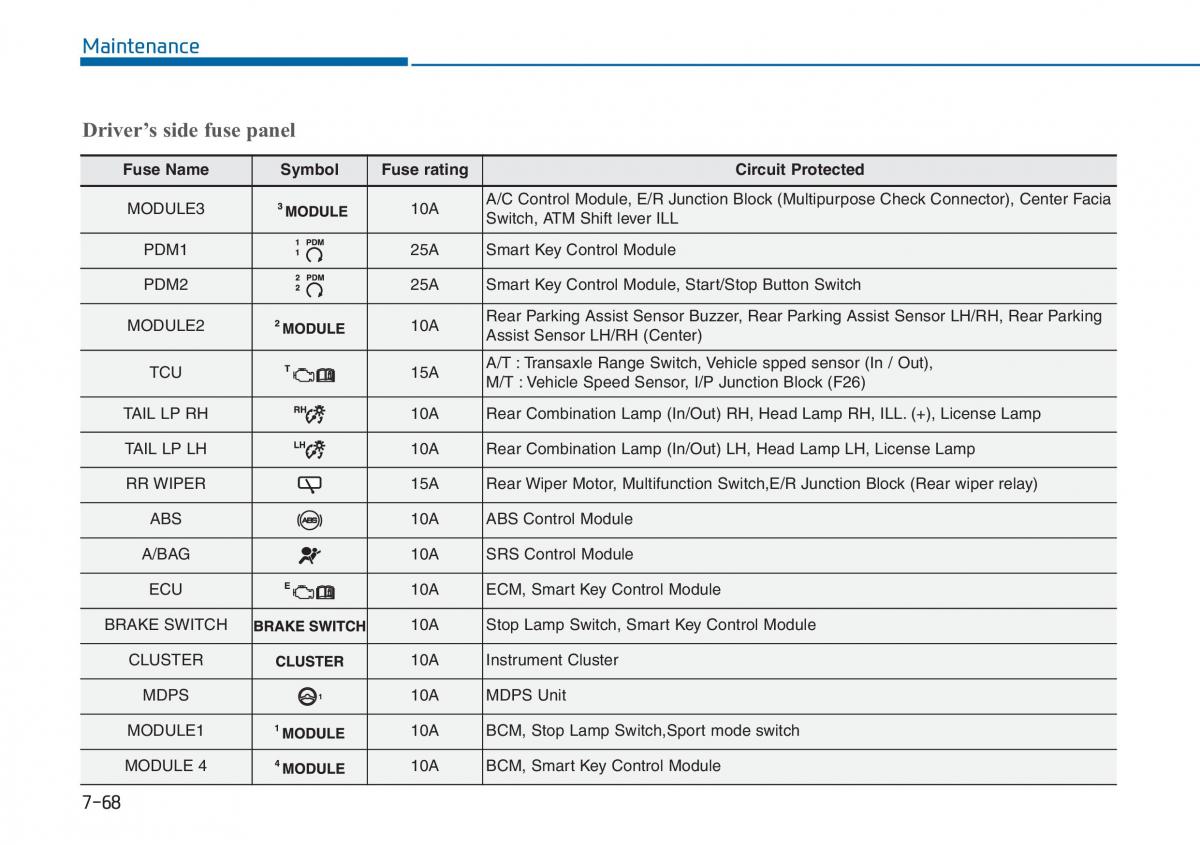

Maintenance Driver’s side fuse panel Fuse Name SymbolFuse rating Circuit Protected MODULE3 10A A/C Control Module, E/R Junction Block (Multipurpose Check Connector), Center Facia Switch, ATM Shift lever ILL PDM1 25A Smart Key Control Module PDM2 25A Smart Key Control Module, Start/Stop Button Switch MODULE2 10A Rear Parking Assist Sensor Buzzer, Rear Parking Assist Sensor LH/RH, Rear Parking Assist Sensor LH/RH (Center) TCU 15A A/T :Transaxle Range Switch, Vehicle spped sensor (In / Out), M/T :Vehicle Speed Sensor, I/P Junction Block (F26) TAIL LP RH 10A Rear Combination Lamp (In/Out) RH, Head Lamp RH, ILL.(+), License Lamp TAIL LP LH 10A Rear Combination Lamp (In/Out) LH, Head Lamp LH, License Lamp RR WIPER 15A Rear Wiper Motor, Multifunction Switch,E/R Junction Block (Rear wiper relay) ABS 10A ABS Control Module A/BAG 10A SRS Control Module ECU 10A ECM, Smart Key Control Module BRAKE SWITCH 10A Stop Lamp Switch, Smart Key Control Module CLUSTER 10A Instrument Cluster MDPS 10A MDPS Unit MODULE1 10A BCM, Stop Lamp Switch,Sport mode switch MODULE 4 10A BCM, Smart Key Control Module 7-68
