text version of content this owner's manual page from owners manual to the vehicle VW Golf VII, year of production 2012:

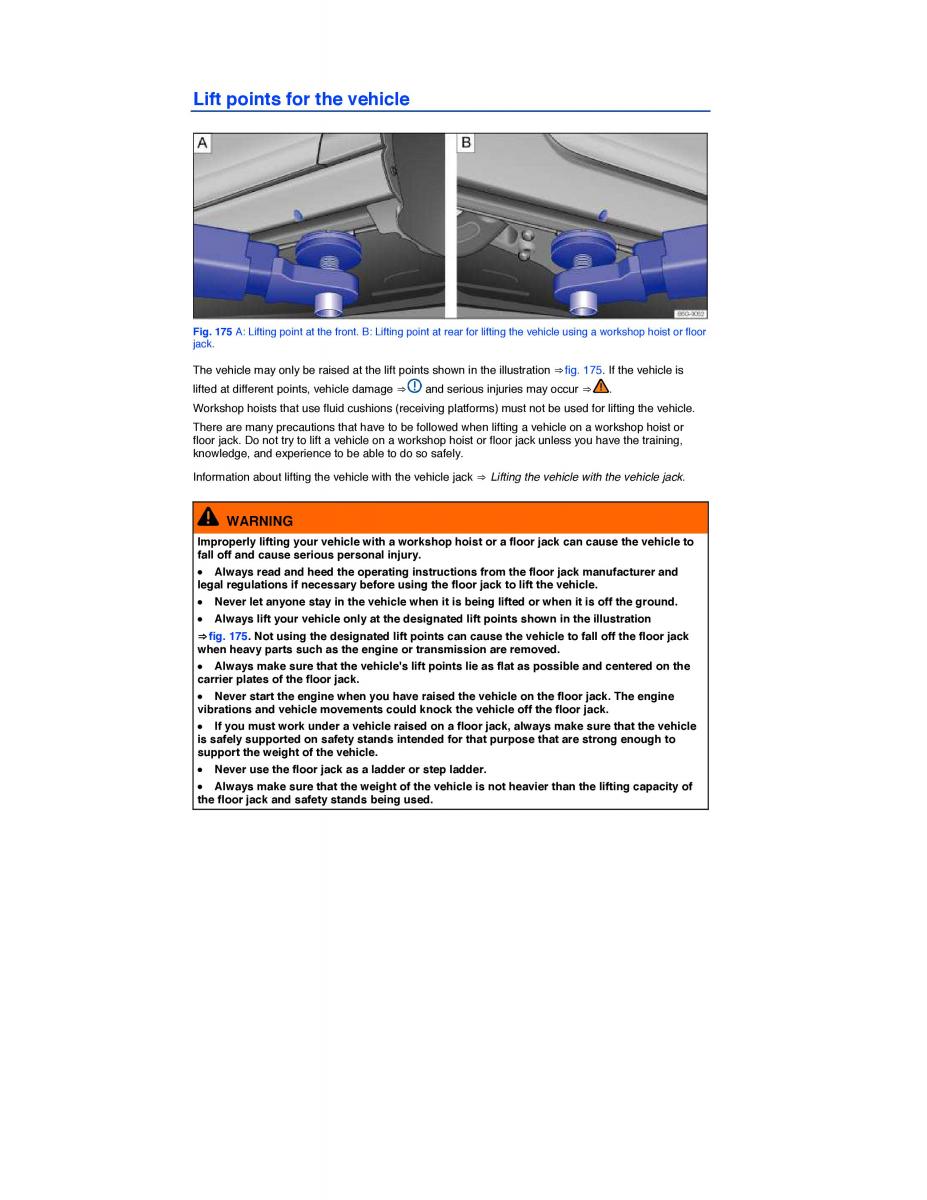

Lift points for the vehicle Fig. 175 A: Lifting point at the front. B: Lifting point at rear for lifting the vehicle using a workshop hoist or floor jack. The vehicle may only be raised at the lift points shown in the illustration ⇒ fig. 175. If the vehicle is lifted at different points, vehicle damage ⇒ and serious injuries may occur ⇒ . Workshop hoists that use fluid cushions (receiving platforms) must not be used for lifting the vehicle. There are many precautions that have to be followed when lifting a vehicle on a workshop hoist or floor jack. Do not try to lift a vehicle on a workshop hoist or floor jack unless you have the training, knowledge, and experience to be able to do so safely. Information about lifting the vehicle with the vehicle jack ⇒ Lifting the vehicle with the vehicle jack. WARNING Improperly lifting your vehicle with a workshop hoist or a floor jack can cause the vehicle to fall off and cause serious personal injury. x Always read and heed the operating instructions from the floor jack manufacturer and legal regulations if necessary before using the floor jack to lift the vehicle. x Never let anyone stay in the vehicle when it is being lifted or when it is off the gound. r x Always lift your vehicle only at the desgnaited lift points shown in the illustration ⇒ fig. 175. Not using the designated lift points can cause the vehicle to fall off the floor jack when heavy parts such as the engine or transmission are removed. x Always make sure that the vehicle's lift points lie as flat as possible and centerd eon the carrier plates of the floor jack. x Never start the engine when you have raised the vehicle on the floor jack. The engie n vibrations and vehicle movements could knock the vehicle off the floor jack. x If you must work under a vehicle raised on a floor jack, always make sure that the vehicle is safely supported on safety stands intended for that purpose that are strong enough to support the weight of the vehicle. x Never use the floor jack as a ladder or step ladder. x Always make sure that the weight of the vehicle is not heavier than the lifting capaitcy of the floor jack and safety stands being used.
