owners manual Mercedes CL

owners manual Mercedes CL - year of production: 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006 - Mercedes Benz CL C215 2000 owners manual EN

Document: pdf (26.96 MB) 424 pages

all ratings: 0 average rating: 5

text version of content this owner's manual page from owners manual to the vehicle Mercedes CL, year of production 1999 - 2006:

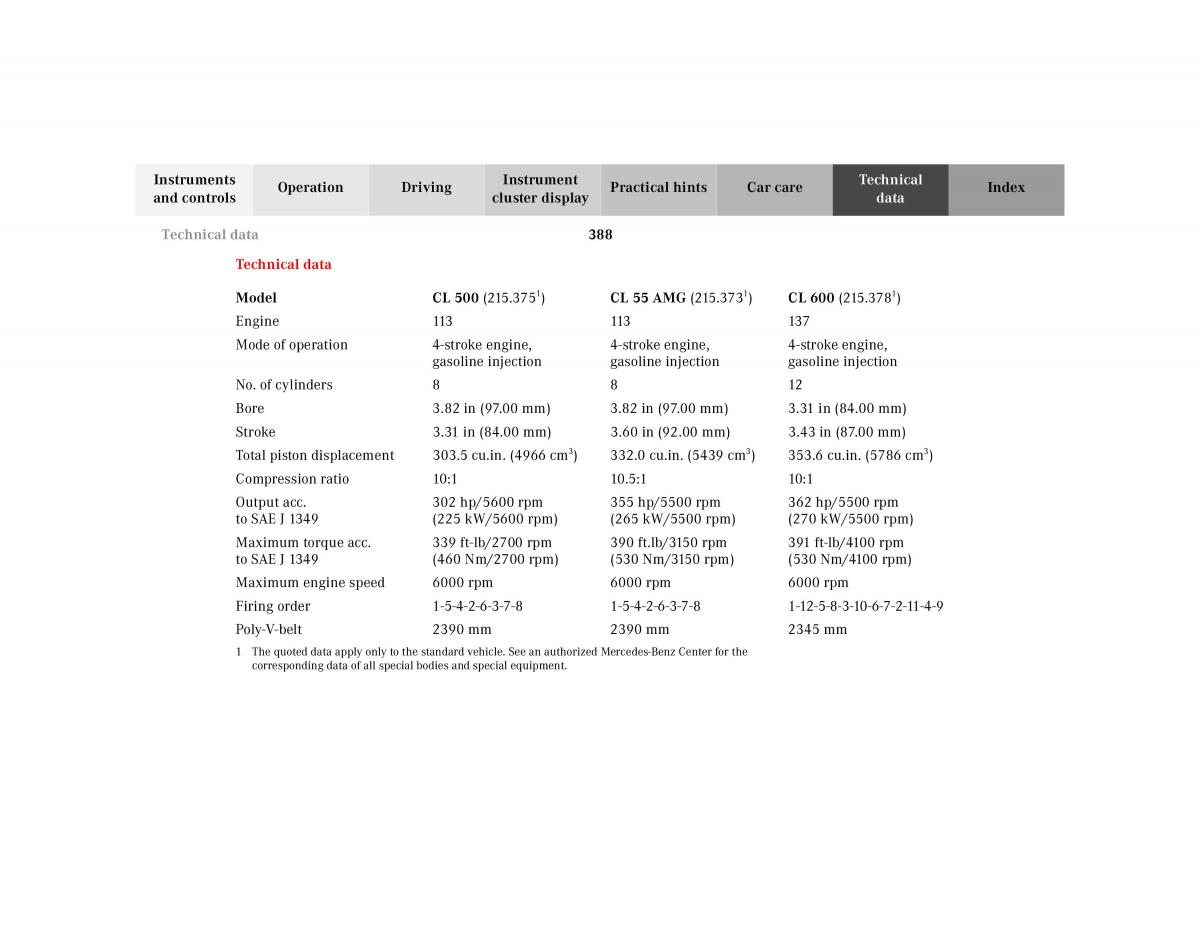

Instruments Operation Driving Instrument Practical hints Car care Technical Index and controls cluster display data Technical data 388 Technical data 1 1 1 Model CL 500 (215.375) CL 55 AMG (215.373) CL 600 (215.378) Engine 113 113 137 Mode of operation 4-stroke engine, 4-stroke engine, 4-stroke engine, gasoline injection gasoline injection gasoline injection No. of cylinders8812 Bore 3.82 in (97.00 mm) 3.82 in (97.00 mm) 3.31 in (84.00 mm) Stroke 3.31 in (84.00 mm) 3.60 in (92.00 mm) 3.43 in (87.00 mm) 3 3 3 Total piston displacement 303.5 cu.in. (4966 cm) 332.0 cu.in. (5439 cm) 353.6 cu.in. (5786 cm) Compression ratio 10:1 10.5:1 10:1 Output acc. 302 hp/5600 rpm 355hp/5500rpm 362 hp/5500 rpm to SAE J 1349 (225 kW/5600 rpm) (265kW/5500rpm) (270 kW/5500 rpm) Maximum torque acc. 339 ft-lb/2700 rpm 390ft.lb/3150 rpm 391 ft-lb/4100 rpm to SAE J 1349 (460 Nm/2700 rpm) (530Nm/3150rpm) (530 Nm/4100 rpm) Maximum engine speed 6000 rpm 6000 rpm 6000 rpm Firing order 1-5-4-2-6-3-7-8 1-5-4-2-6-3-7-8 1-12-5-8-3-10-6-7-2-11-4-9 Poly-V-belt 2390 mm 2390 mm 2345 mm 1 The quoted data apply only to the standard vehicle. See an authorized Mercedes-Benz Center for the corresponding data of all special bodies and special equipment.
