text version of content this owner's manual page from owners manual to the vehicle Toyota Prius, year of production 2003 - 2009:

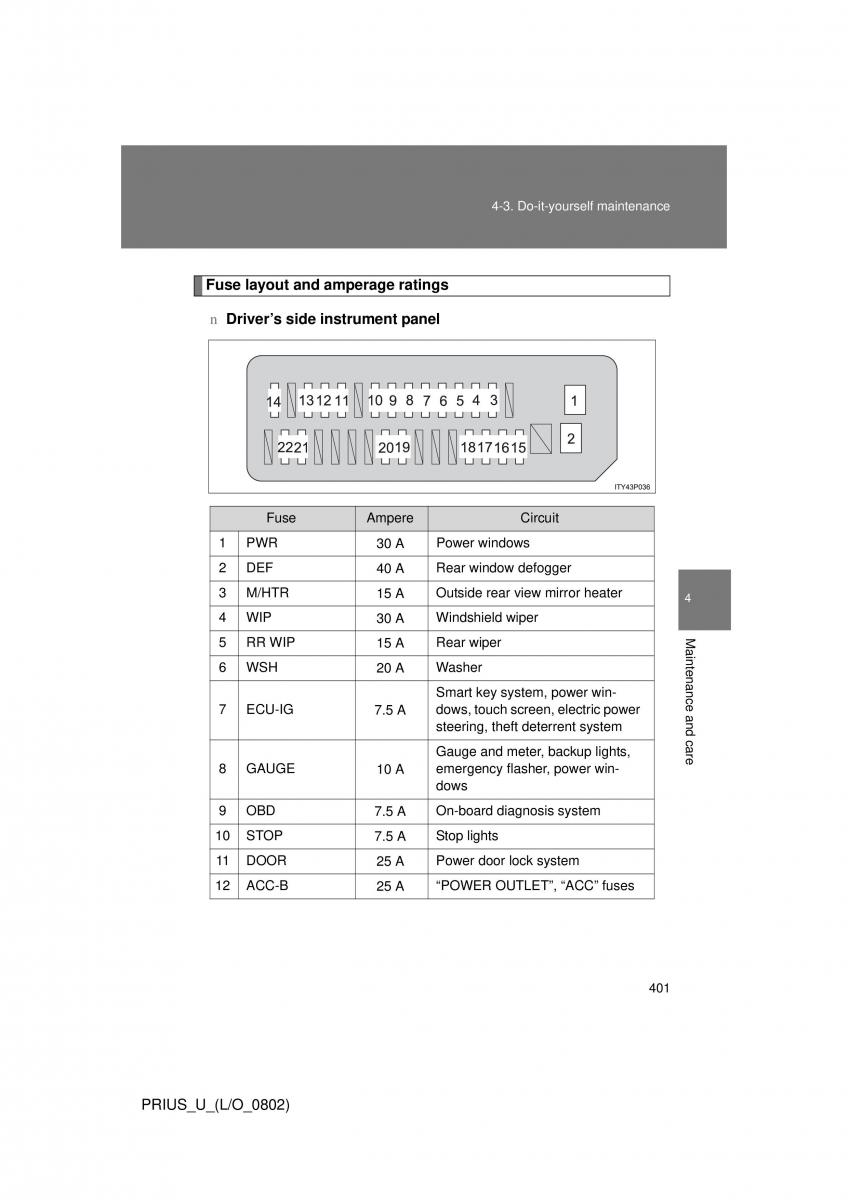

4-3. Do-it-yourself maintenance Fuse layout and amperage ratings n Driver’s side instrument panel Fuse Ampere Circuit 1 PWR 30 A Power windows 2DEF 40 A Rear window defogger 3M/HTR 15 A Outside rear view mirror heater4 4WIP 30 A Windshield wiper 5RR WIP 15 A Rear wiper Mai n 6WSH 20 A Washer tenan Smart key system, power win-ce and care 7 ECU-IG 7.5 A dows, touch screen, electric power steering, theft deterrent system Gauge and meter, backup lights, 8GAUGE 10 A emergency flasher, power win- dows 9OBD 7.5 A On-board diagnosis system 10 STOP 7.5 A Stop lights 11 DOOR 25 A Power door lock system 12 ACC-B 25 A “POWER OUTLET”, “ACC” fuses 401 PRIUS_U_(L/O_0802)
