text version of content this owner's manual page from owners manual to the vehicle Porsche Cayenne S, year of production 2002 - 2010:

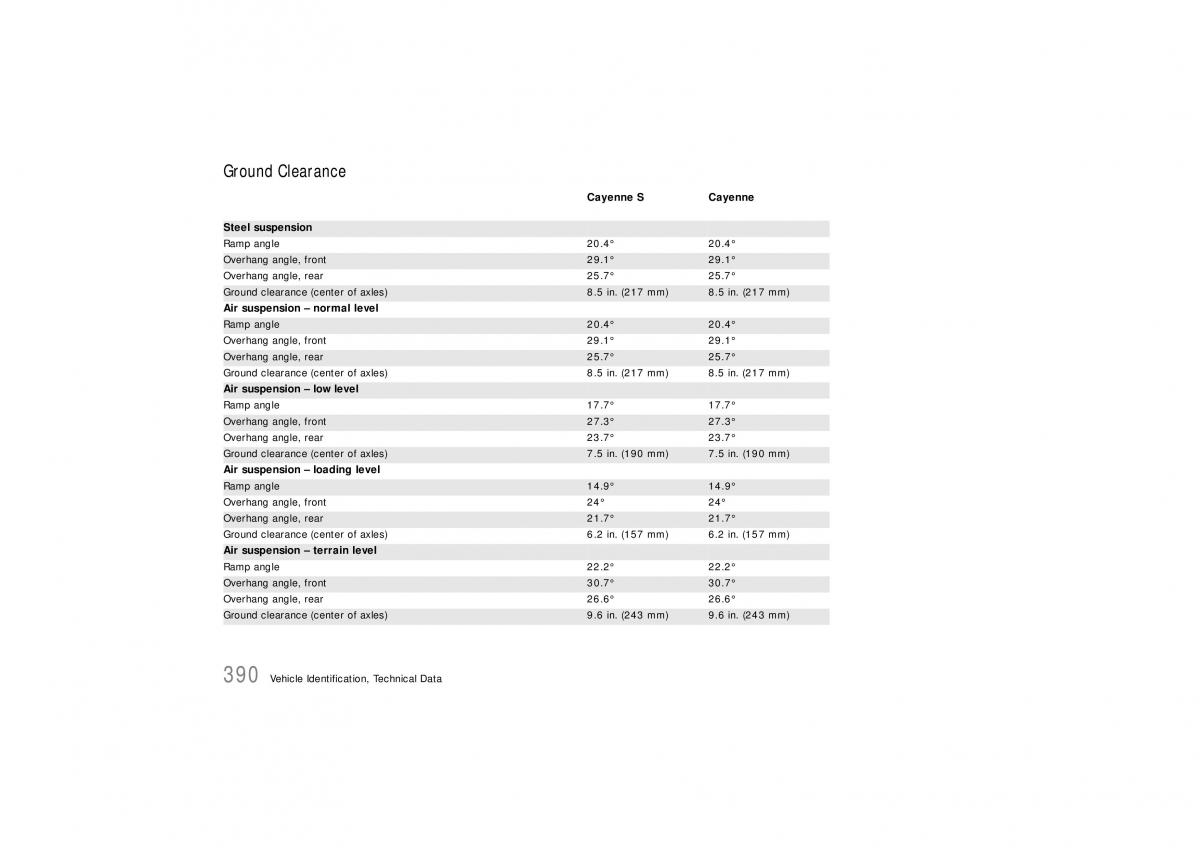

Ground Clearance Cayenne S Cayenne Steel suspension Ramp angle 20.4° 20.4° Overhang angle, front 29.1° 29.1° Overhang angle, rear 25.7° 25.7° Ground clearance (center of axles) 8.5 in. (217 mm)8.5 in. (217 mm) Air suspension – normal level Ramp angle 20.4° 20.4° Overhang angle, front 29.1° 29.1° Overhang angle, rear 25.7° 25.7° Ground clearance (center of axles) 8.5 in. (217 mm)8.5 in. (217 mm) Air suspension – low level Ramp angle 17.7° 17.7° Overhang angle, front 27.3° 27.3° Overhang angle, rear 23.7° 23.7° Ground clearance (center of axles) 7.5 in. (190 mm)7.5 in. (190 mm) Air suspension – loading level Ramp angle 14.9° 14.9° Overhang angle, front 24° 24° Overhang angle, rear 21.7° 21.7° Ground clearance (center of axles) 6.2 in. (157 mm)6.2 in. (157 mm) Air suspension – terrain level Ramp angle 22.2° 22.2° Overhang angle, front 30.7° 30.7° Overhang angle, rear 26.6° 26.6° Ground clearance (center of axles) 9.6 in. (243 mm)9.6 in. (243 mm) 390 Vehicle Identification, Technical Data
