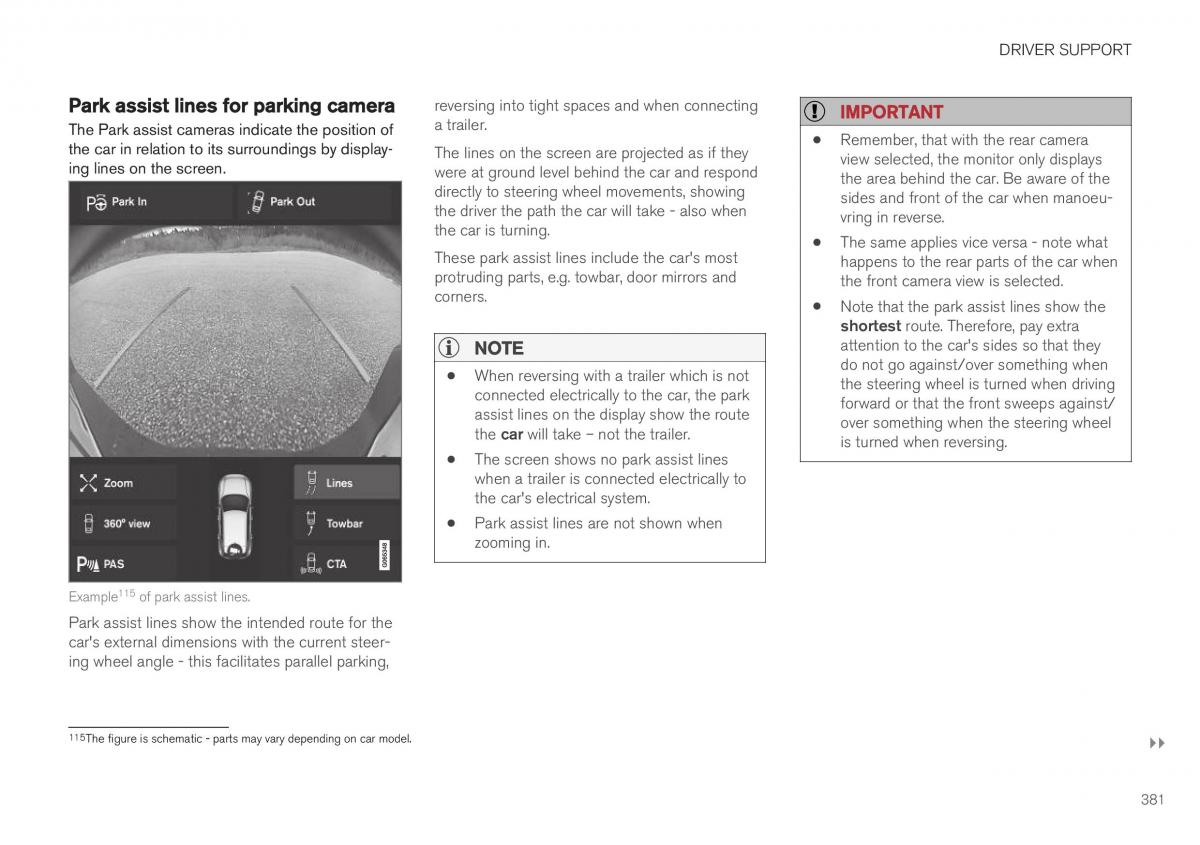

DRIVER SUPPORT
Park assist lines for parking camera reversing into tight spaces and when connecting IMPORTANT
The Park assist cameras indicate the position ofa trailer.
Remember, that with the rear camera
the car in relation to its surroundings by display-The lines on the screen are projected as if they•
ing lines on the screen. were at ground level behind the car and respond view selected, the monitor only displays
directly to steering wheel movements, showing the area behind the car. Be aware of the
the driver the path the car will take - also when sides and front of the car when manoeu-
the car is turning. vring in reverse.
The same applies vice versa - note what
These park assist lines include the cars most•
happens to the rear parts of the car when
protruding parts, e.g. towbar, door mirrors and the front camera view is selected.
corners. Note that the park assist lines show the
•
shortest route. Therefore, pay extra
NOTE attention to the cars sides so that they
When reversing with a trailer which is not do not go against/over something when
• the steering wheel is turned when driving
connected electrically to the car, the park forward or that the front sweeps against/
assist lines on the display show the route over something when the steering wheel
the car will take – not the trailer. is turned when reversing.
The screen shows no park assist lines
•
when a trailer is connected electrically to
the cars electrical system.
Park assist lines are not shown when
•
zooming in.
Example115 of park assist lines.
Park assist lines show the intended route for the
cars external dimensions with the current steer-
ing wheel angle - this facilitates parallel parking,
115The figure is schematic - parts may vary depending on car model.
}}
381
