owners manual Jeep Liberty

owners manual Jeep Liberty - year of production: 2008, 2009, 2010, 2011, 2012, 2013 - Jeep Liberty Cherokee KK owners manual EN

Document: pdf (11.33 MB) 506 pages

all ratings: 0 average rating: 5

text version of content this owner's manual page from owners manual to the vehicle Jeep Liberty, year of production 2008 - 2013:

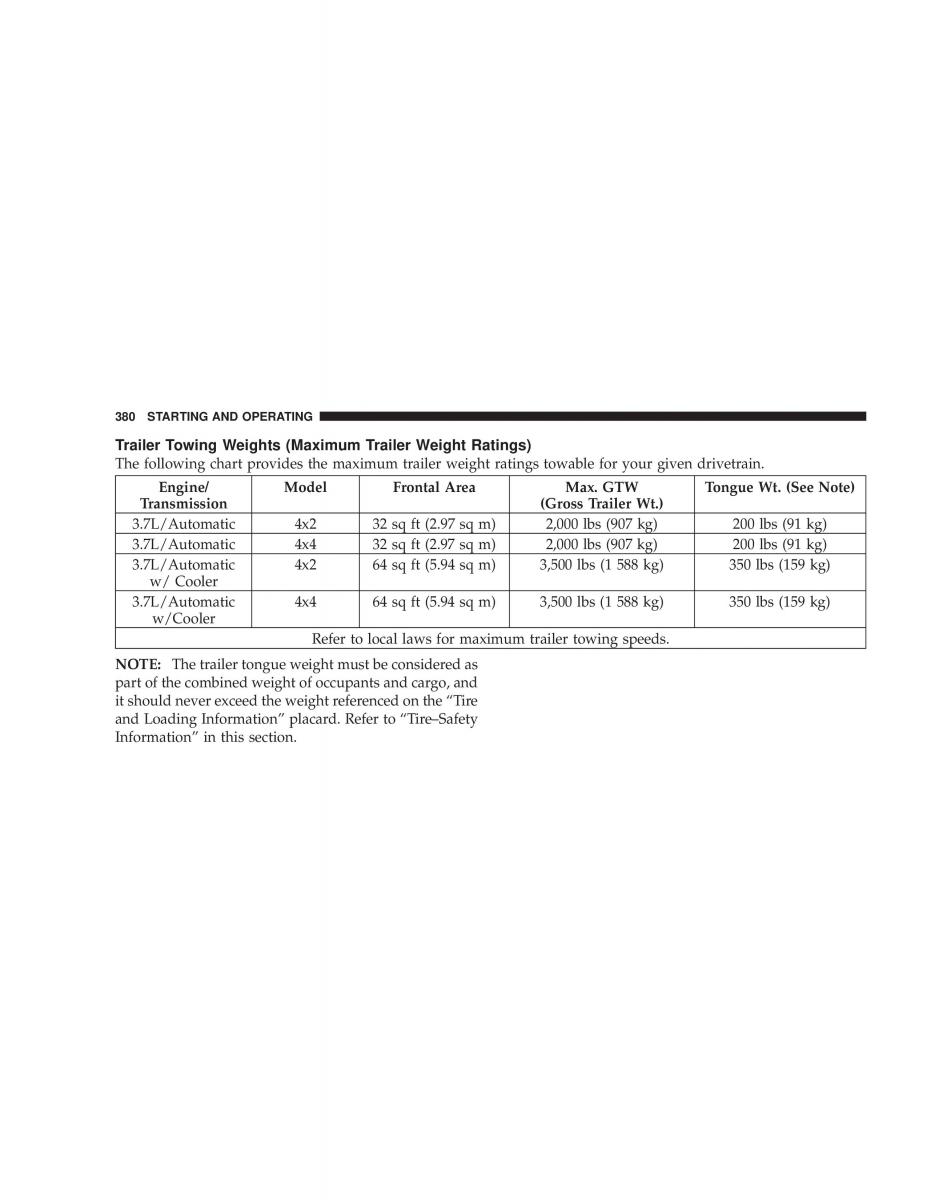

380 STARTINGANDOPERATING Trailer Towing Weights (Maximum Trailer Weight Ratings) The following chart provides the maximum trailer weight ratings towable for your given drivetrain. Engine/ Model Frontal Area Max. GTW Tongue Wt. (See Note) Transmission (Gross Trailer Wt.) 3.7L/Automatic 4x2 32 sq ft (2.97 sq m)2,000 lbs (907 kg) 200 lbs (91 kg) 3.7L/Automatic 4x4 32 sq ft (2.97 sq m)2,000 lbs (907 kg) 200 lbs (91 kg) 3.7L/Automatic 4x2 64 sq ft (5.94 sq m)3,500 lbs (1 588 kg)350 lbs (159 kg) w/Cooler 3.7L/Automatic 4x4 64 sq ft (5.94 sq m)3,500 lbs (1 588 kg)350 lbs (159 kg) w/Cooler Refer to local laws for maximum trailer towing speeds. NOTE: Thetrailertongueweightmustbeconsideredas part of the combined weight of occupants and cargo, and it should never exceed the weight referenced on the “Tire and Loading Information” placard. Refer to “Tire–Safety Information” in this section.
