text version of content this owner's manual page from owners manual to the vehicle Mercedes SLK, year of production 2004 - 2011:

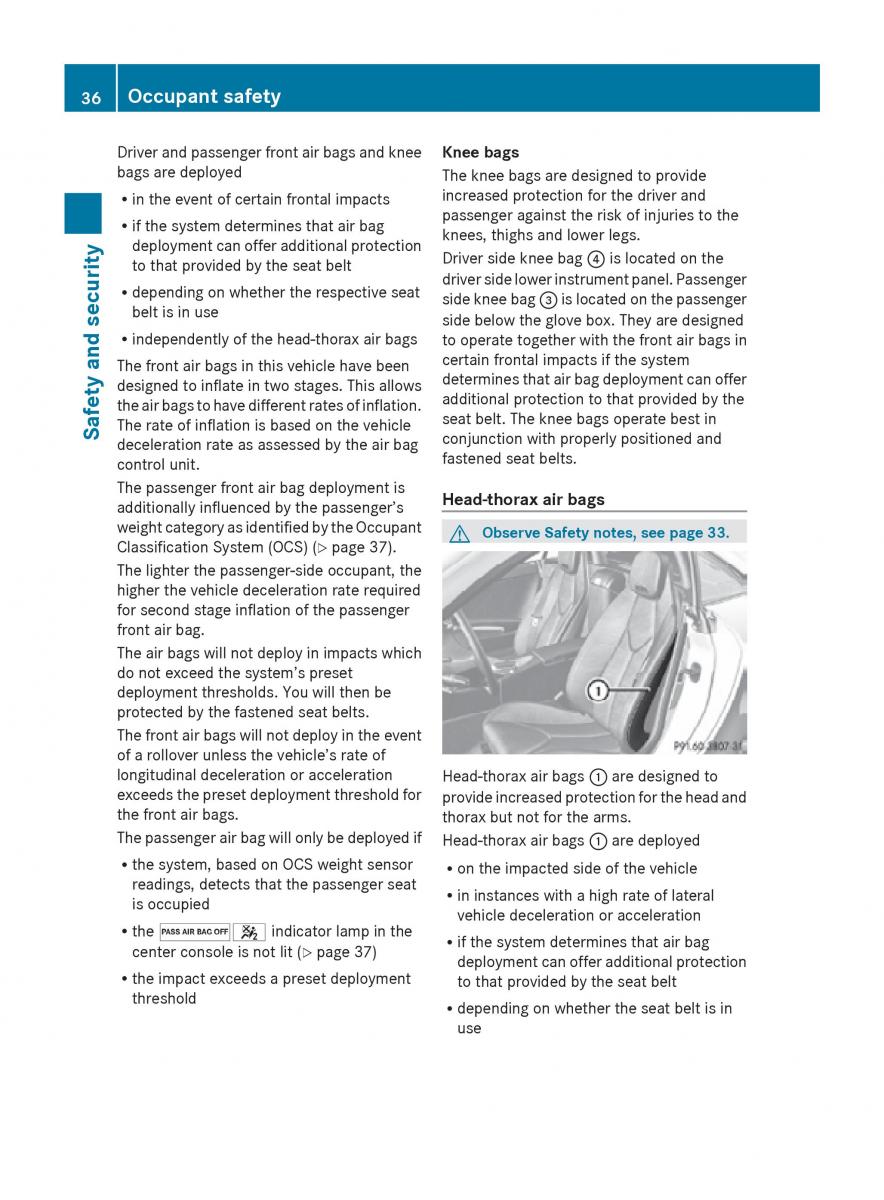

171_AKB; 3; 60, en-US 2009-05-11T16:00:23+02:00 - Seite 36 d2ureepe, Version: 2.11.8.1 36 Occupant safety Driver and passenger front air bags and kneeKnee bags bags are deployed The knee bags are designed to provide R increased protection for the driver and in the event of certain frontal impacts passenger against the risk of injuries to the R if the system determines that air bag knees, thighs and lower legs. deployment can offer additional protection Driver side knee bag ? is located on the to that provided by the seat belt driver side lower instrument panel. Passenger R depending on whether the respective seat side knee bag = is located on the passenger belt is in use side below the glove box. They are designed R independently of the head-thorax air bagsto operate together with the front air bags in certain frontal impacts if the system The front air bags in this vehicle have been determines that air bag deployment can offer designed to inflate in two stages. This allows additional protection to that provided by the the air bags to have different rates of inflation. seat belt. The knee bags operate best in The rate of inflation is based on the vehicle Safety and security conjunction with properly positioned and deceleration rate as assessed by the air bag fastened seat belts. control unit. The passenger front air bag deployment is Head-thorax air bags additionally influenced by the passenger’s weight category as identified by the Occupant GObserve Safety notes, see page 33. Classification System (OCS) (Y page 37). The lighter the passenger-side occupant, the higher the vehicle deceleration rate required for second stage inflation of the passenger front air bag. The air bags will not deploy in impacts which do not exceed the system’s preset deployment thresholds. You will then be protected by the fastened seat belts. The front air bags will not deploy in the event of a rollover unless the vehicle’s rate of longitudinal deceleration or accelerationHead-thorax air bags : are designed to exceeds the preset deployment threshold for provide increased protection for the head and the front air bags. thorax but not for the arms. The passenger air bag will only be deployed if Head-thorax air bags : are deployed R the system, based on OCS weight sensor R on the impacted side of the vehicle readings, detects that the passenger seat R in instances with a high rate of lateral is occupied vehicle deceleration or acceleration R the 04 indicator lamp in the R if the system determines that air bag center console is not lit (Y page 37) deployment can offer additional protection R the impact exceeds a preset deployment to that provided by the seat belt threshold R depending on whether the seat belt is in use
