text version of content this owner's manual page from owners manual to the vehicle Mazda MX-5, year of production 2005 - 2014:

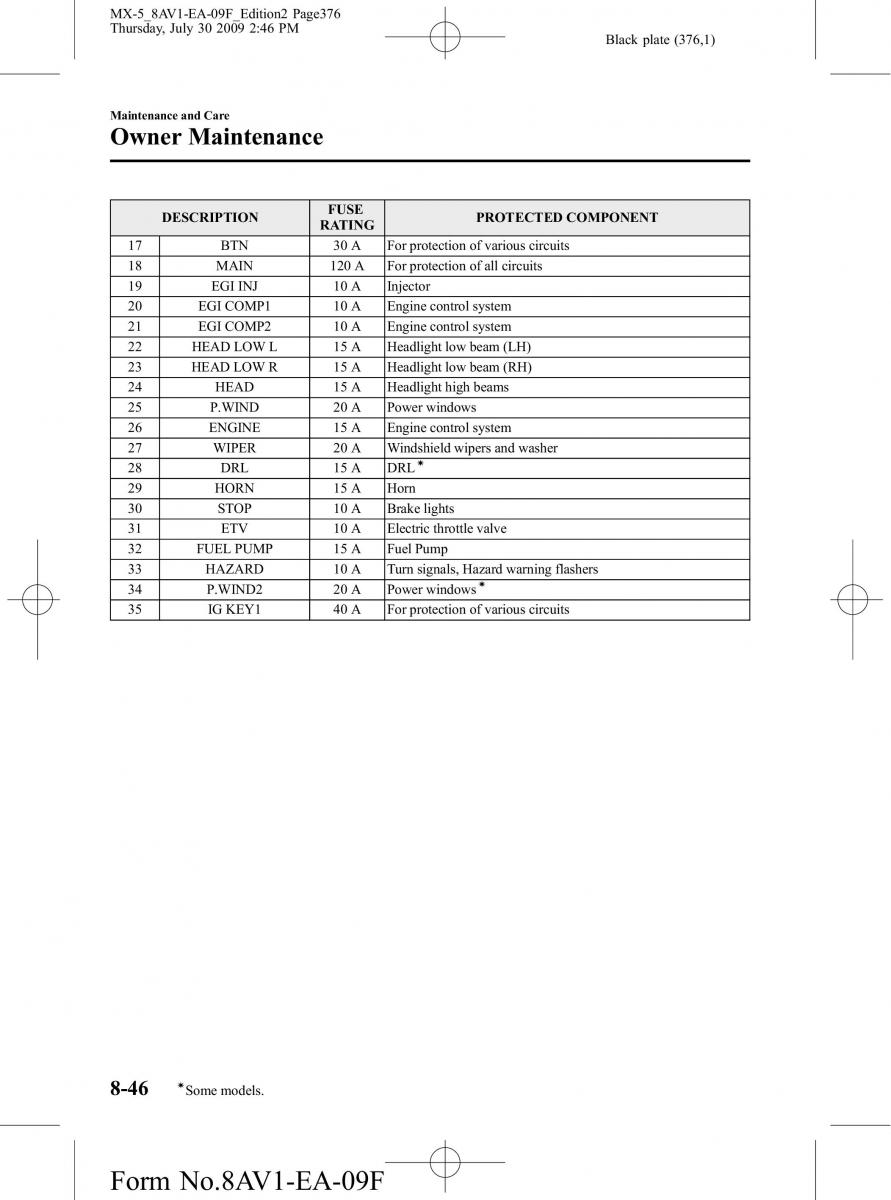

MX-5_8AV1-EA-09F_Edition2 Page376 Thursday, July 30 2009 2:46 PM Black plate (376,1) MaintenanceandCare OwnerMaintenance DESCRIPTION FUSE PROTECTEDCOMPONENT RATING 17 BTN 30A For protection of various circuits 18 MAIN 120A For protection of all circuits 19 EGIINJ 10A Injector 20 EGICOMP1 10A Engine control system 21 EGICOMP2 10A Engine control system 22 HEADLOWL 15A Headlight low beam (LH) 23 HEADLOWR 15A Headlight low beam (RH) 24 HEAD 15A Headlight high beams 25 P.WIND 20A Powerwindows 26 ENGINE 15A Engine control system 27 WIPER 20A Windshield wipers and washer 28 DRL 15A DRLí 29 HORN 15A Horn 30 STOP 10A Brake lights 31 ETV 10A Electric throttle valve 32 FUELPUMP 15A Fuel Pump 33 HAZARD 10A Turn signals, Hazard warning flashers 34 P.WIND2 20A Powerwindowsí 35 IGKEY1 40A For protection of various circuits í 8-46 Somemodels. Form No.8AV1-EA-09F
