text version of content this owner's manual page from owners manual to the vehicle KIA Ceed, year of production 2006 - 2012:

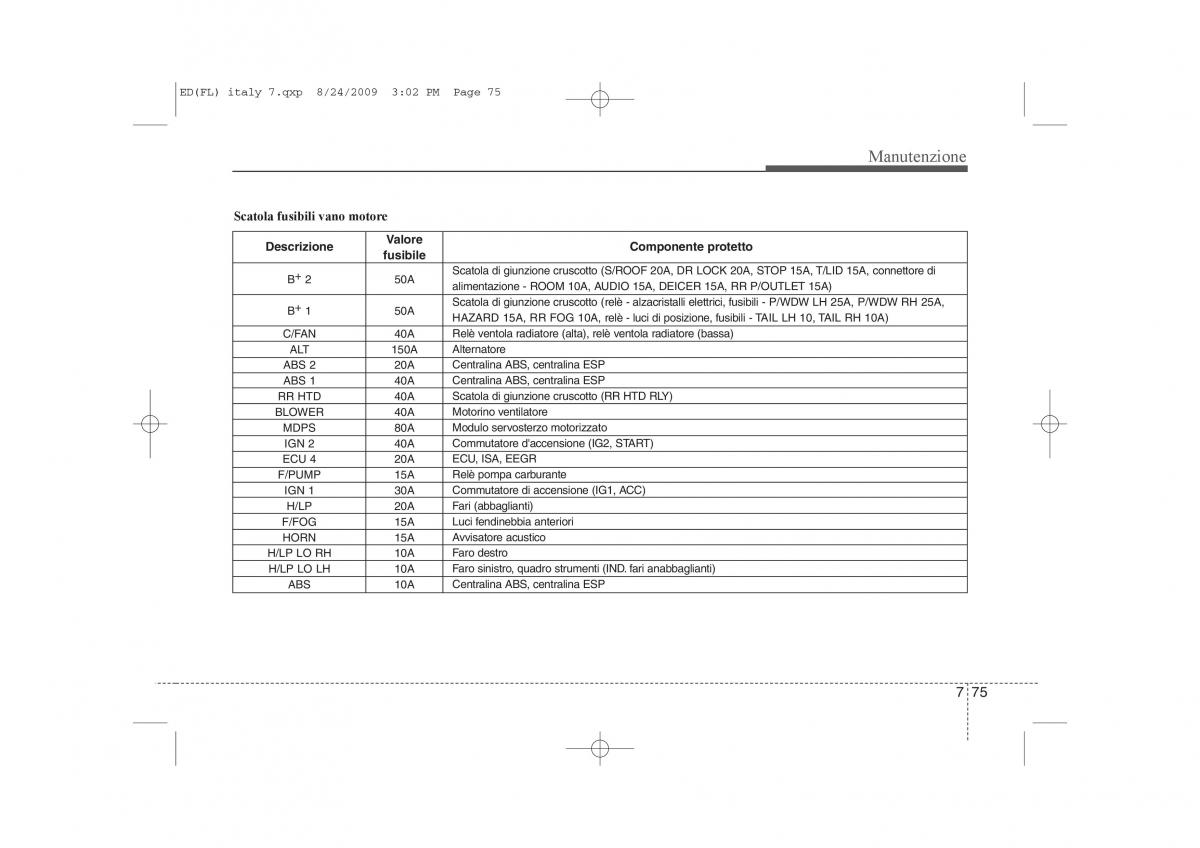

ED(FL) italy 7.qxp 8/24/2009 3:02 PM Page 75 Manutenzione Scatola fusibili vano motore DescrizioneValore Componente protetto fusibile + Scatola di giunzione cruscotto(S/ROOF 20A, DR LOCK 20A, STOP 15A, T/LID 15A, connettore di B 2 50A alimentazione - ROOM 10A, AUDIO 15A, DEICER 15A, RR P/OUTLET 15A) + Scatola di giunzione cruscotto (relè - alzacristalli elettrici, fusibili - P/WDW LH 25A, P/WDW RH 25A, B 1 50A HAZARD 15A, RR FOG 10A, relè - luci di posizione, fusibili - TAIL LH 10, TAIL RH 10A) C/FAN 40A Relè ventola radiatore (alta), relè ventola radiatore (bassa) ALT 150A Alternatore ABS 2 20A Centralina ABS, centralina ESP ABS 1 40A Centralina ABS, centralina ESP RR HTD 40A Scatola di giunzione cruscotto (RR HTD RLY) BLOWER 40A Motorino ventilatore MDPS 80A Modulo servosterzo motorizzato IGN 2 40A Commutatore d'accensione (IG2, START) ECU 4 20A ECU, ISA, EEGR F/PUMP 15A Relè pompa carburante IGN 1 30A Commutatore di accensione (IG1, ACC) H/LP 20A Fari (abbaglianti) F/FOG 15A Luci fendinebbia anteriori HORN 15A Avvisatore acustico H/LP LO RH 10A Faro destro H/LP LO LH 10A Faro sinistro, quadro strumenti (IND. fari anabbaglianti) ABS 10A Centralina ABS, centralina ESP 775
