text version of content this owner's manual page from owners manual to the vehicle Suzuki SX4 S-Cross, year of production 2013:

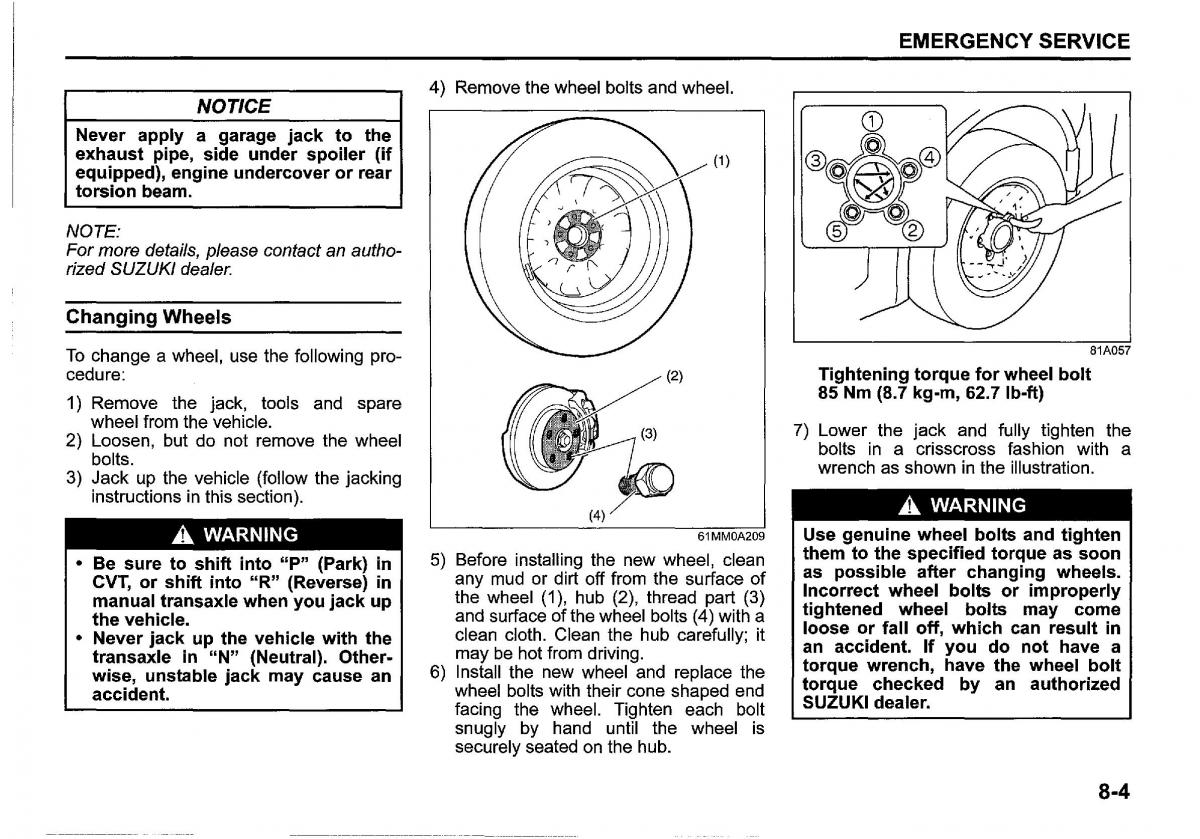

EMERGENCY SERVICE 4) Remove the wheel bolts and wheel. NOTICE Never apply a garage jack to the exhaust pipe, side under spoiler (if (1 ) equipped), engine undercover or rear torsion beam. NOTE: For more details, please contact an autho- rized SUZUKI dealer. Changing Wheels To change a wheel, use the following pro- 81A057 cedure: Tightening torque for wheel bolt 1) Remove the jack, tools and spare 85 Nm (8.7 kg-m, 62.7 Ib-ft) wheel from the vehicle. 7) Lower the jack and fully tighten the 2) Loosen, but do not remove the wheel bolts in a crisscross fashion with a bolts. wrench as shown in the illustration. 3) Jack up the vehicle (follow the jacking instructions in this section). A. WARNING A. WARNING 61MMOA209 Use genuine wheel bolts and tighten • Be sure to shift into "P" (Park) in 5) Before installing the new wheel, clean them to the specified torque as soon CVT, or shift into "R" (Reverse) in any mud or dirt off from the surface of as possible after changing wheels. manual transaxle when you jack up the wheel (1), hub (2), thread part (3) Incorrect wheel bolts or improperly the vehicle. and surface of the wheel bolts (4) with a tightened wheel bolts may come • Never jack up the vehicle with the clean cloth. Clean the hub carefully; it loose or fall off, which can result in transaxle in "N" (Neutral). Other- may be hot from driving. an accident. If you do not have a wise, unstable jack may cause an 6) Install the new wheel and replace the torque wrench, have the wheel bolt accident. wheel bolts with their cone shaped end torque checked by an authorized facing the wheel. Tighten each bolt SUZUKI dealer. snugly by hand until the wheel is securely seated on the hub. 8-4
