owners manual Jeep Grand Cherokee

all ratings: 0 average rating: 5

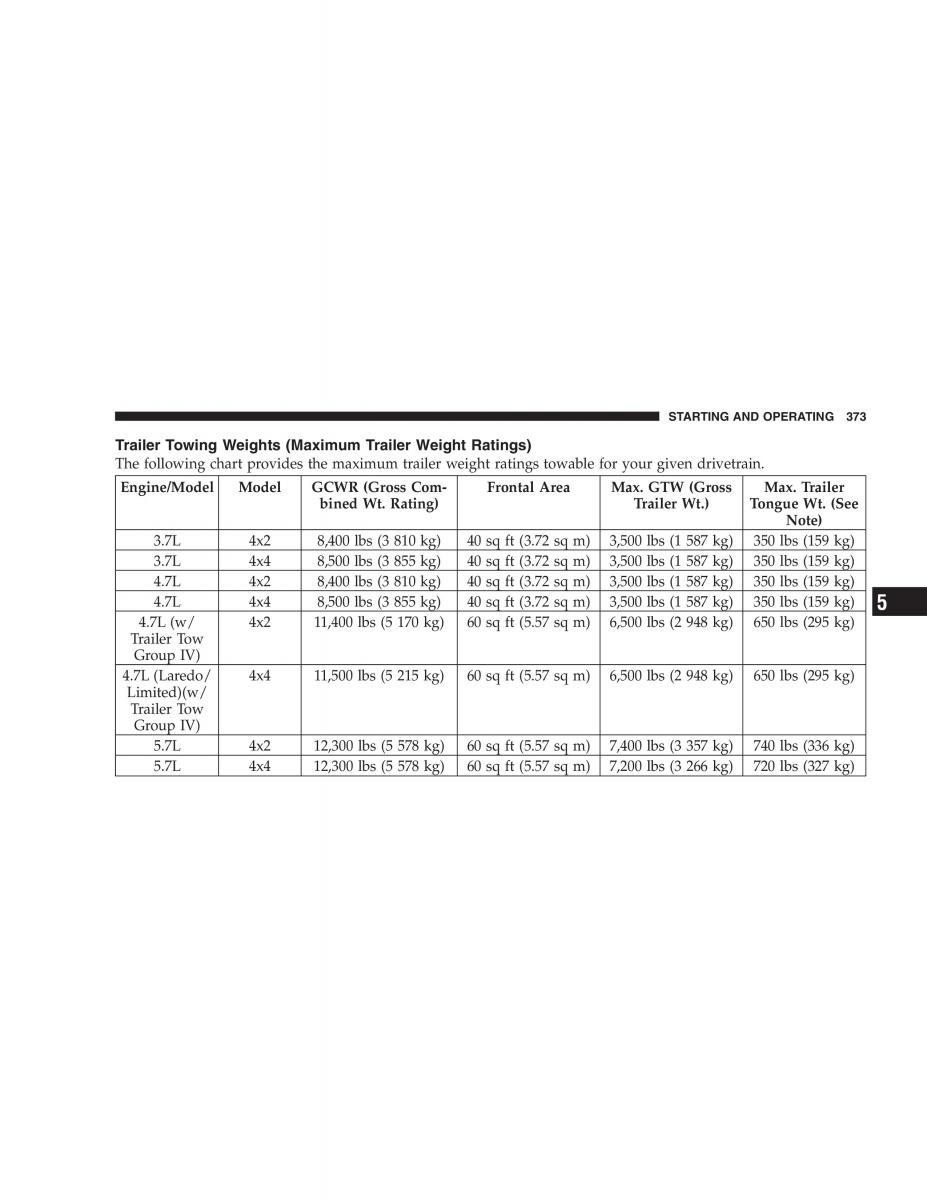

STARTINGANDOPERATING 373 Trailer Towing Weights (Maximum Trailer Weight Ratings) The following chart provides the maximum trailer weight ratings towable for your given drivetrain. Engine/ModelModel GCWR(Gross Com- Frontal AreaMax. GTW (GrossMax. Trailer bined Wt. Rating) Trailer Wt.)Tongue Wt. (See Note) 3.7L 4x2 8,400 lbs (3 810 kg)40 sq ft (3.72 sq m)3,500 lbs (1 587 kg)350 lbs (159 kg) 3.7L 4x4 8,500 lbs (3 855 kg)40 sq ft (3.72 sq m)3,500 lbs (1 587 kg)350 lbs (159 kg) 4.7L 4x2 8,400 lbs (3 810 kg)40 sq ft (3.72 sq m)3,500 lbs (1 587 kg)350 lbs (159 kg) 4.7L 4x4 8,500 lbs (3 855 kg)40 sq ft (3.72 sq m)3,500 lbs (1 587 kg)350 lbs (159 kg)5 4.7L (w/ 4x2 11,400 lbs (5 170 kg)60 sq ft (5.57 sq m)6,500 lbs (2 948 kg)650 lbs (295 kg) Trailer Tow Group IV) 4.7L (Laredo/4x4 11,500 lbs (5 215 kg)60 sq ft (5.57 sq m)6,500 lbs (2 948 kg)650 lbs (295 kg) Limited)(w/ Trailer Tow Group IV) 5.7L 4x2 12,300 lbs (5 578 kg)60 sq ft (5.57 sq m)7,400 lbs (3 357 kg)740 lbs (336 kg) 5.7L 4x4 12,300 lbs (5 578 kg)60 sq ft (5.57 sq m)7,200 lbs (3 266 kg)720 lbs (327 kg)
