text version of content this owner's manual page from owners manual to the vehicle Mitsubishi Outlander PHEV, year of production 2012:

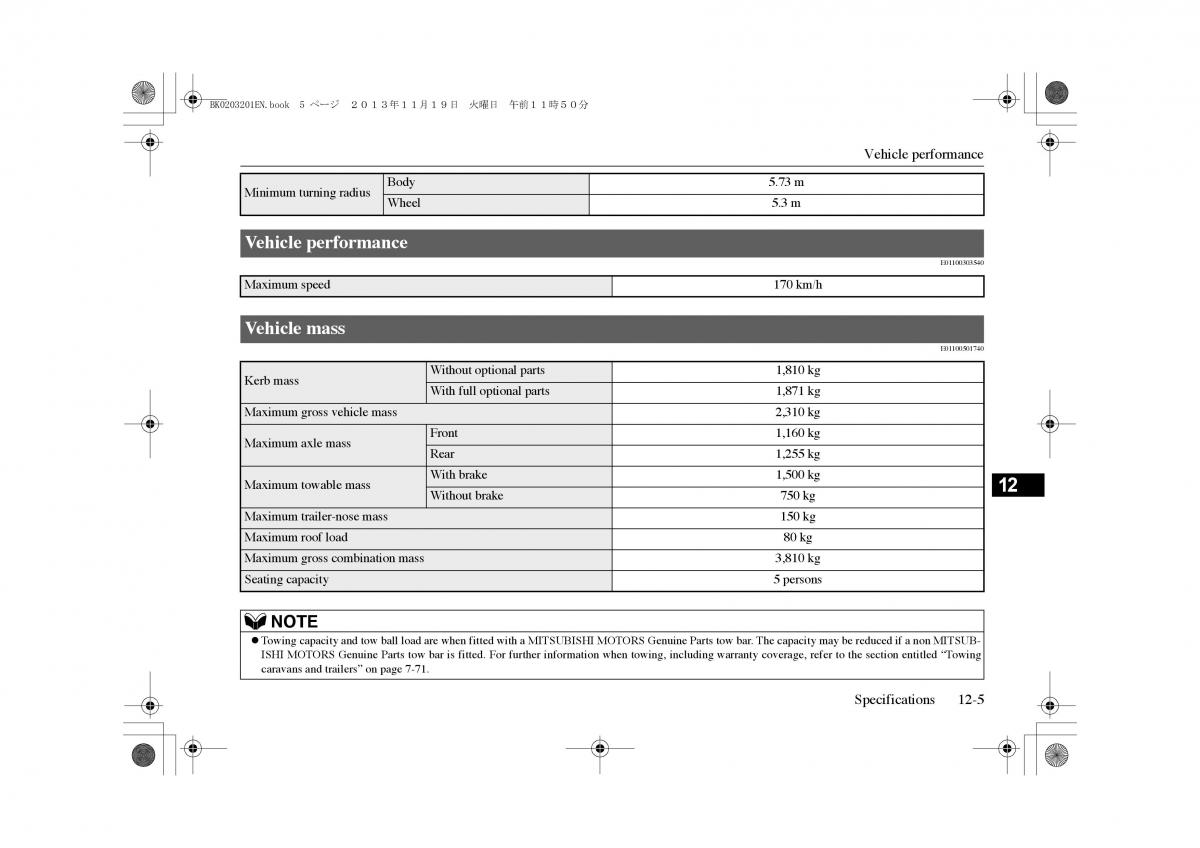

B０0203201E３.book 5 ページ㸰㸮㸯㸱年㸯㸯月㸯９日　火曜日　午前㸯㸯時５㸮分 Vehicle performance Minimum turning radius Body 5.73 m Wheel 5.3 m Vehicle performance E01100303540 Maximum speed 170 km/h Vehicle mass E01100501740 Kerb mass Without optional parts 1,810 kg With full optional parts 1,871 kg Maximum gross vehicle mass 2,310 kg Maximum axle mass Front 1,160 kg Rear 1,255 kg Maximum towable mass With brake 1,500 kg 12 Without brake 750 kg Maximum trailer-nose mass 150 kg Maximum roof load 80 kg Maximum gross combination mass 3,810 kg Seating capacity 5 persons NOTE zTowing capacity and tow ball load are when fitted with a MITSUBISHI MOTORS Genuine Parts tow bar. The capacity may be reduced f ia non MITSUB- ISHI MOTORS Genuine Parts tow bar is fitted. For further information when towing, including warranty coverage, refer to the section entitled “Towing caravans and trailers” on page 7-71. Specifications 12-5
