text version of content this owner's manual page from owners manual to the vehicle Porsche Cayenne S, year of production 2002 - 2010:

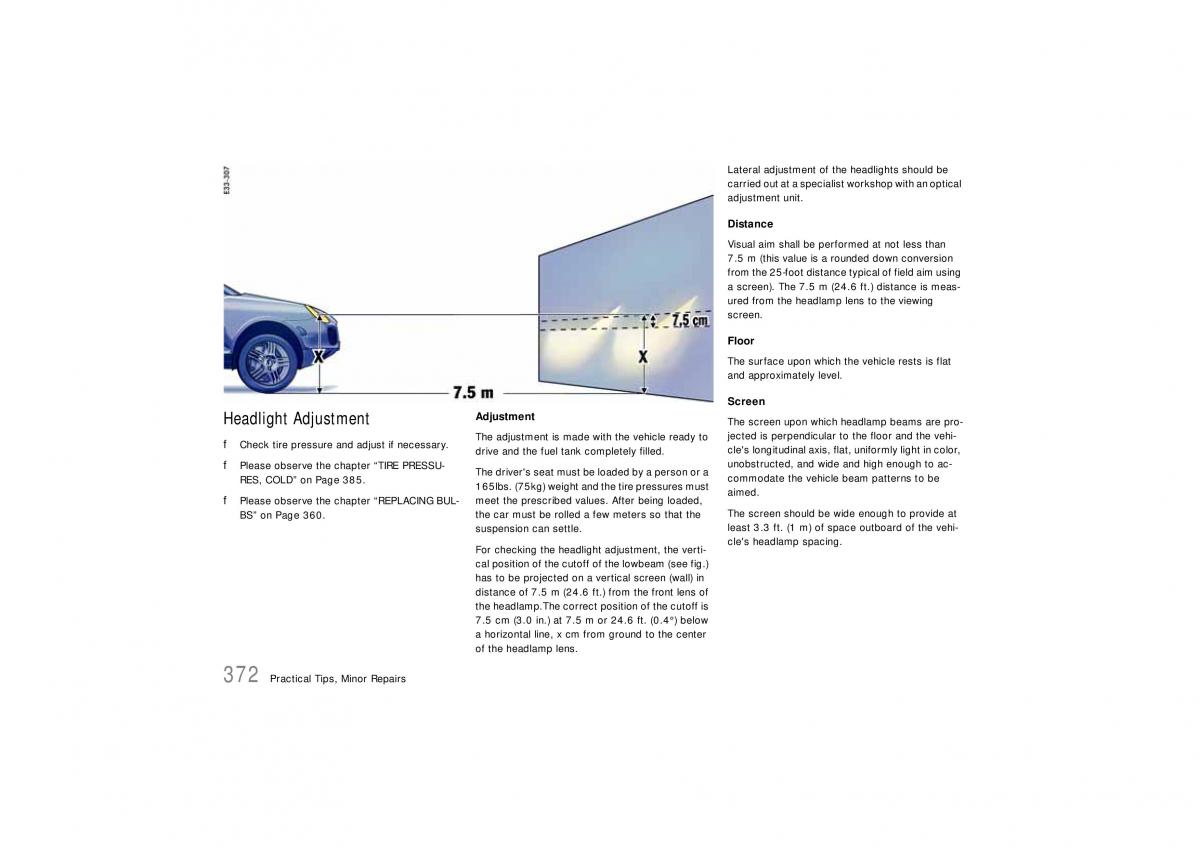

Lateral adjustment of the headlights should be carried out at a specialist workshop with an optical adjustment unit. Distance Visual aim shall be performed at not less than 7.5 m (this value is a rounded down conversion from the 25-foot distance typical of field aim using a screen). The 7.5 m (24.6 ft.) distance is meas- ured from the headlamp lens to the viewing screen. Floor The surface upon which the vehicle rests is flat and approximately level. Screen Headlight Adjustment Adjustment The screen upon which headlamp beams are pro- f Check tire pressure and adjust if necessary.The adjustment is made with the vehicle ready to jected is perpendicular to the floor and the vehi- drive and the fuel tank completely filled.cle's longitudinal axis, flat, uniformly light in color, f Please observe the chapter “TIRE PRESSU-The driver's seat must be loaded by a person or a unobstructed, and wide and high enough to ac- RES, COLD” on Page 385. 165lbs. (75kg) weight and the tire pressures must commodate the vehicle beam patterns to be f Please observe the chapter “REPLACING BUL- meet the prescribed values. After being loaded, aimed. BS” on Page 360. the car must be rolled a few meters so that the The screen should be wide enough to provide at suspension can settle. least 3.3 ft. (1 m) of space outboard of the vehi- For checking the headlight adjustment, the verti-cle's headlamp spacing. cal position of the cutoff of the lowbeam (see fig.) has to be projected on a vertical screen (wall) in distance of 7.5 m (24.6 ft.) from the front lens of the headlamp.The correct position of the cutoff is 7.5 cm (3.0 in.) at 7.5 m or 24.6 ft. (0.4°) below a horizontal line, x cm from ground to the center of the headlamp lens. 372 Practical Tips, Minor Repairs
