owners manual VW Golf VII

owners manual VW Golf VII - year of production: 2012 - VW Golf VII 7 SportWagen Variant owners manual EN

Document: pdf (6.46 MB) 439 pages

all ratings: 0 average rating: 5

text version of content this owner's manual page from owners manual to the vehicle VW Golf VII, year of production 2012:

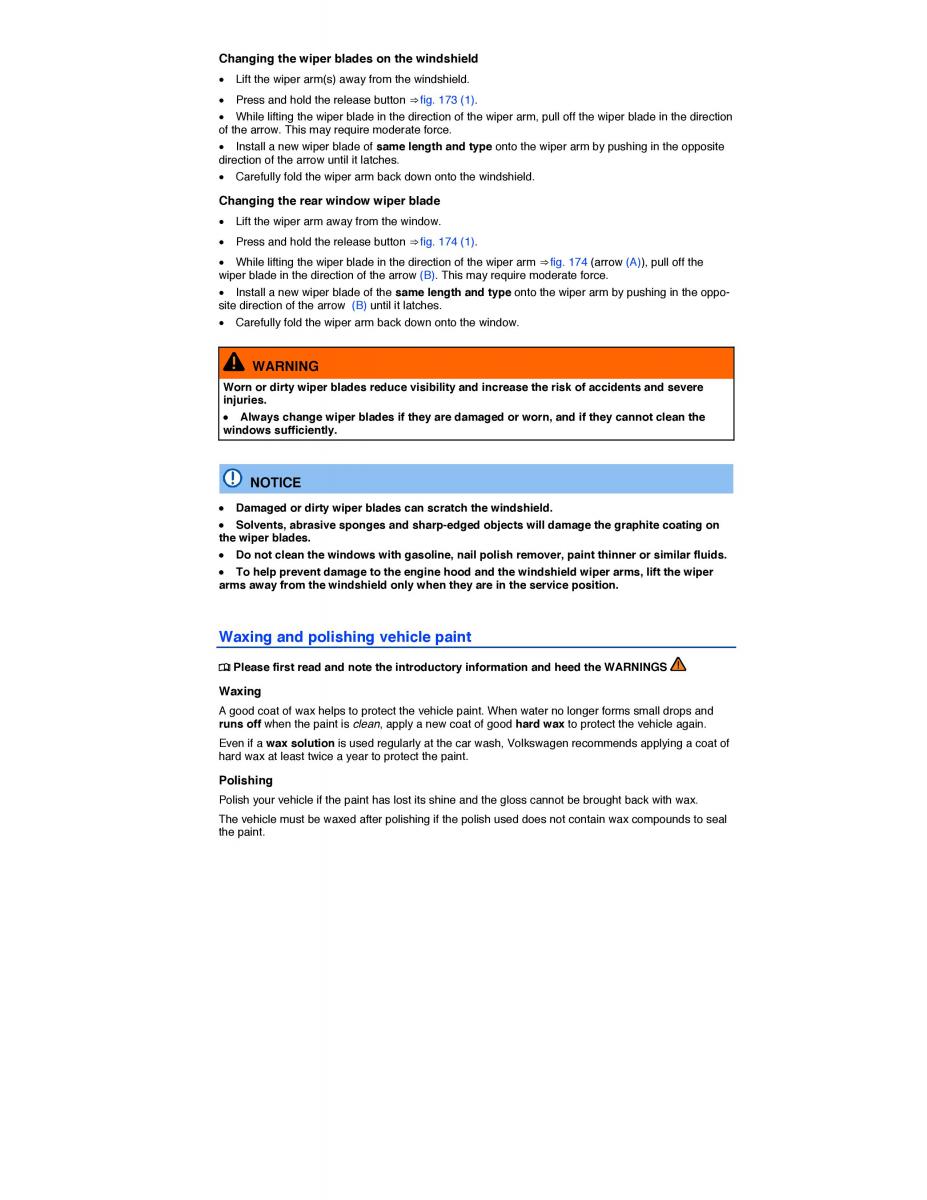

Changing the wiper blades on the windshield x Lift the wiper arm(s) away from the windshield. x Press and hold the release button⇒ fig. 173 (1). x While lifting the wiper blade in the direction of the wiper arm, pull off the wiper blade in the direioctn of the arrow. This may require moderate force. x Install a new wiper blade osamf e length and type onto the wiper arm by pushing in the opposite direction of the arrow until it latches. x Carefully fold the wiper arm back down onto the windshield. Changing the rear window wiper blade x Lift the wiper arm away from the window. x Press and hold the release button⇒ fig. 174 (1). x While lifting the wiper blade in the direction of the wiper arm⇒ fig. 174 (arrow (A)), pull off the wiper blade in the direction of the arrow (B). This may require moderate force. x Install a new wiper blade of thesa me length and type onto the wiper arm by pushing in the oppo- site direction of the arrow (B) until it latches. x Carefully fold the wiper arm back down onto the window. WARNING Worn or dirty wiper blades reduce visibility and increase the risk of accidents and severe injuries. x Always change wiper blades if they are damaged or worn, and if they cannot clean the windows sufficiently. NOTICE x Damaged or dirty wiper blades can scratch the windshield . x Solvents, abrasive sponges and sharp-edged objects will damage the graphite coating on the wiper blades. x Do not clean the windows with gasoline, nail polish remover, paint thinner or similar fluids . x To help prevent damage to the engine hood and the windshield wiper arms, lift the wiper arms away from the windshield only when they are in the service position. Waxing and polishing vehicle paint ¤ Please first read and note the introductory information and heed the WARNINGS Waxing A good coat of wax helps to protect the vehicle paint. When water no longer forms small drops and runs off when the paint is clean, apply a new coat of good hard wax to protect the vehicle again. Even if a wax solution is used regularly at the car wash, Volkswagen recommends applying a coat of hard wax at least twice a year to protect the paint. Polishing Polish your vehicle if the paint has lost its shine and the gloss cannot be brought back with wax. The vehicle must be waxed after polishing if the polish used does not contain wax compounds to seal the paint.
