4-3. Entretien à faire soi-même

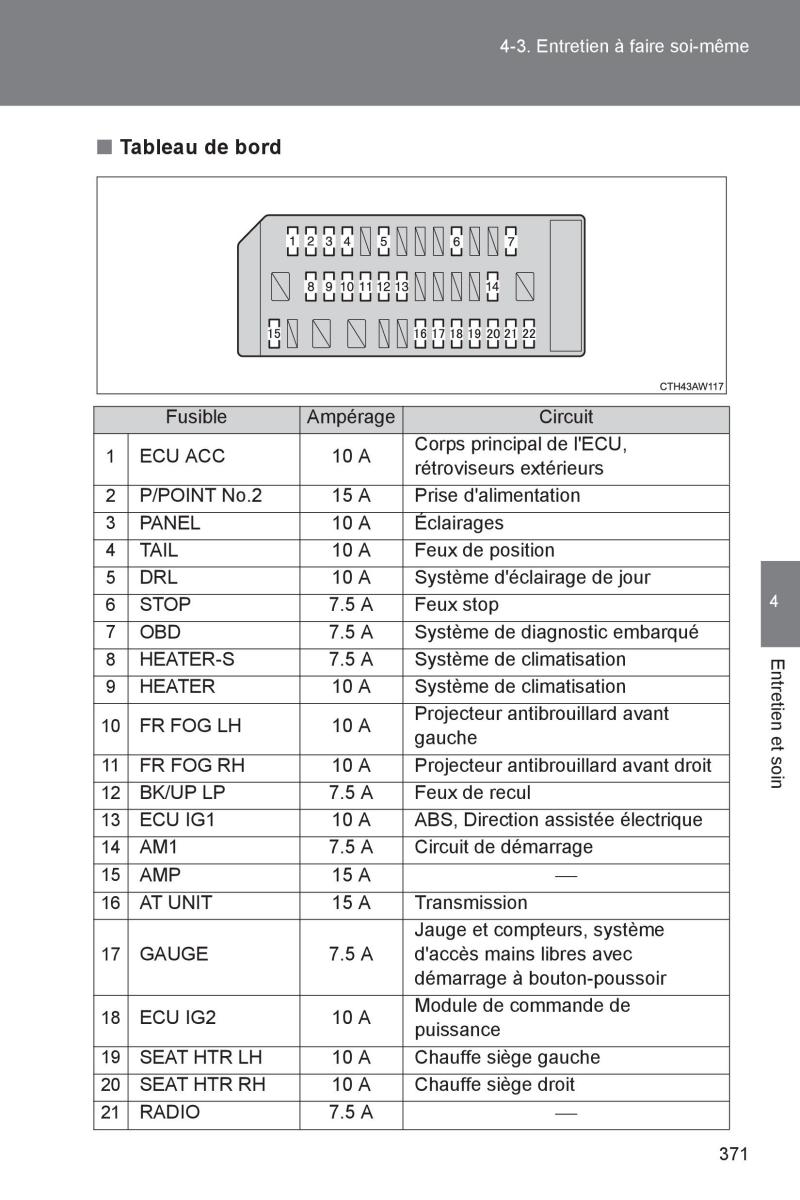

"Tableau de bord
Fusible Ampérage Circuit
1 ECU ACC 10 A Corps principal de l'ECU,
rétroviseurs extérieurs
2 P/POINT No.2 15 A Prise d'alimentation
3 PANEL 10 A Éclairages
4 TAIL 10 A Feux de position
5 DRL 10 A Système d'éclairage de jour
6 STOP 7.5 A Feux stop 4
7 OBD 7.5 A Système de diagnostic embarqué
8 HEATER-S 7.5 A Système de climatisation Ent
r
9 HEATER 10 A Système de climatisation eti
10 FR FOG LH 10 A Projecteur antibrouillard avant en
gauche et
s
11 FR FOG RH 10 A Projecteur antibrouillard avant droito
i
12 BK/UP LP 7.5 A Feux de recul n
13 ECU IG1 10 A ABS, Direction assistée électrique
14 AM1 7.5 A Circuit de démarrage
15 AMP 15 A
16 AT UNIT 15 A Transmission
Jauge et compteurs, système
17 GAUGE 7.5 A d'accès mains libres avec
démarrage à bouton-poussoir
18 ECU IG2 10 A Module de commande de
puissance
19 SEAT HTR LH 10 A Chauffe siège gauche
20 SEAT HTR RH 10 A Chauffe siège droit
21 RADIO 7.5 A
371
