text version of content this owner's manual page from owners manual to the vehicle Chevrolet Silverado, year of production 2013:

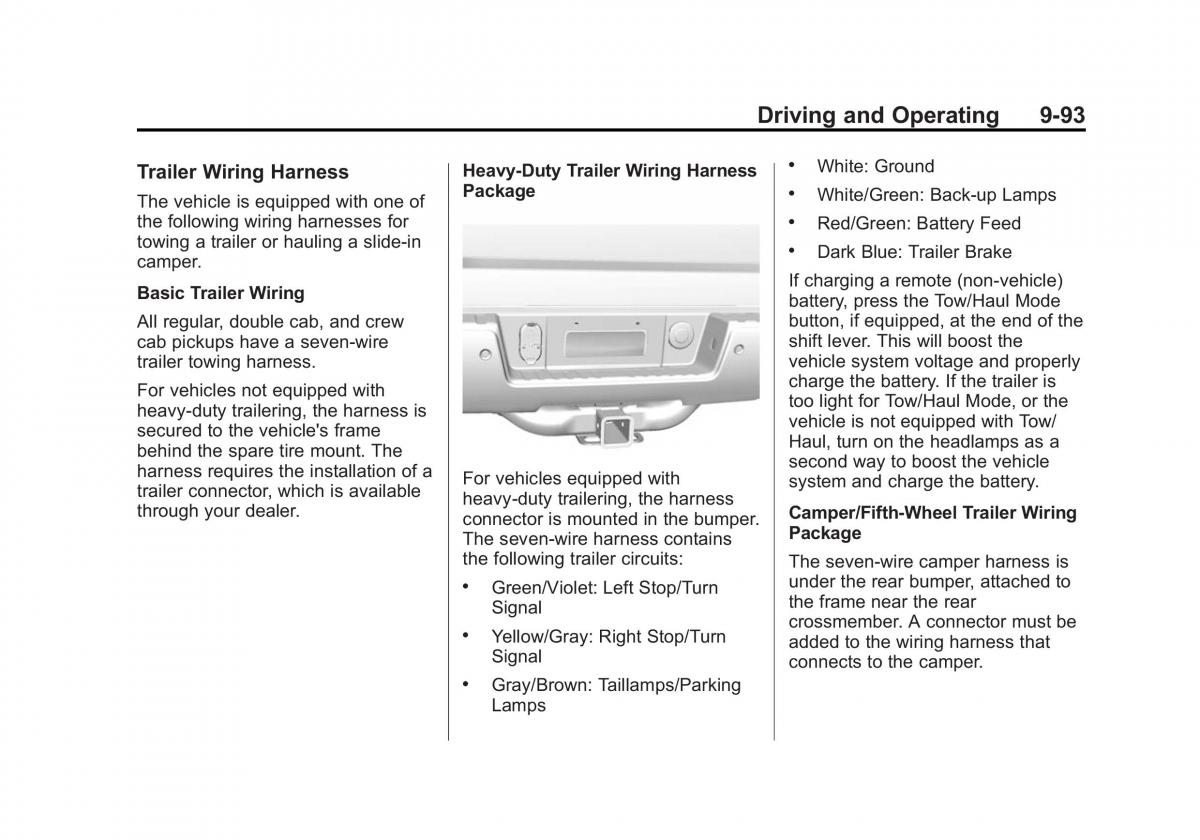

Chevrolet 2015i Silverado Owner Manual (GMNA-Localizing-U.S./Canada/ Black plate (93,1) Mexico-8425172) - 2015 - CRC - 6/20/14 Driving and Operating 9-93 Trailer Wiring Harness Heavy-Duty Trailer Wiring Harness . White: Ground The vehicle is equipped with one of Package . White/Green: Back-up Lamps the following wiring harnesses for . Red/Green: Battery Feed towing a trailer or hauling a slide-in . Dark Blue: Trailer Brake camper. Basic Trailer Wiring If charging a remote (non-vehicle) battery, press the Tow/Haul Mode All regular, double cab, and crew button, if equipped, at the end of the cab pickups have a seven-wire shift lever. This will boost the trailer towing harness. vehicle system voltage and properly For vehicles not equipped with charge the battery. If the trailer is heavy-duty trailering, the harness is too light for Tow/Haul Mode, or the secured to the vehicle's frame vehicle is not equipped with Tow/ behind the spare tire mount. The Haul, turn on the headlamps as a harness requires the installation of a second way to boost the vehicle trailer connector, which is availableFor vehicles equipped with system and charge the battery. through your dealer. heavy-duty trailering, the harness Camper/Fifth-Wheel Trailer Wiring connector is mounted in the bumper. Package The seven-wire harness contains the following trailer circuits: The seven-wire camper harness is . Green/Violet: Left Stop/Turn under the rear bumper, attached to Signal the frame near the rear crossmember. A connector must be . Yellow/Gray: Right Stop/Turn added to the wiring harness that Signal connects to the camper. . Gray/Brown: Taillamps/Parking Lamps
