text version of content this owner's manual page from owners manual to the vehicle Subaru Tribeca, year of production 2005 - 2014:

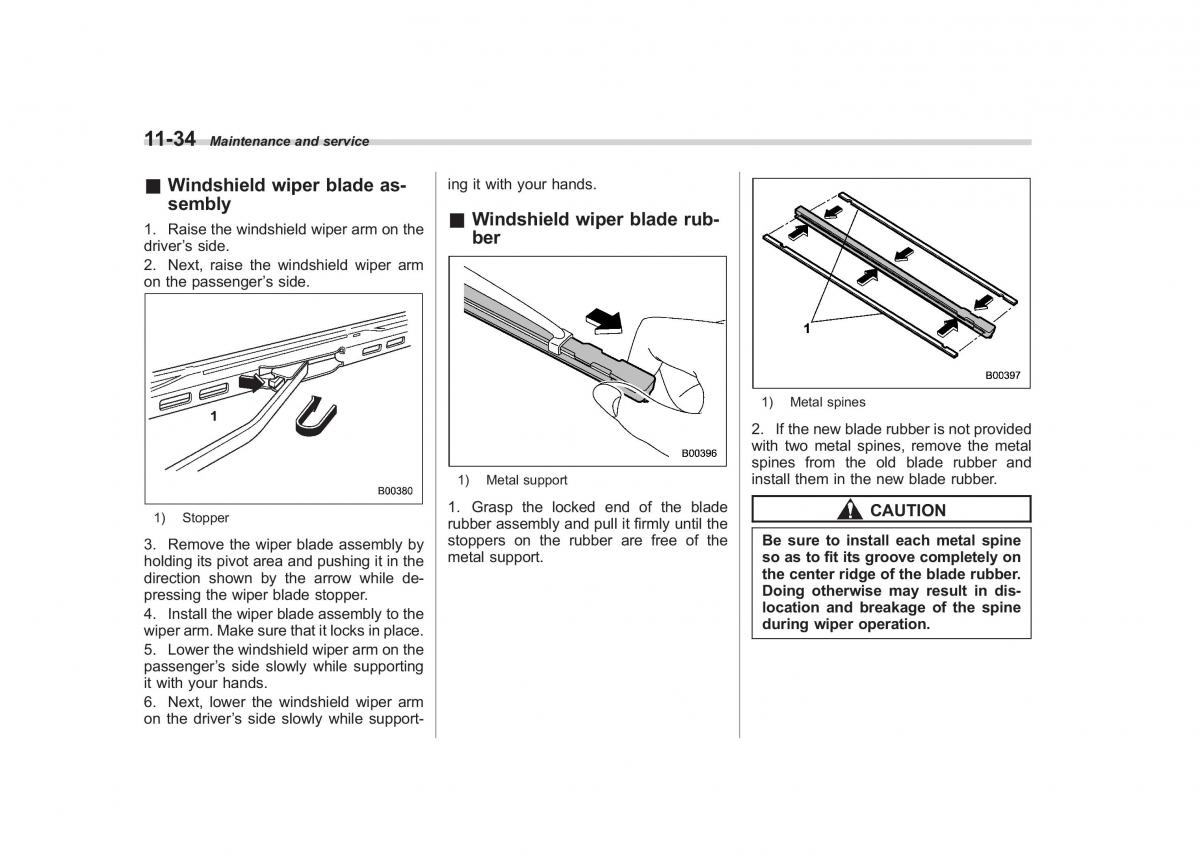

11-34 Maintenance and service &Windshield wiper blade as- ing it with your hands. sembly 1. Raise the windshield wiper arm on the&Windshield wiper blade rub- driver’s side. ber 2. Next, raise the windshield wiper arm on the passenger’s side. 1) Metal spines 2. If the new blade rubber is not provided with two metal spines, remove the metal spines from the old blade rubber and 1) Metal support install them in the new blade rubber. 1. Grasp the locked end of the blade CAUTION 1) Stopper rubber assembly and pull it firmly until the 3. Remove the wiper blade assembly bystoppers on the rubber are free of theBe sure to install each metal spine holding its pivot area and pushing it in themetal support. so as to fit its groove completely on direction shown by the arrow while de- the center ridge of the blade rubber. pressing the wiper blade stopper. Doing otherwise may result in dis- 4. Install the wiper blade assembly to the location and breakage of the spine wiper arm. Make sure that it locks in place. during wiper operation. 5. Lower the windshield wiper arm on the passenger’s side slowly while supporting it with your hands. 6. Next, lower the windshield wiper arm on the driver’s side slowly while support-
