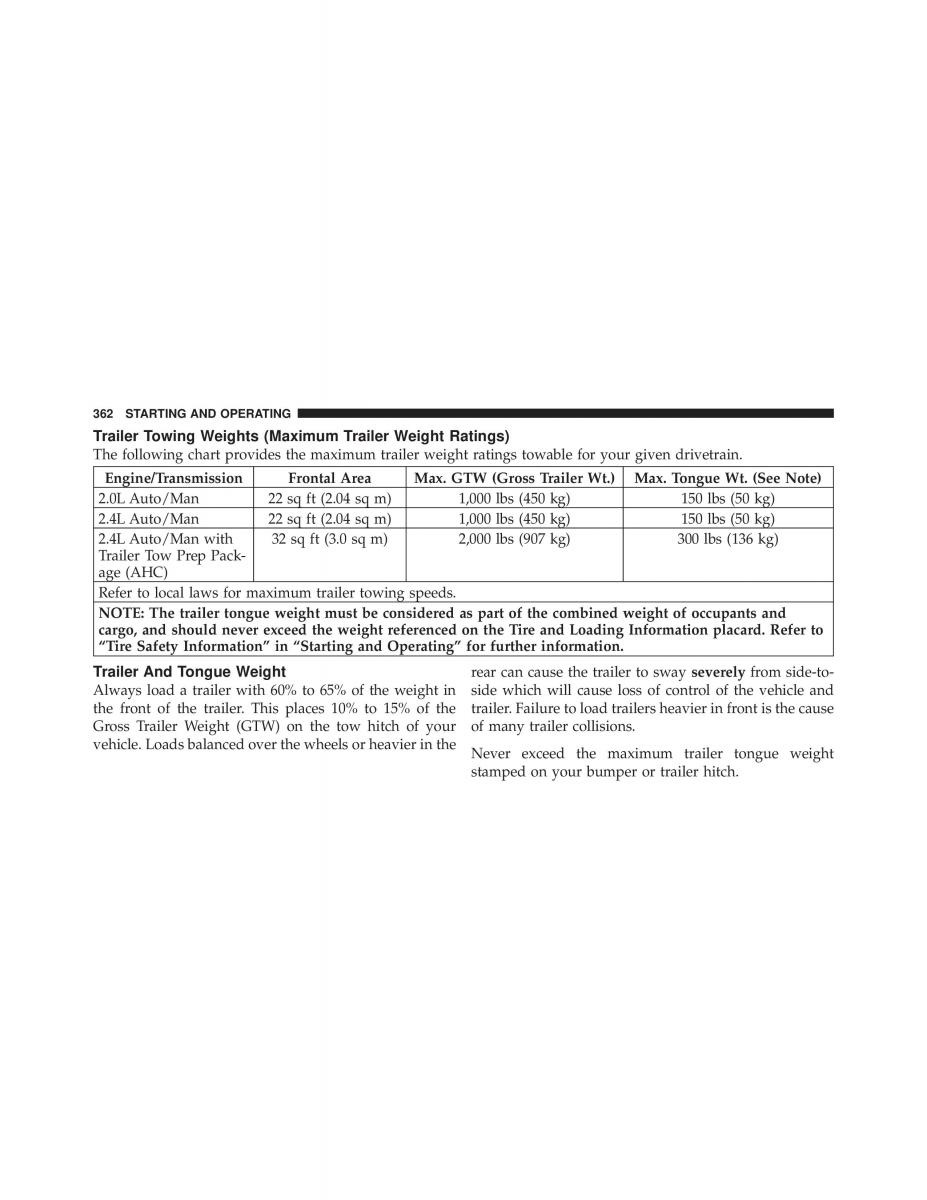

362 STARTINGANDOPERATING Trailer Towing Weights (Maximum Trailer Weight Ratings) The following chart provides the maximum trailer weight ratings towable for your given drivetrain. Engine/TransmissionFrontal AreaMax. GTW (Gross Trailer Wt.)Max. Tongue Wt. (See Note) 2.0L Auto/Man 22 sq ft (2.04 sq m)1,000 lbs (450 kg)150 lbs (50 kg) 2.4L Auto/Man 22 sq ft (2.04 sq m)1,000 lbs (450 kg)150 lbs (50 kg) 2.4L Auto/Man with32 sq ft (3.0 sq m)2,000 lbs (907 kg)300 lbs (136 kg) Trailer Tow Prep Pack- age (AHC) Refer to local laws for maximum trailer towing speeds. NOTE: The trailer tongue weight must be considered as part of the combined weight of occupants and cargo, and should never exceed the weight referenced on the Tire and Loading Information placard. Refer to “Tire Safety Information” in “Starting and Operating” for further information. Trailer And Tongue Weight rear can cause the trailer to sway severely from side-to- Always load a trailer with 60% to 65% of the weight inside which will cause loss of control of the vehicle and the front of the trailer. This places 10% to 15% of thetrailer. Failure to load trailers heavier in front is the cause Gross Trailer Weight (GTW) on the tow hitch of yourof many trailer collisions. vehicle. Loads balanced over the wheels or heavier in theNever exceed the maximum trailer tongue weight stamped on your bumper or trailer hitch.
