owners manual Subaru Outback

all ratings: 0 average rating: 5

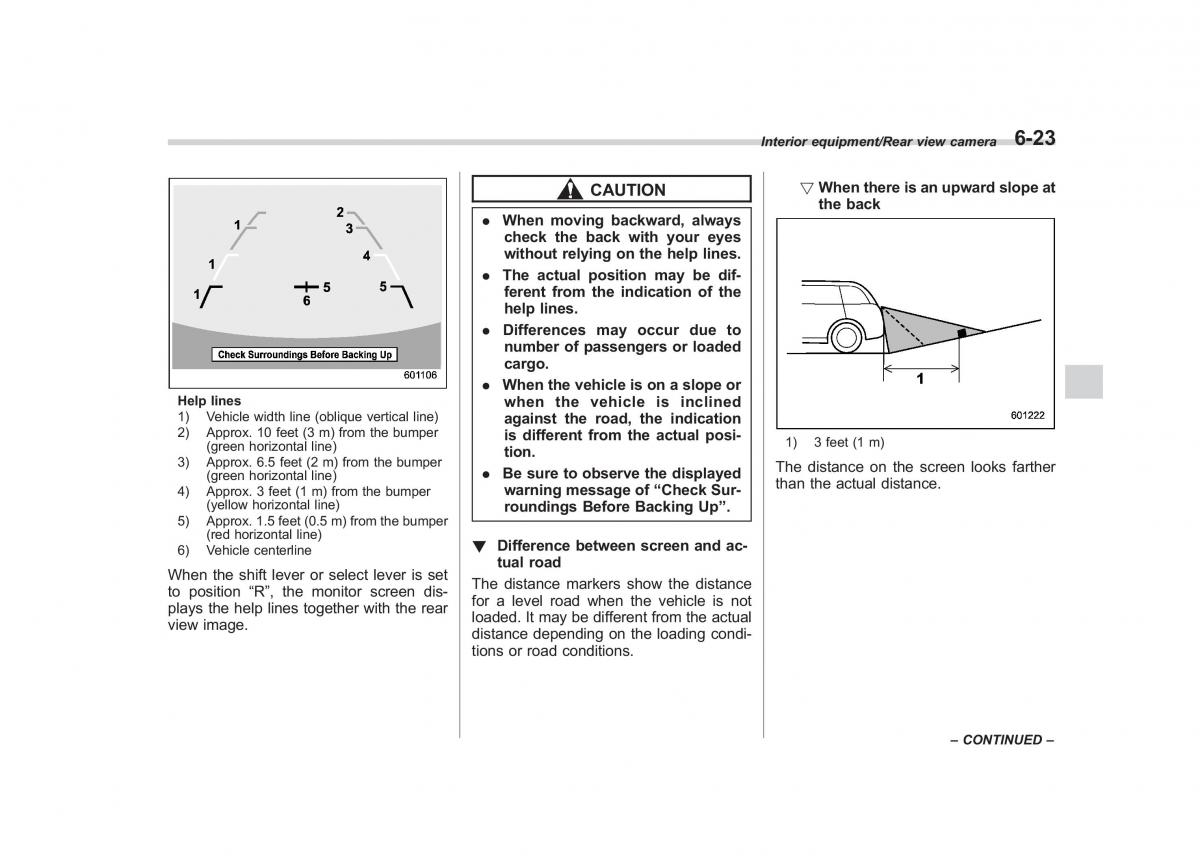

Interior equipment/Rear view camera6-23 CAUTION !Whenthereisanupwardslopeat the back . When moving backward, always check the back with your eyes without relying on the help lines. . The actual position may be dif- ferent from the indication of the help lines. . Differences may occur due to number of passengers or loaded cargo. . Whenthevehicleisonaslopeor Help lines when the vehicle is inclined 1)Vehicle width line (oblique vertical line)against the road, the indication 2)Approx. 10 feet (3 m) from the bumperis different from the actual posi- (green horizontal line) tion. 1) 3 feet (1 m) 3)Approx. 6.5 feet (2 m) from the bumper The distance on the screen looks farther (green horizontal line) . Besure to observe the displayedthan the actual distance. 4)Approx. 3 feet (1 m) from the bumperwarning message of “Check Sur- (yellow horizontal line) roundings Before Backing Up”. 5)Approx. 1.5 feet (0.5 m) from the bumper (red horizontal line) 6)Vehicle centerline ! Difference between screen and ac- tual road When the shift lever or select lever is setThe distance markers show the distance to position “R”, the monitor screen dis-for a level road when the vehicle is not plays the help lines together with the rearloaded. It may be different from the actual view image. distance depending on the loading condi- tions or road conditions. – CONTINUED –
