Instruments OperationDrivingInstrument Practical hintsCar careTechnicalIndex
and controls cluster display data

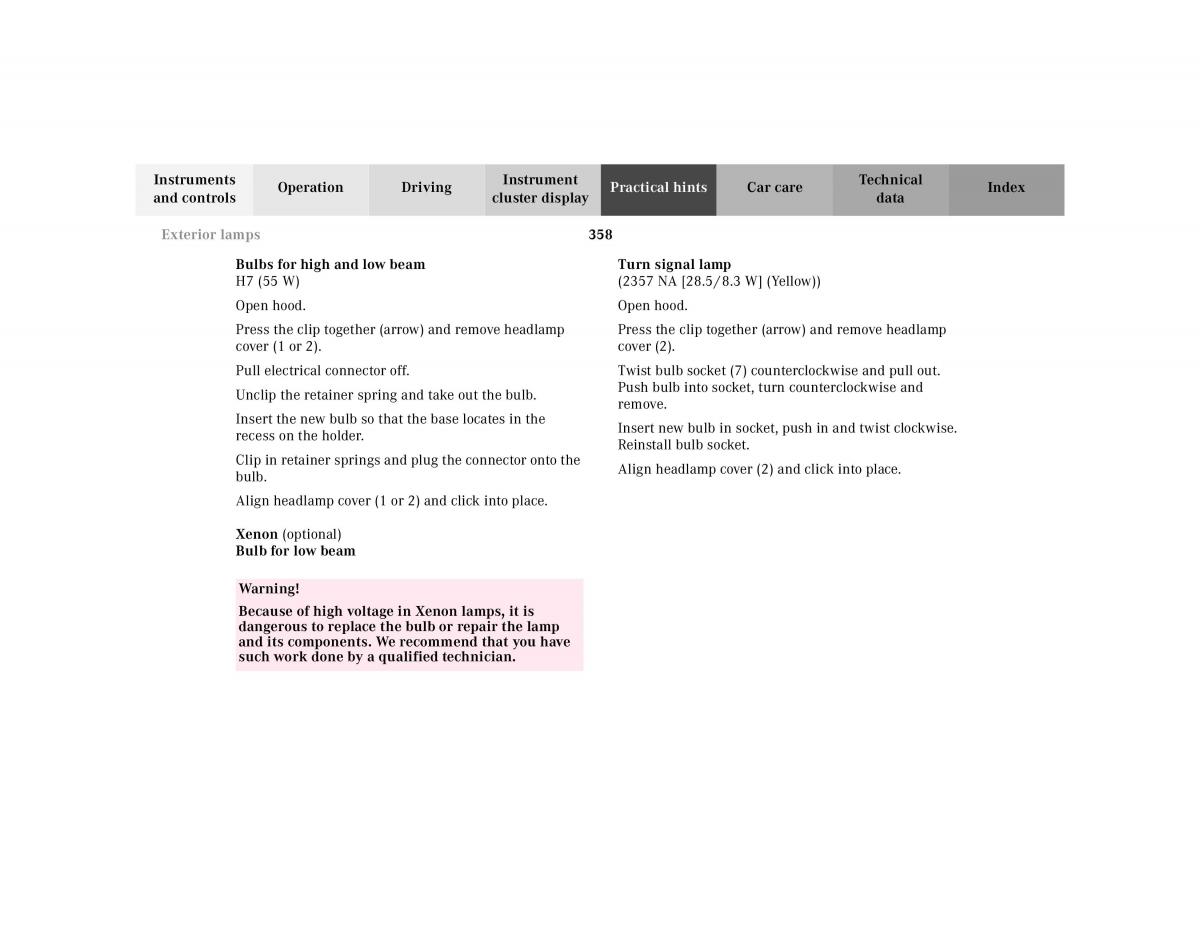

Exterior lamps 358
Bulbs for high and low beamTurn signal lamp
H7 (55 W) (2357 NA [28.5/8.3 W] (Yellow))
Open hood. Open hood.
Press the clip together (arrow) and remove headlamp Press the clip together (arrow) and remove headlamp
cover (1 or 2). cover (2).
Pull electrical connector off.Twist bulb socket (7) counterclockwise and pull out.
Unclip the retainer spring and take out the bulb.Push bulb into socket, turn counterclockwise and
remove.
Insert the new bulb so that the base locates in the Insert new bulb in socket, push in and twist clockwise.
recess on the holder. Reinstall bulb socket.
Clip in retainer springs and plug the connector onto the Align headlamp cover (2) and click into place.
bulb.
Align headlamp cover (1 or 2) and click into place.
Xenon (optional)
Bulb for low beam
Warning!
Because of high voltage in Xenon lamps, it is
dangerous to replace the bulb or repair the lamp
and its components. We recommend that you have
such work done by a qualified technician.
