text version of content this owner's manual page from owners manual to the vehicle KIA Sportage, year of production 2015:

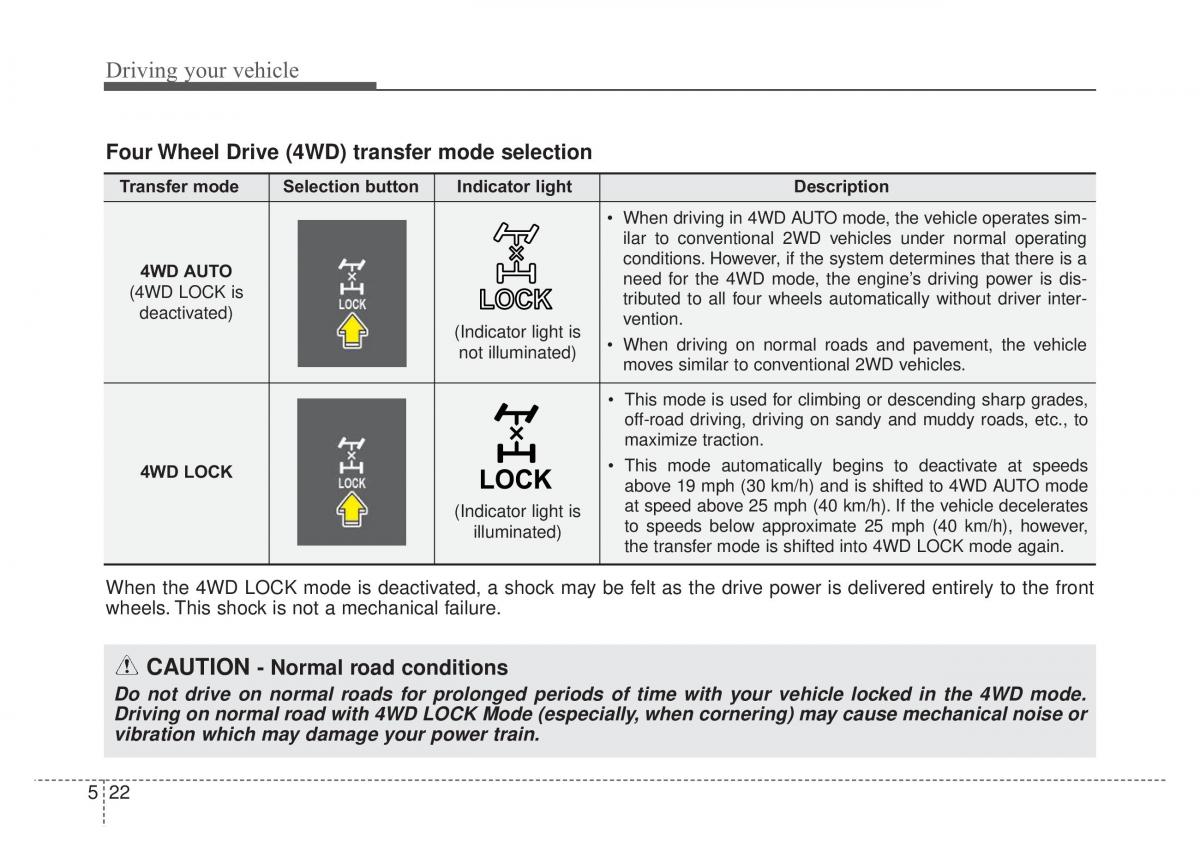

Driving your vehicle Four Wheel Drive (4WD) transfer mode selection Transfer modeSelection buttonIndicator light Description • When driving in 4WD AUTO mode, the vehicle operates sim- ilar to conventional 2WD vehicles under normal operating 4WD AUTO conditions. However, if the system determines that there is a (4WD LOCK is need for the 4WD mode, the engine’s driving power is dis- deactivated) tributed to all four wheels automatically without driver inter- (Indicator light isvention. not illuminated)• When driving on normal roads and pavement, the vehicle moves similar to conventional 2WD vehicles. • This mode is used for climbing or descending sharp grades, off-road driving, driving on sandy and muddy roads, etc., to maximize traction. 4WD LOCK • This mode automatically begins to deactivate at speeds above 19 mph (30 km/h) and is shifted to 4WD AUTO mode (Indicator light isat speed above 25 mph (40 km/h).If the vehicle decelerates illuminated)to speeds below approximate 25 mph (40 km/h), however, the transfer mode is shifted into 4WD LOCK mode again. When the 4WD LOCK mode is deactivated, a shock may be felt as the drive power is delivered entirely to the front wheels.This shock is not a mechanical failure. CAUTION- Normal road conditions Do not drive on normal roads for prolonged periods of time with your vehicle locked in the 4WD mode. Driving on normal road with 4WD LOCK Mode (especially,when cornering) may cause mechanical noise or vibration which may damage your power train. 5 22
