text version of content this owner's manual page from owners manual to the vehicle Chevrolet Suburban, year of production 2007:

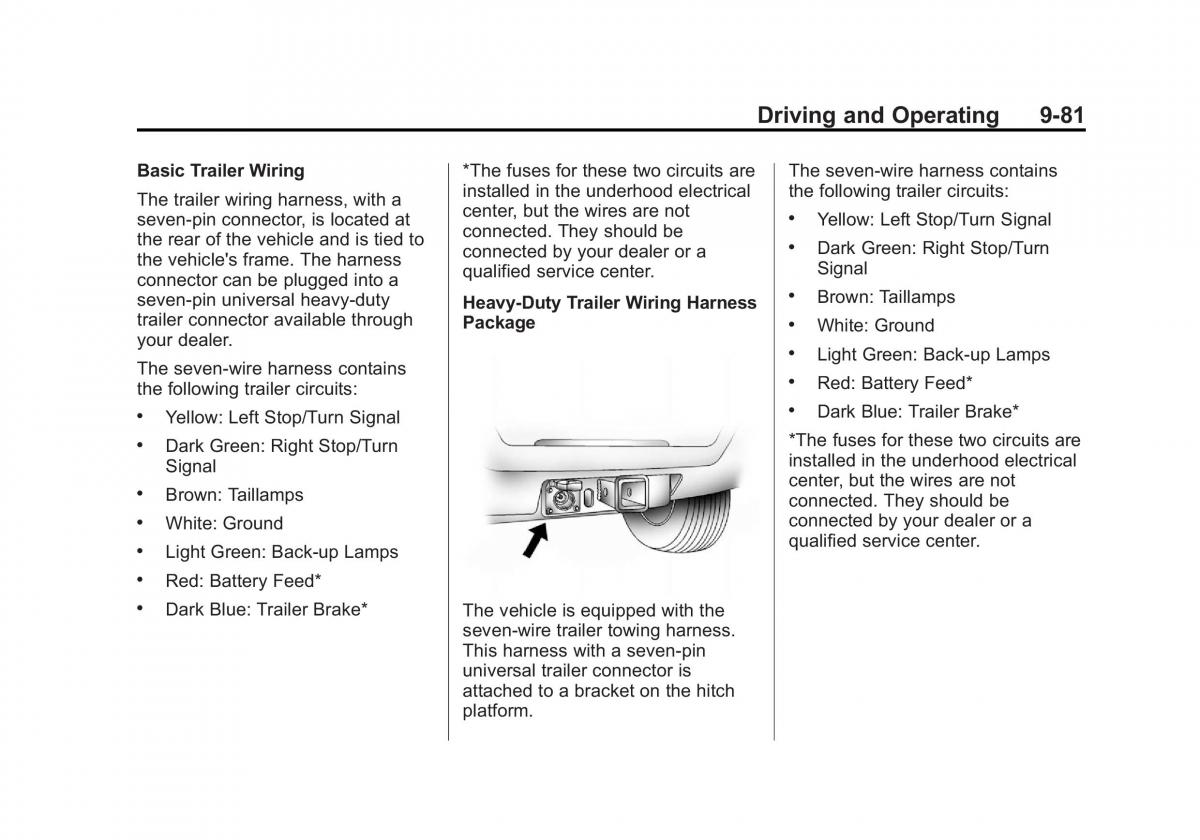

Chevrolet Tahoe/Suburban Owner Manual - 2012 - 2nd - 11/9/11 Black plate (81,1) Driving and Operating 9-81 Basic Trailer Wiring *The fuses for these two circuits are The seven-wire harness contains The trailer wiring harness, with a installed in the underhood electrical the following trailer circuits: seven-pin connector, is located at center, but the wires are not . Yellow: Left Stop/Turn Signal the rear of the vehicle and is tied toconnected. They should be the vehicle's frame. The harness connected by your dealer or a . Dark Green: Right Stop/Turn connector can be plugged into a qualified service center. Signal seven-pin universal heavy-duty Heavy-Duty Trailer Wiring Harness . Brown: Taillamps trailer connector available through Package . White: Ground your dealer. . Light Green: Back-up Lamps The seven-wire harness contains the following trailer circuits: . Red: Battery Feed* . Yellow: Left Stop/Turn Signal . Dark Blue: Trailer Brake* . Dark Green: Right Stop/Turn *The fuses for these two circuits are Signal installed in the underhood electrical center, but the wires are not . Brown: Taillamps connected. They should be . White: Ground connected by your dealer or a . Light Green: Back-up Lamps qualified service center. . Red: Battery Feed* . Dark Blue: Trailer Brake* The vehicle is equipped with the seven-wire trailer towing harness. This harness with a seven-pin universal trailer connector is attached to a bracket on the hitch platform.
