text version of content this owner's manual page from owners manual to the vehicle Volvo XC90, year of production 2015:

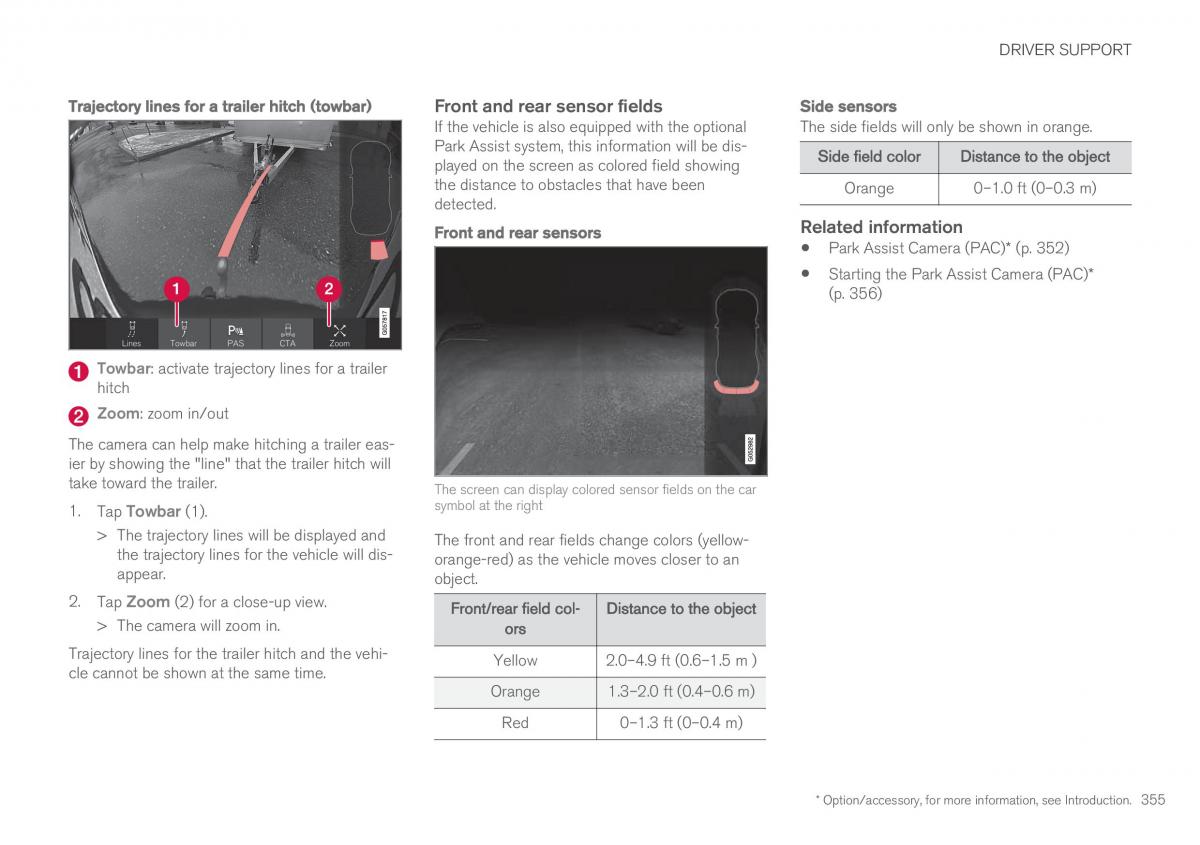

DRIVER SUPPORT Trajectory lines for a trailer hitch (towbar)Front and rear sensor fieldsSide sensors If the vehicle is also equipped with the optionalThe side fields will only be shown in orange. Park Assist system, this information will be dis-Side field colorDistance to the object played on the screen as colored field showing the distance to obstacles that have beenOrange0–1.0 ft (0–0.3 m) detected. Front and rear sensors Related information • Park Assist Camera (PAC)* (p. 352) • Starting the Park Assist Camera (PAC)* (p. 356) Towbar: activate trajectory lines for a trailer hitch Zoom: zoom in/out The camera can help make hitching a trailer eas- ier by showing the "line" that the trailer hitch will take toward the trailer. The screen can display colored sensor fields on the car 1.Tap Towbar (1). symbol at the right > The trajectory lines will be displayed andThe front and rear fields change colors (yellow- the trajectory lines for the vehicle will dis-orange-red) as the vehicle moves closer to an appear. object. 2.Tap Zoom (2) for a close-up view.Front/rear field col-Distance to the object > The camera will zoom in. ors Trajectory lines for the trailer hitch and the vehi-Yellow2.0–4.9 ft (0.6–1.5 m ) cle cannot be shown at the same time. Orange 1.3–2.0 ft (0.4–0.6 m) Red 0–1.3 ft (0–0.4 m) * Option/accessory, for more information, see Introduction. 355
