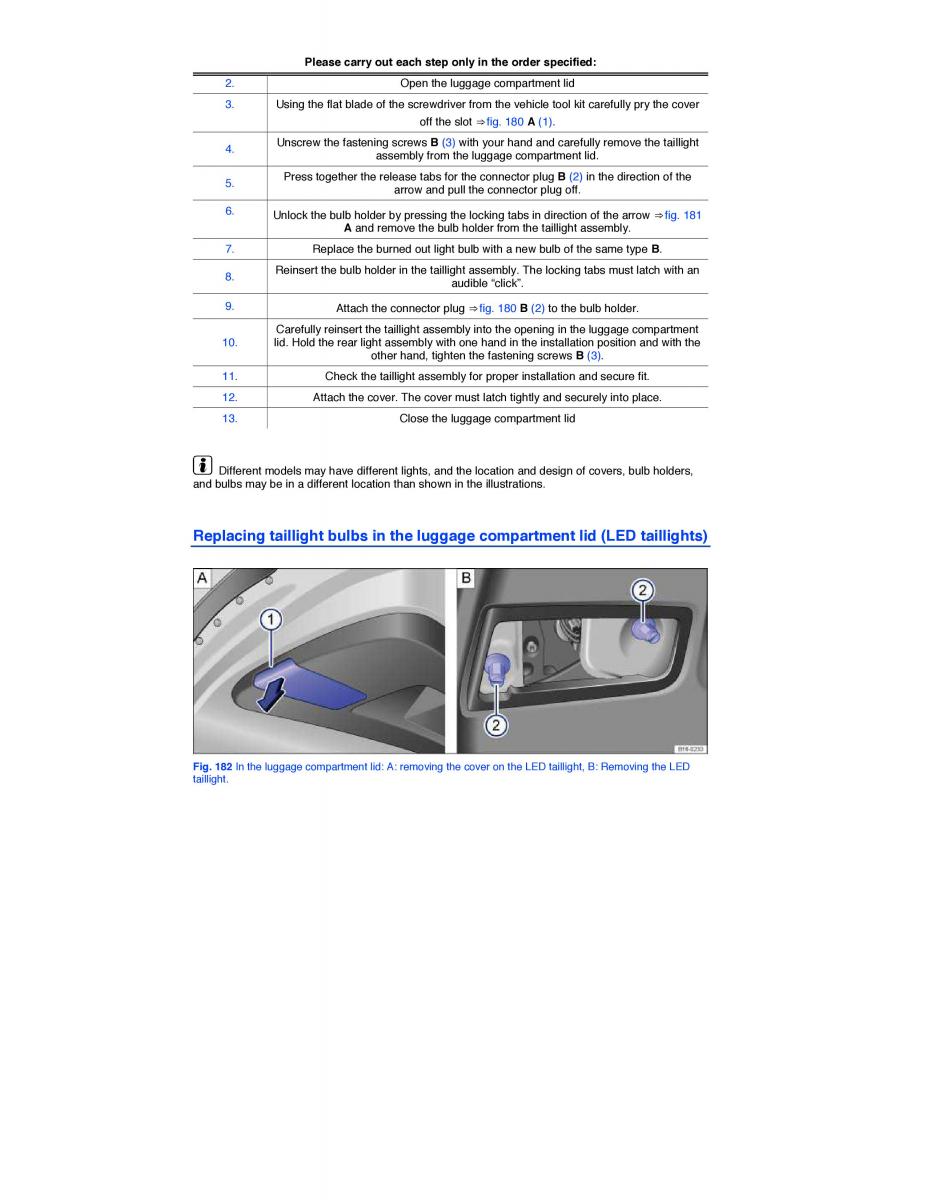

Please carry out each step only in the order specified: 2. Open the luggage compartment lid 3. Using the flat blade of the screwdriver from the vehicle tool kit carefully pry the cover off the slot ⇒ fig. 180 A (1). 4. Unscrew the fastening screws B (3) with your hand and carefully remove the taillight assembly from the luggage compartment lid. 5. Press together the release tabs for the connector plug B (2) in the direction of the arrow and pull the connector plug off. 6. Unlock the bulb holder by pressing the locking tabs in direction of the arrow ⇒ fig. 181 A and remove the bulb holder from the taillight assembly. 7. Replace the burned out light bulb with a new bulb of the same type B. 8. Reinsert the bulb holder in the taillight assembly. The locking tabs must latch with an audible “click”. 9. Attach the connector plug ⇒ fig. 180 B (2) to the bulb holder. Carefully reinsert the taillight assembly into the opening in the luggage compartment 10. lid. Hold the rear light assembly with one hand in the installation position and with the other hand, tighten the fastening screws B (3). 11. Check the taillight assembly for proper installation and secure fit. 12. Attach the cover. The cover must latch tightly and securely into place. 13. Close the luggage compartment lid Different models may have different lights, and the location and design of covers, bulb holders, and bulbs may be in a different location than shown in the illustrations. Replacing taillight bulbs in the luggage compartment lid (LED taillights) Fig. 182 In the luggage compartment lid: A: removing the cover on the LED taillight, B: Removing the LED taillight.
