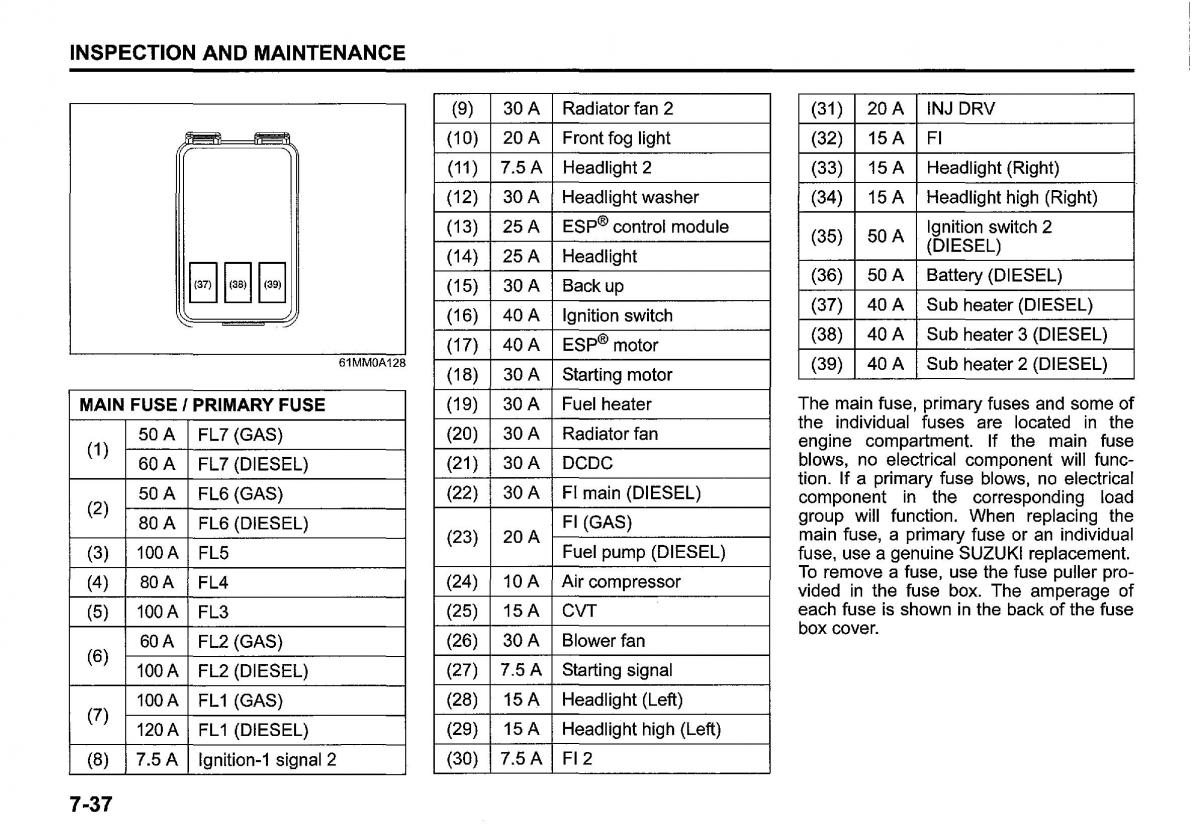

INSPECTION AND MAINTENANCE (9) 30A Radiator fan 2 (31 ) 20A INJ DRV (10) 20A Front fog light (32) 15 A FI (11 ) 7.5A Headlight 2 (33) 15 A Headlight (Right) (12) 30A Headlight washer (34) 15 A Headlight high (Right) (13) 25A ESP® control module (35) 50A Ignition switch 2 (14) 25A Headlight (DIESEL) (15) 30A Back up (36) 50A Battery (DIESEL) (16) 40A Ignition switch (37) 40A Sub heater (DIESEL) (17) 40A ESP® motor (38) 40A Sub heater 3 (DIESEL) 61MMOA128 (18) 30A Starting motor (39) 40A Sub heater 2 (DIESEL) MAIN FUSE I PRIMARY FUSE (19) 30A Fuel heater The main fuse, primary fuses and some of 50A FL7 (GAS) (20) 30A Radiator fan the individual fuses are located in the (1 ) engine compartment. If the main fuse 60A FL7 (DIESEL) (21 ) 30A DCDC blows, no electrical component will func- 50A FL6 (GAS) (22) 30A FI main (DIESEL) tion. If a primary fuse blows, no electrical (2) component in the corresponding load 80A FL6 (DIESEL) FI (GAS) group will function. When replacing the (23) 20A Fuel pump (DIESEL) main fuse, a primary fuse or an individual (3) 100A FL5 fuse, use a genuine SUZUKI replacement. (4) 80A FL4 (24) 10 A Air compressor To remove a fuse, use the fuse puller pro- vided in the fuse box. The amperage of (5) 100A FL3 (25) 15A CVT each fuse is shown in the back of the fuse 60A FL2 (GAS) (26) 30A Blower fan box cover. (6) 100A FL2 (DIESEL) (27) 7.5A Starting signal (7) 100A FL 1 (GAS) (28) 15 A Headlight (Left) 120A FL 1 (DIESEL) (29) 15 A Headlight high (Left) (8) 7.5A Ignition-1 signal 2 (30) 7.5A FI2 7-37
