text version of content this owner's manual page from owners manual to the vehicle Toyota Auris Hybrid, year of production 2007 - 2012:

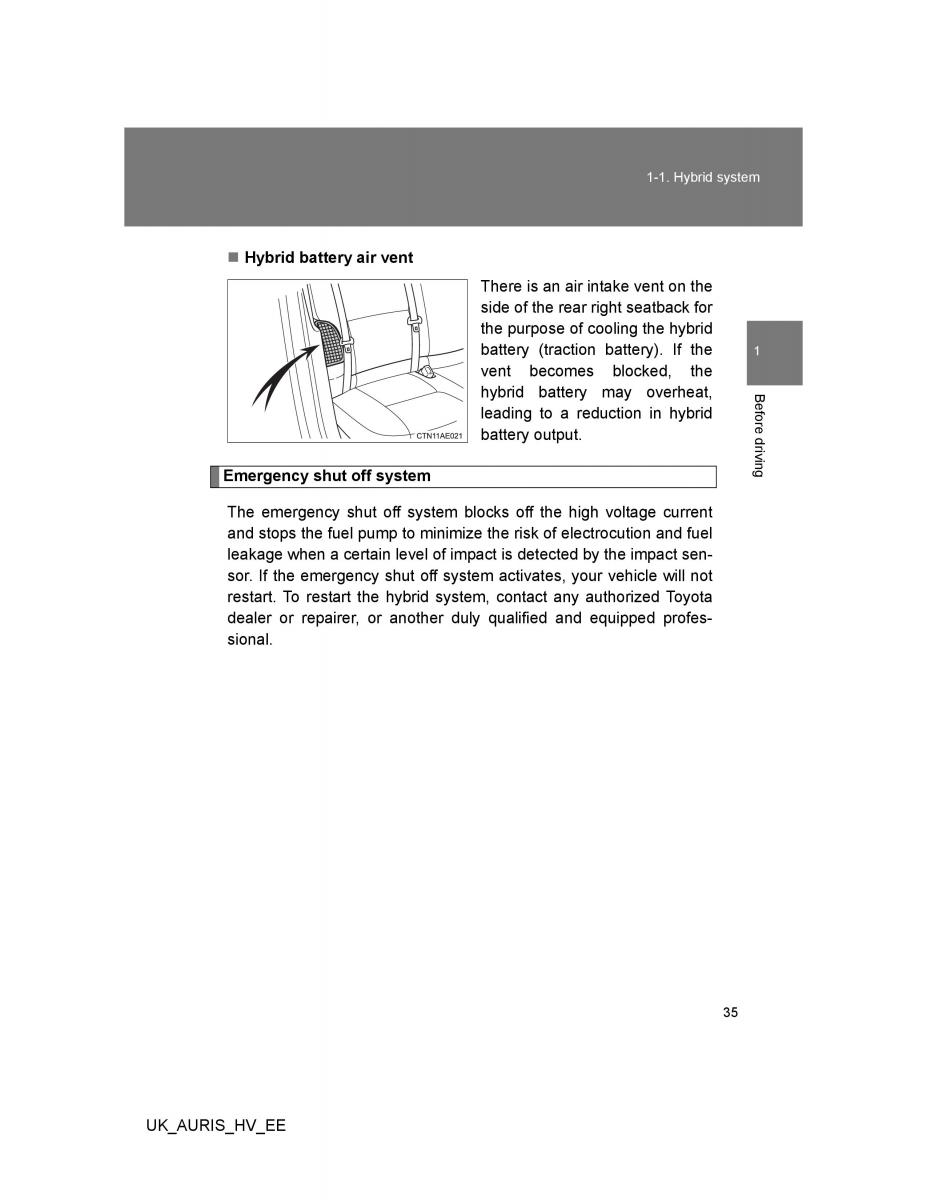

1-1. Hybrid system Hybrid battery air vent There is an air intake vent on the side of the rear right seatback for the purpose of cooling the hybrid battery (traction battery). If the1 vent becomes blocked, the Be hybrid battery may overheat, leading to a reduction in hybridfo re battery output. d r iv in Emergency shut off system g The emergency shut off system blocks off the high voltage current and stops the fuel pump to minimize the risk of electrocution and fuel leakage when a certain level of impact is detected by the impact sen- sor. If the emergency hut ofsf system activates, your vehicle will not restart. To restart the hybrid system, contact any authorized Toyota dealer or repairer, or another duly qualified and equipped profes- sional. 35 UK_AURIS_HV_EE
