text version of content this owner's manual page from owners manual to the vehicle Mazda MX-5, year of production 2005 - 2014:

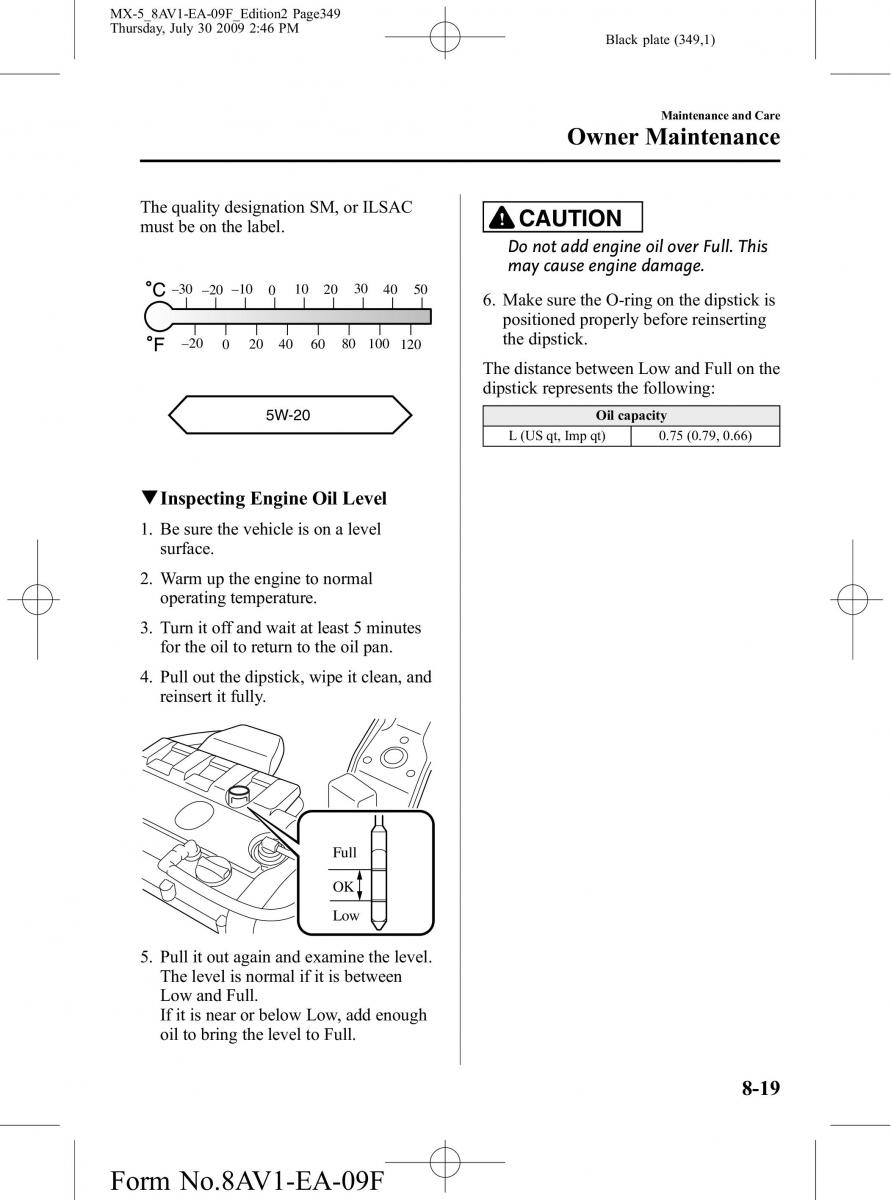

MX-5_8AV1-EA-09F_Edition2 Page349 Thursday, July 30 2009 2:46 PM Black plate (349,1) Maintenance and Care OwnerMaintenance Thequality designation SM, or ILSAC CAUTION must be on the label. DonotaddengineoiloverFull. This maycauseenginedamage. –30 –20 –100 10 20 30 40 50 6. Make sure the O-ring on the dipstick is positioned properly before reinserting –20 0 20 40 60 80 100 120 the dipstick. Thedistance between Low and Full on the dipstick represents the following: 5W-20 Oil capacity L(USqt,Impqt) 0.75 (0.79, 0.66) qInspecting Engine Oil Level 1. Be sure the vehicle is on a level surface. 2. Warm up the engine to normal operating temperature. 3. Turn it off and wait at least 5 minutes for the oil to return to the oil pan. 4. Pull out the dipstick, wipe it clean, and reinsert it fully. Full OK Low 5. Pull it out again and examine the level. Thelevel is normal if it is between LowandFull. If it is near or below Low, add enough oil to bring the level to Full. 8-19 Form No.8AV1-EA-09F
