owners manual KIA Sportage

owners manual KIA Sportage - year of production: 2016 - KIA Sportage IV 4 owners manual EN

Document: pdf (15.01 MB) 602 pages

all ratings: 0 average rating: 5

text version of content this owner's manual page from owners manual to the vehicle KIA Sportage, year of production 2016:

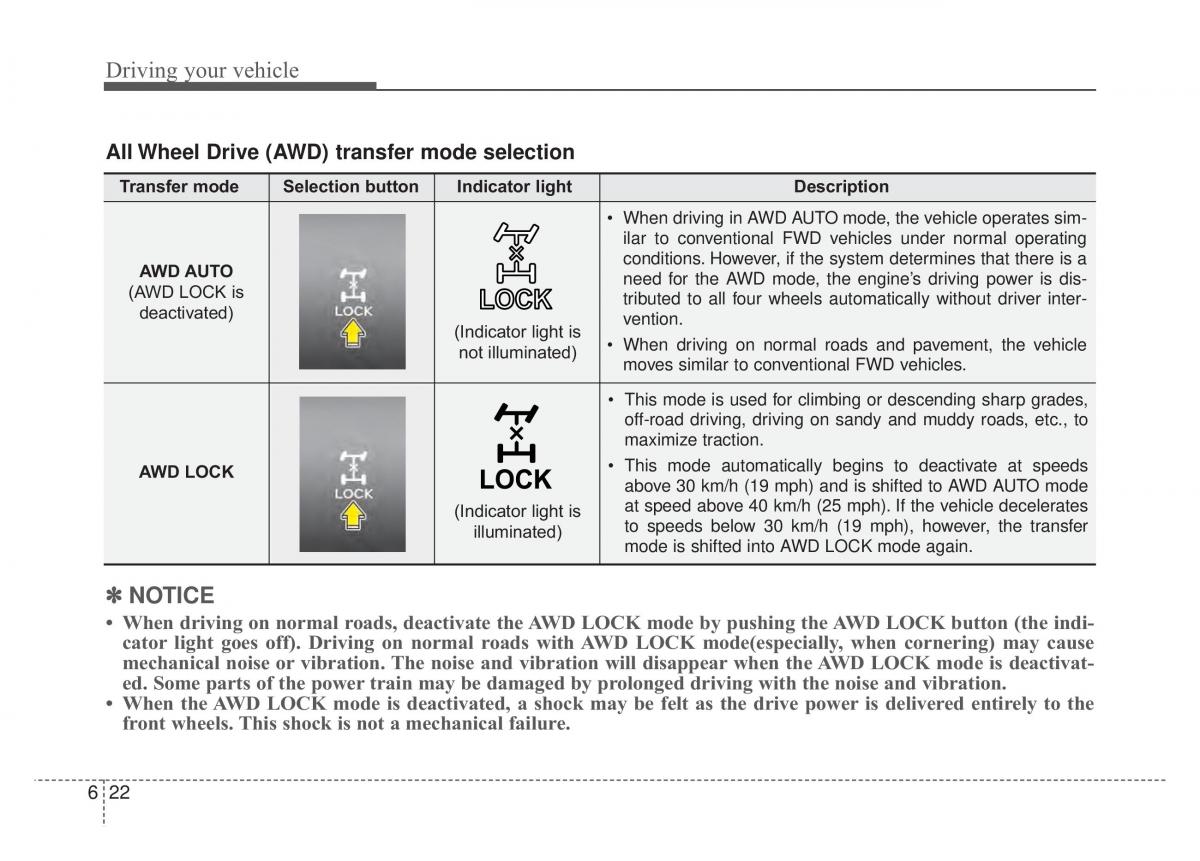

Driving your vehicle All Wheel Drive (AWD) transfer mode selection Transfer modeSelection buttonIndicator light Description • When driving in AWD AUTO mode, the vehicle operates sim- ilar to conventional FWD vehicles under normal operating AWD AUTO conditions. However, if the system determines that there is a (AWD LOCK is need for the AWD mode, the engine’s driving power is dis- deactivated) tributed to all four wheels automatically without driver inter- (Indicator light isvention. not illuminated)• When driving on normal roads and pavement, the vehicle moves similar to conventional FWD vehicles. • This mode is used for climbing or descending sharp grades, off-road driving, driving on sandy and muddy roads, etc., to maximize traction. AWD LOCK • This mode automatically begins to deactivate at speeds above 30 km/h (19 mph) and is shifted to AWD AUTO mode (Indicator light isat speed above 40 km/h (25 mph).If the vehicle decelerates illuminated)to speeds below 30 km/h (19 mph), however, the transfer mode is shifted into AWD LOCK mode again. ✽✽ NOTICE • When driving on normal roads, deactivate the AWD LOCK mode by pushing the AWD LOCK button (the indi- cator light goes off). Driving on normal roads with AWD LOCK mode(especially, when cornering) may cause mechanical noise or vibration. The noise and vibration will disappear when the AWD LOCK mode is deactivat- ed. Some parts of the power train may be damaged by prolonged driving with the noise and vibration. • When the AWD LOCK mode is deactivated, a shock may be felt as the drive poweris delivered entirely to the front wheels. This shock is not a mechanical failure. 6 22
