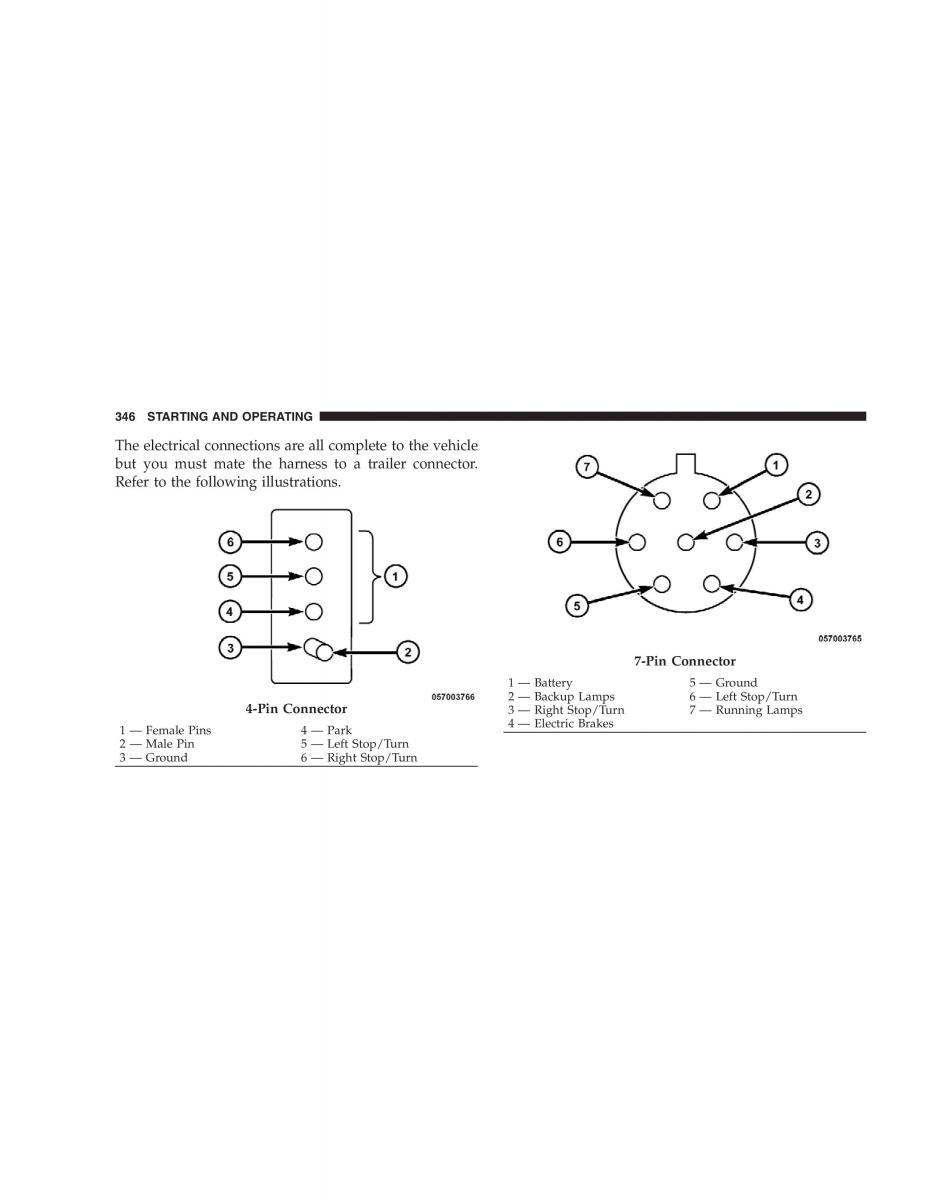

346 STARTINGANDOPERATING The electrical connections are all complete to the vehicle but you must mate the harness to a trailer connector. Refer to the following illustrations. 7-Pin Connector 1 — Battery 5 — Ground 2 — Backup Lamps6 — Left Stop/Turn 4-Pin Connector 3 — Right Stop/Turn7 — Running Lamps 1 — Female Pins 4 — Park 4 — Electric Brakes 2 — Male Pin 5 — Left Stop/Turn 3 — Ground 6 — Right Stop/Turn
