owners manual Suzuki SX4 S-Cross

all ratings: 0 average rating: 5

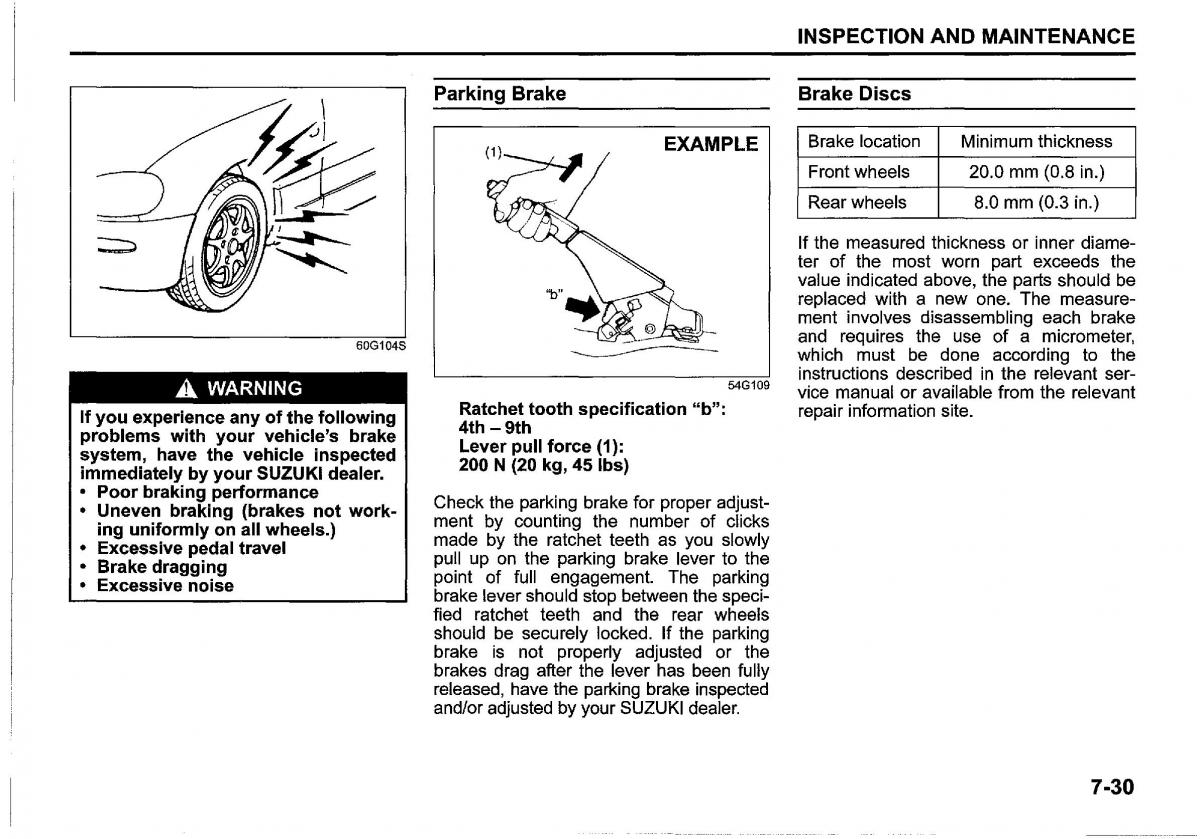

INSPECTION AND MAINTENANCE Parking Brake Brake Discs EXAMPLE Brake location Minimum thickness Front wheels 20.0 mm (0.8 in.) Rear wheels 8.0 mm (0.3 in.) If the measured thickness or inner diame- ter of the most worn part exceeds the value indicated above, the parts should be replaced with a new one. The measure- ment involves disassembling each brake and requires the use of a micrometer which must be done according to A WARNING 54G109 If you experience any of the following Ratchet tooth specification "b": problems with your vehicle's brake 4th-9th system, have the vehicle inspected Lever pull force (1): immediately by your SUZUKI dealer. 200 N (20 kg, 45 Ibs) • Poor braking performance Check the parking brake for proper adjust- • Uneven braking (brakes not work- ment by counting the number of clicks ing uniformly on all wheels.) made by the ratchet teeth as you slowly • Excessive pedal travel pull up on the parking brake lever to the • Brake dragging point of full engagement. The parking • Excessive noise brake lever should stop between the speci- fied ratchet teeth and the rear wheels should be securely locked. If the parking brake is not properly adjusted or the brakes drag after the lever has been fully released, have the parking brake inspected and/or adjusted by your SUZUKI dealer.
